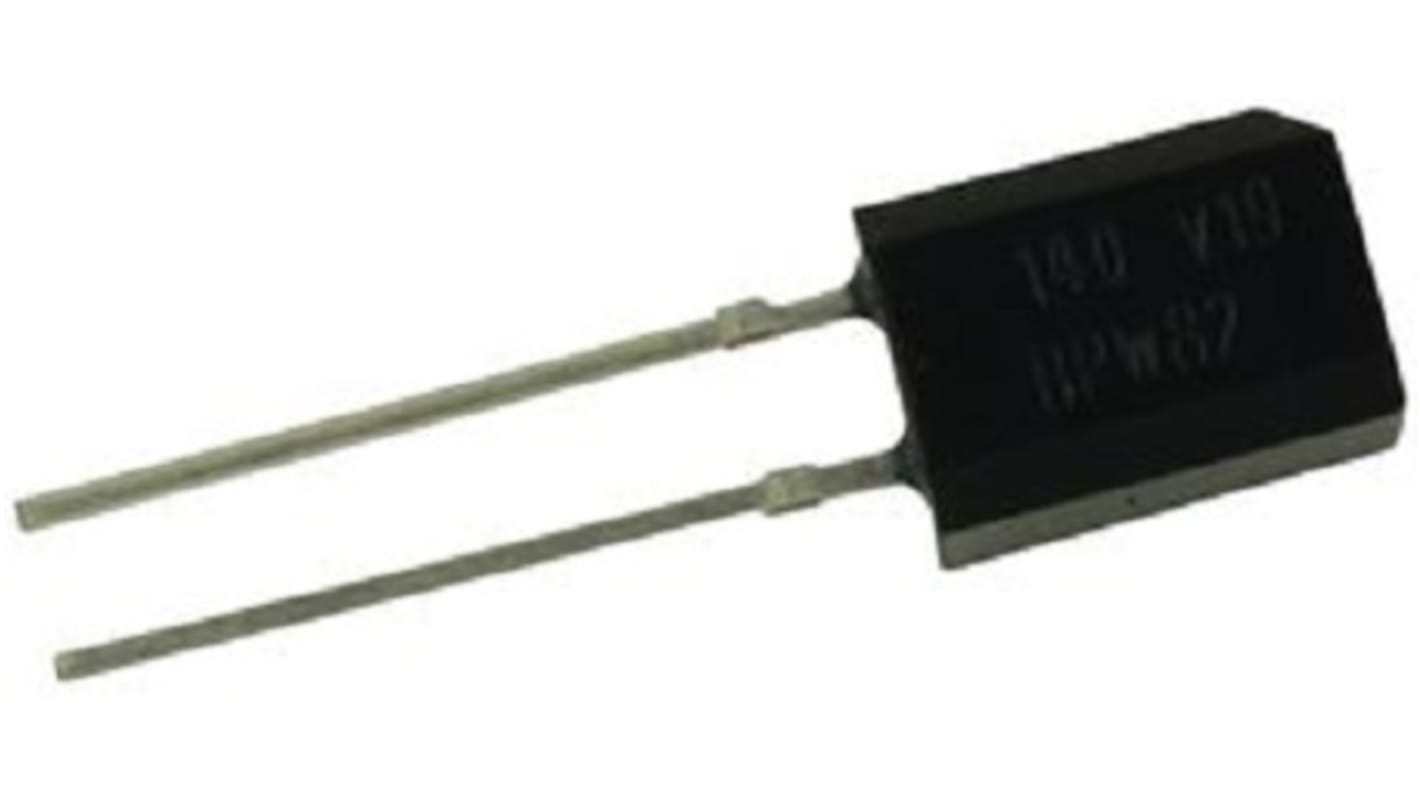

Vishay Infrared Silicon PIN Photodiode, ±65 °, Through Hole Leaded
- RS Stock No.:
- 244-4683P
- Mfr. Part No.:
- BPW82
- Brand:
- Vishay
Bulk discount available
Subtotal 10 units (supplied in a bag)*
£8.70
(exc. VAT)
£10.40
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 3,850 unit(s), ready to ship
Units | Per unit |
|---|---|
| 10 - 24 | £0.87 |
| 25 - 49 | £0.83 |
| 50 - 99 | £0.78 |
| 100 + | £0.74 |
*price indicative
- RS Stock No.:
- 244-4683P
- Mfr. Part No.:
- BPW82
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Silicon PIN Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | Leaded | |
| Mount Type | Through Hole | |
| Packaging | Leaded | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 790nm | |
| Maximum Wavelength Detected | 1050nm | |
| Typical Fall Time | 100ns | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Width | 4mm | |
| Height | 6.8mm | |
| Angle of Half Sensitivity | ±65 ° | |
| Automotive Standard | No | |
| Typical Rise Time | 100ns | |
| Open Circuit Voltage | 350mV | |
| Breakdown Voltage | 60V | |
| Series | BPW82 | |
| Dark Current | 30nA | |
| Short Circuit Current | 38μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Silicon PIN Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type Leaded | ||
Mount Type Through Hole | ||
Packaging Leaded | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 790nm | ||
Maximum Wavelength Detected 1050nm | ||
Typical Fall Time 100ns | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Length 5mm | ||
Standards/Approvals No | ||
Width 4mm | ||
Height 6.8mm | ||
Angle of Half Sensitivity ±65 ° | ||
Automotive Standard No | ||
Typical Rise Time 100ns | ||
Open Circuit Voltage 350mV | ||
Breakdown Voltage 60V | ||
Series BPW82 | ||
Dark Current 30nA | ||
Short Circuit Current 38μA | ||
The Vishay PIN photodiode with high speed and high radian sensitivity in a black, side view plastic package with daylight blocking filter. Filter bandwidth is matched with 870 nm to 950 nm IR emitters
Fast response times
