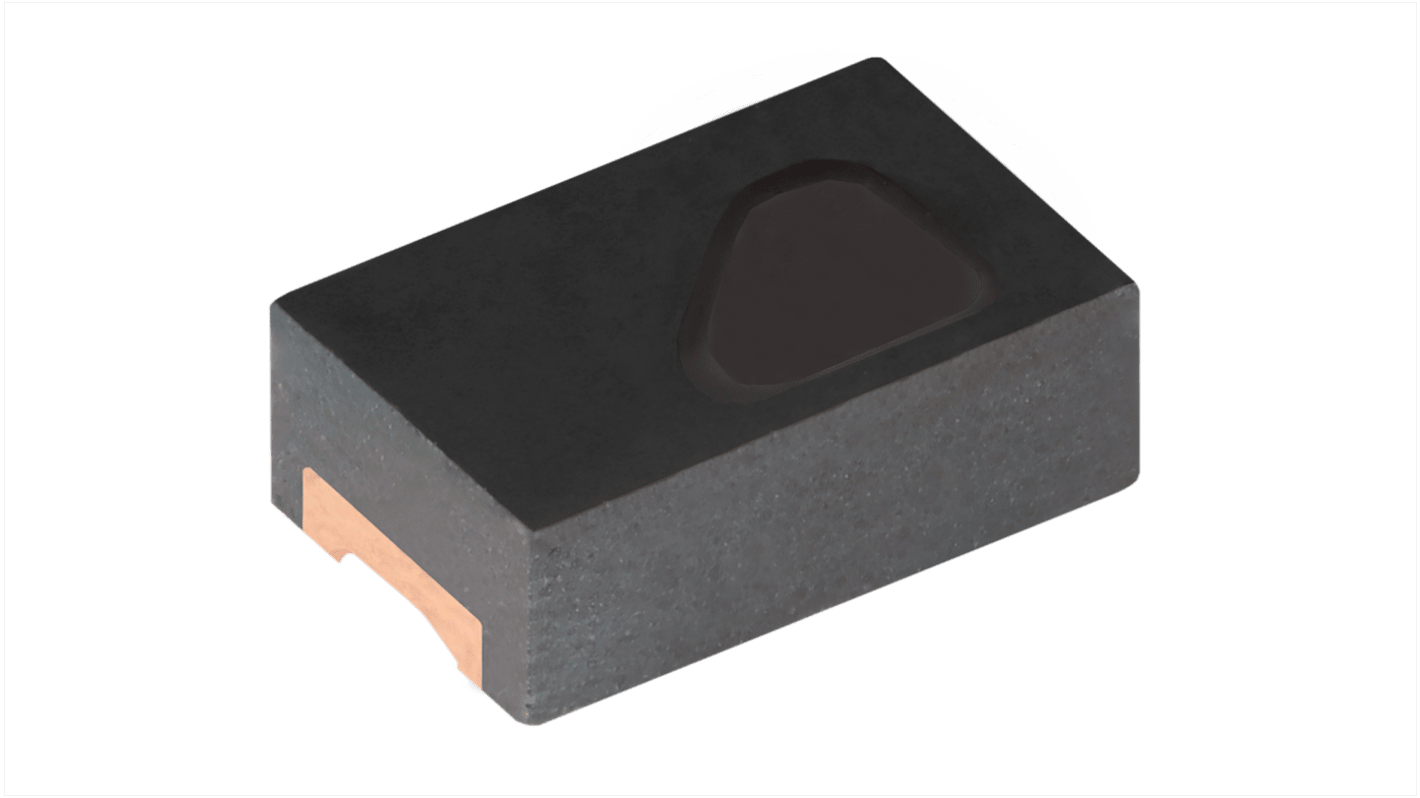

Vishay VEMD4080X02 Visible Light PIN Photodiode, ±57 °, Surface 0805
- RS Stock No.:
- 277-485
- Mfr. Part No.:
- VEMD4080X02
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£741.00
(exc. VAT)
£888.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.247 | £741.00 |
*price indicative
- RS Stock No.:
- 277-485
- Mfr. Part No.:
- VEMD4080X02
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | PIN Photodiode | |
| Spectrums Detected | Visible Light | |
| Wavelength of Peak Sensitivity | 870nm | |
| Package Type | 0805 | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 480nm | |
| Maximum Wavelength Detected | 1030nm | |
| Typical Fall Time | 260ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 1.25mm | |
| Length | 2mm | |
| Standards/Approvals | AEC-Q102, RoHS | |
| Height | 0.7mm | |
| Angle of Half Sensitivity | ±57 ° | |
| Automotive Standard | AEC-Q102 | |
| Typical Rise Time | 340ns | |
| Short Circuit Current | 2.4μA | |
| Breakdown Voltage | 20V | |
| Dark Current | 3nA | |
| Series | VEMD | |
| Open Circuit Voltage | 312mV | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type PIN Photodiode | ||
Spectrums Detected Visible Light | ||
Wavelength of Peak Sensitivity 870nm | ||
Package Type 0805 | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 480nm | ||
Maximum Wavelength Detected 1030nm | ||
Typical Fall Time 260ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 1.25mm | ||
Length 2mm | ||
Standards/Approvals AEC-Q102, RoHS | ||
Height 0.7mm | ||
Angle of Half Sensitivity ±57 ° | ||
Automotive Standard AEC-Q102 | ||
Typical Rise Time 340ns | ||
Short Circuit Current 2.4μA | ||
Breakdown Voltage 20V | ||
Dark Current 3nA | ||
Series VEMD | ||
Open Circuit Voltage 312mV | ||
The Vishay Silicon PIN Photodiode is a high speed, high sensitivity photodiode with enhanced sensitivity for visible light. It is a low profile surface mount device with a 0.375 mm² sensitive area, capable of detecting both visible and near infrared radiation. This makes it Ideal for applications requiring precise light detection in Compact form factors.
Operating temperature range from 40 °C to +125 °C
Lead free reflow soldering
AEC Q102 qualified
