Vishay, VEMD4110X02 Day Light Si PIN Photodiode, ±55 °, Surface Mount 0805
- RS Stock No.:
- 277-479
- Mfr. Part No.:
- VEMD4110X02
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£654.00
(exc. VAT)
£786.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3,000 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.218 | £654.00 |
*price indicative
- RS Stock No.:
- 277-479
- Mfr. Part No.:
- VEMD4110X02
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Spectrums Detected | Day Light | |
| Wavelength of Peak Sensitivity | 910nm | |
| Package Type | 0805 | |
| Mounting Type | Surface Mount | |
| Number of Pins | 2 | |
| Diode Material | Si | |
| Angle of Half Sensitivity | ±55 ° | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Spectrums Detected Day Light | ||
Wavelength of Peak Sensitivity 910nm | ||
Package Type 0805 | ||
Mounting Type Surface Mount | ||
Number of Pins 2 | ||
Diode Material Si | ||
Angle of Half Sensitivity ±55 ° | ||

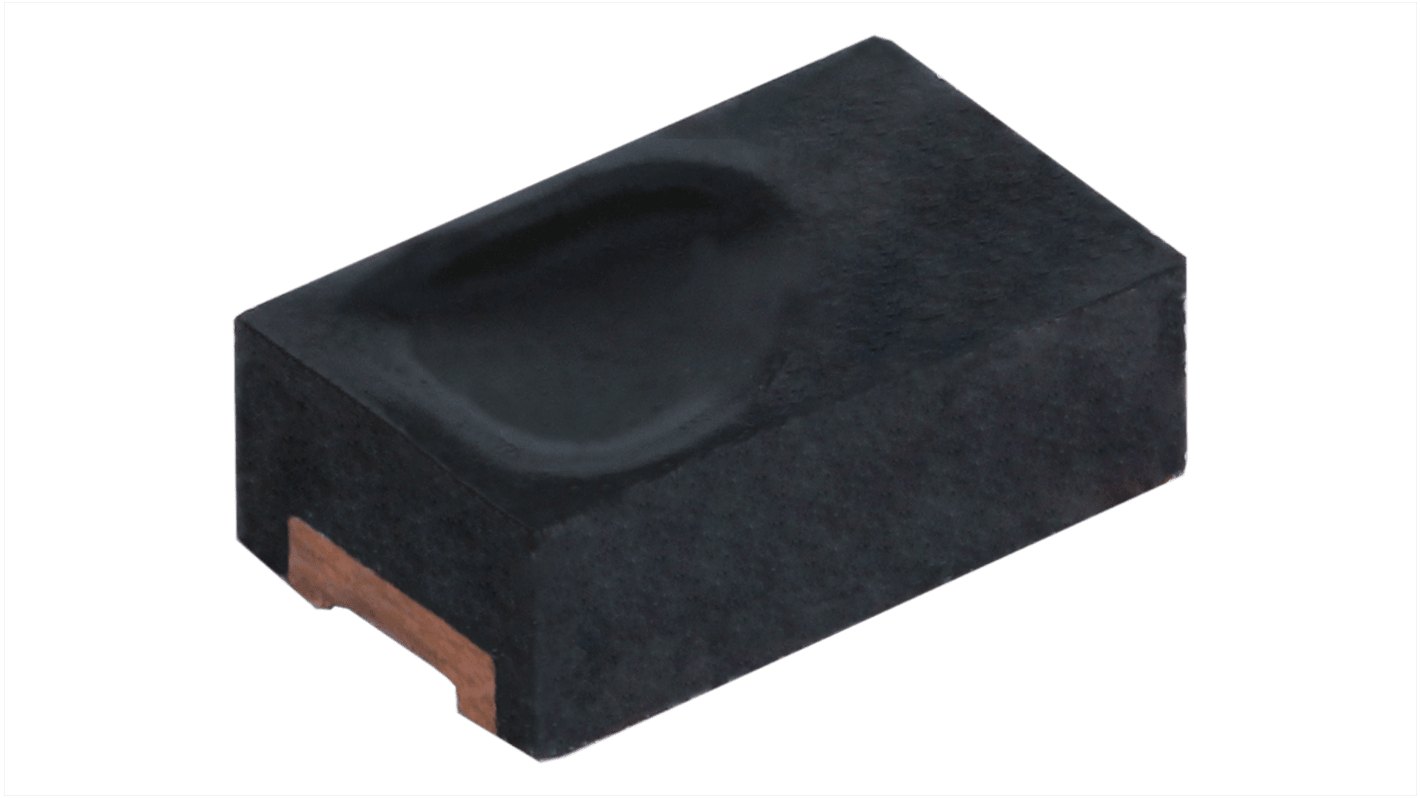

The Vishay Silicon PIN Photodiode is a high speed and high sensitive PIN photodiode. It is a miniature surface mount device with a 0.42 mm² sensitive area and a daylight blocking filter matched with IR emitters operating at wavelength of 830 nm to 950 nm.
Operating temperature range from 40 °C to +125 °C
Lead free reflow soldering
AEC Q102 qualified
Lead free reflow soldering
AEC Q102 qualified
