RS PRO Phase Rotation Tester, CAT III 300V, 400Hz Max, 400V ac Max with RS Calibration
- RS Stock No.:
- 891-0970
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 891-0970
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Overvoltage Category | CAT III 300V | |
| Safety Category | CAT III 300V | |
| Calibrated | RSCAL | |
| Non-Contact | Non Contact | |
| Current Consumption | 20mA | |
| Battery Type | 9V | |
| Power Source | Battery | |
| Dimensions | 240 x 78 x 40mm | |
| Weight | 237g | |
| Height | 40mm | |
| Length | 240mm | |
| Maximum Frequency | 400Hz | |
| Width | 78mm | |
| Minimum Voltage | 1V ac | |
| Safety Category Voltage | 600V | |
| Safety Category Level | CAT III | |
| Maximum Operating Temperature | +40°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Voltage | 400V ac | |
| Minimum Frequency | 2 Hz | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Overvoltage Category CAT III 300V | ||
Safety Category CAT III 300V | ||
Calibrated RSCAL | ||
Non-Contact Non Contact | ||
Current Consumption 20mA | ||
Battery Type 9V | ||
Power Source Battery | ||
Dimensions 240 x 78 x 40mm | ||
Weight 237g | ||
Height 40mm | ||
Length 240mm | ||
Maximum Frequency 400Hz | ||
Width 78mm | ||
Minimum Voltage 1V ac | ||
Safety Category Voltage 600V | ||
Safety Category Level CAT III | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Voltage 400V ac | ||
Minimum Frequency 2 Hz | ||
- COO (Country of Origin):
- CN

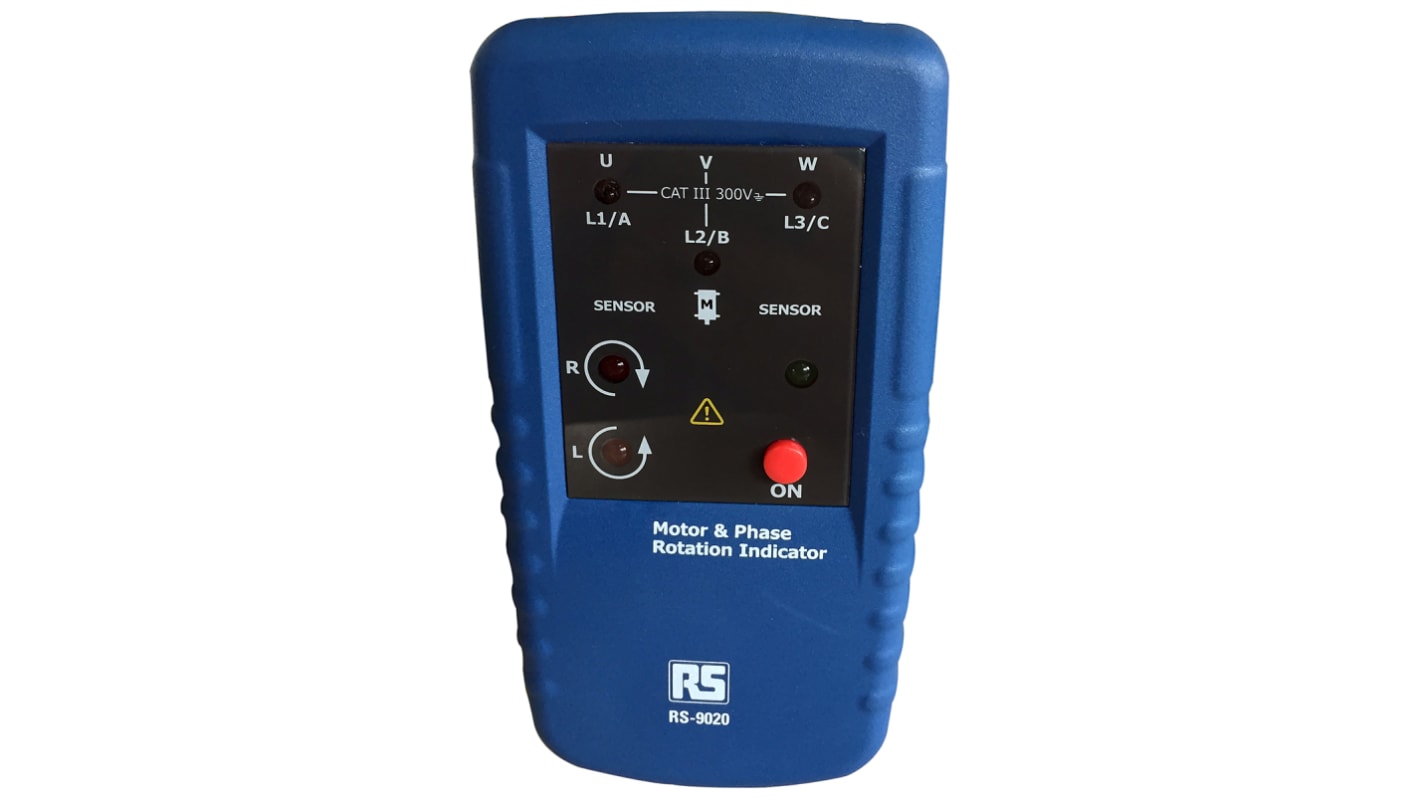

RS-9020 Motor and Phase Rotation Indicator with Contact Free Detection
The RS-9020 motor and phase rotation indicator is a great value, handheld, battery-operated instrument designed to detect the rotary field of three-phase systems and to determine motor-rotation direction.
Rotary field Indicator – LED indication of the three phases
Motor rotation Indicator – LED display of motor rotation direction
Contact free determination of the rotation direction of running motors
Magnetic field detection to detect AC solenoid valve
Dimensions 130 x 69 x 32 mm
Weight 130 g
Motor rotation Indicator – LED display of motor rotation direction
Contact free determination of the rotation direction of running motors
Magnetic field detection to detect AC solenoid valve
Dimensions 130 x 69 x 32 mm
Weight 130 g
Standards
IEC61010 / EN61010, IEC61557-7 / EN61557-7
Supplied with
Self-retaining test leads (x3), alligator clips (x3), carrying case, user manual
