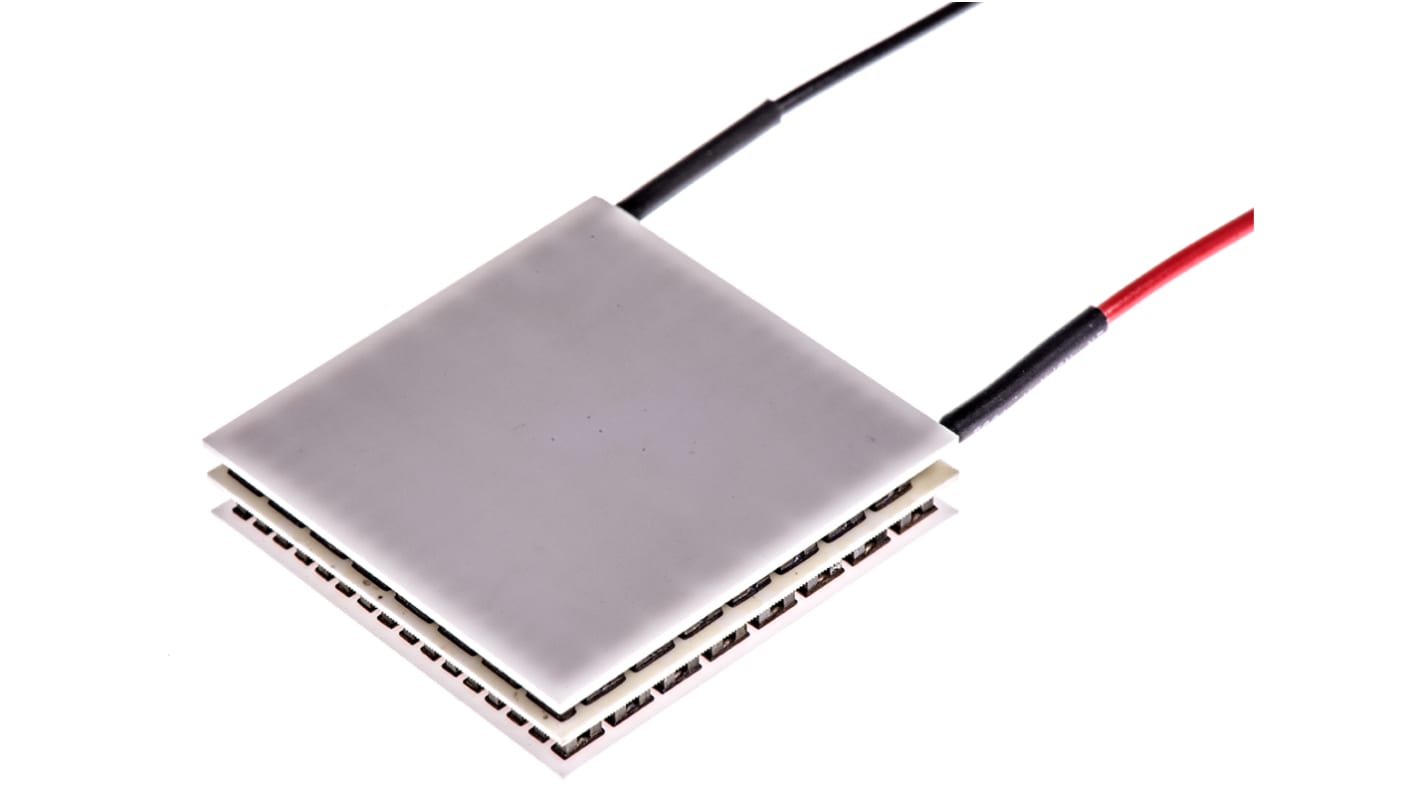

Laird Technologies Peltier Module, 16.05W, 2.8A, 15.5V, 30 x 30mm
- RS Stock No.:
- 197-0382
- Mfr. Part No.:
- 2SC040050-127-63L
- Brand:
- Laird Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£224.30
(exc. VAT)
£269.16
(inc. VAT)
- RS Stock No.:
- 197-0382
- Mfr. Part No.:
- 2SC040050-127-63L
- Brand:
- Laird Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Laird Technologies | |
| Maximum Cooling Capacity | 16.05W | |
| Maximum Temperature Difference | +83K | |
| Maximum Current | 2.8A | |
| Maximum Voltage | 15.5V | |
| Active Area | 30 x 30mm | |
| Active Area Length | 30mm | |
| Active Area Thickness | 7.1mm | |
| Active Area Width | 30mm | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Laird Technologies | ||
Maximum Cooling Capacity 16.05W | ||
Maximum Temperature Difference +83K | ||
Maximum Current 2.8A | ||
Maximum Voltage 15.5V | ||
Active Area 30 x 30mm | ||
Active Area Length 30mm | ||
Active Area Thickness 7.1mm | ||
Active Area Width 30mm | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- CN
Thermoelectric Modules, Laird Technologies
From Global Component Sourcing, these heat pumps utilise the Peltier Effect to remove heat from the application. They are particularly suited for use within applications where space or access is limited. Peltier effect heat pumps are also highly cost effective when compared to conventional cooling solutions.
Thermoelectric Modules - Peltier Effect
A range of semiconductor thermoelectric devices working on the Peltier effect. When supplied with a suitable electric current, they can either cool or heat. When subject to an externally applied temperature gradient these devices will generate a small amount of electrical power.The larger devices can be used for cooling or controlling the temperature of sub-assemblies. The small size of the mini module makes it ideally suited for cooling miniature electronic components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.,Alternatively, it may be used to minimise the effects of temperature coefficients on oscillator stability, reference voltages, amplifier offsets etc. by providing temperature control.
Solid-state long term stability
Generates no acoustic noise
Generates no acoustic noise
