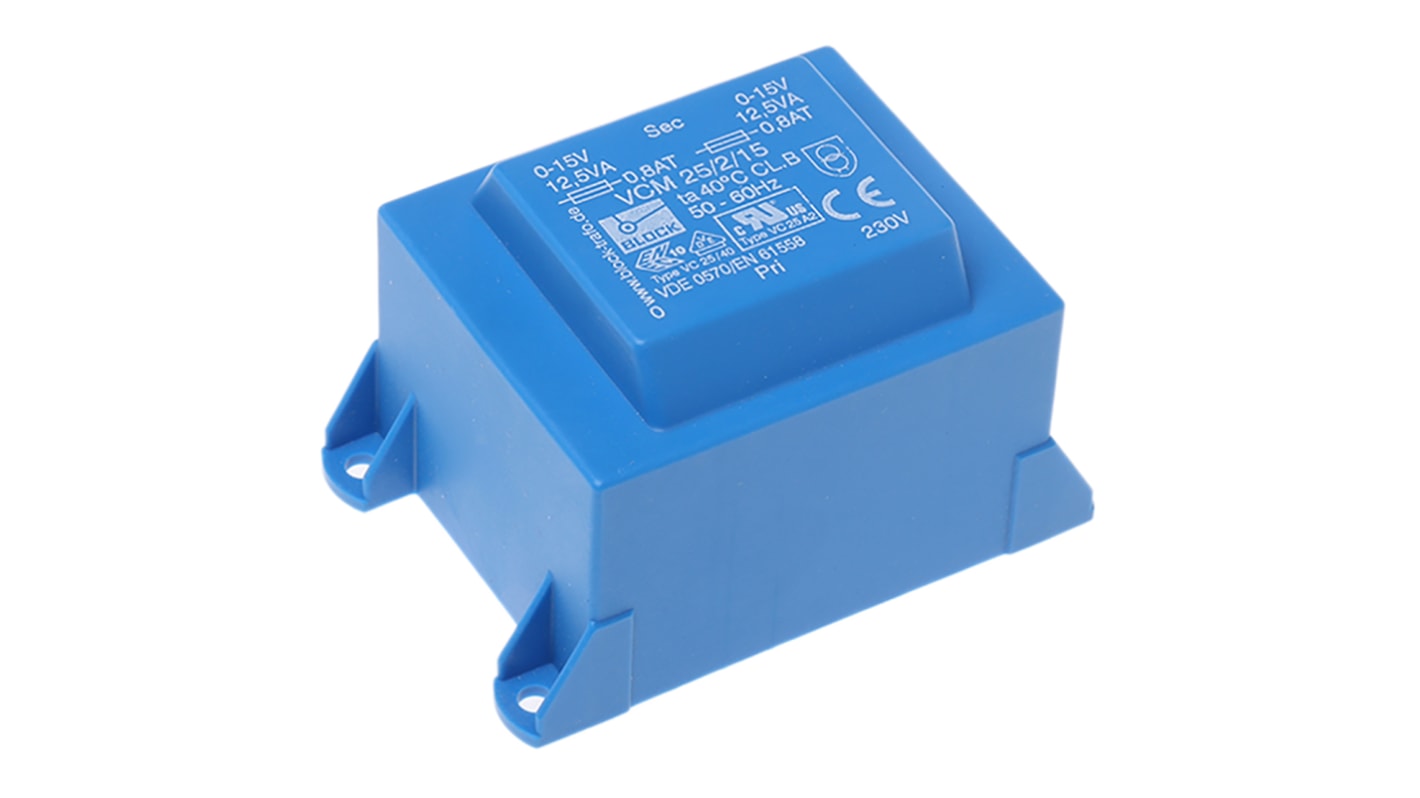

Block 15V ac 2 Output Through Hole PCB Transformer, 25VA
- RS Stock No.:
- 347-2767
- Mfr. Part No.:
- VCM 25/2/15
- Brand:
- Block
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£23.43
(exc. VAT)
£28.12
(inc. VAT)
- RS Stock No.:
- 347-2767
- Mfr. Part No.:
- VCM 25/2/15
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Secondary Voltage Rating | 15V ac | |
| Power Rating | 25VA | |
| Primary Voltage Rating | 230V ac | |
| Number of Outputs | 2 | |
| Length | 81.2mm | |
| Width | 49.2mm | |
| Depth | 55mm | |
| Dimensions | 81.2 x 49.2 x 55mm | |
| Weight | 610g | |
| Mounting Type | Through Hole | |
| Maximum Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Block | ||
Secondary Voltage Rating 15V ac | ||
Power Rating 25VA | ||
Primary Voltage Rating 230V ac | ||
Number of Outputs 2 | ||
Length 81.2mm | ||
Width 49.2mm | ||
Depth 55mm | ||
Dimensions 81.2 x 49.2 x 55mm | ||
Weight 610g | ||
Mounting Type Through Hole | ||
Maximum Temperature +40°C | ||
- COO (Country of Origin):
- DE
PCB Mount 230Vac Primary VC/VCM Series
Single and twin secondary windings for series or parallel connection
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Note
To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.
Standards
EN 61 558 IEC 61558
Approvals
ENEC, UL recognised
