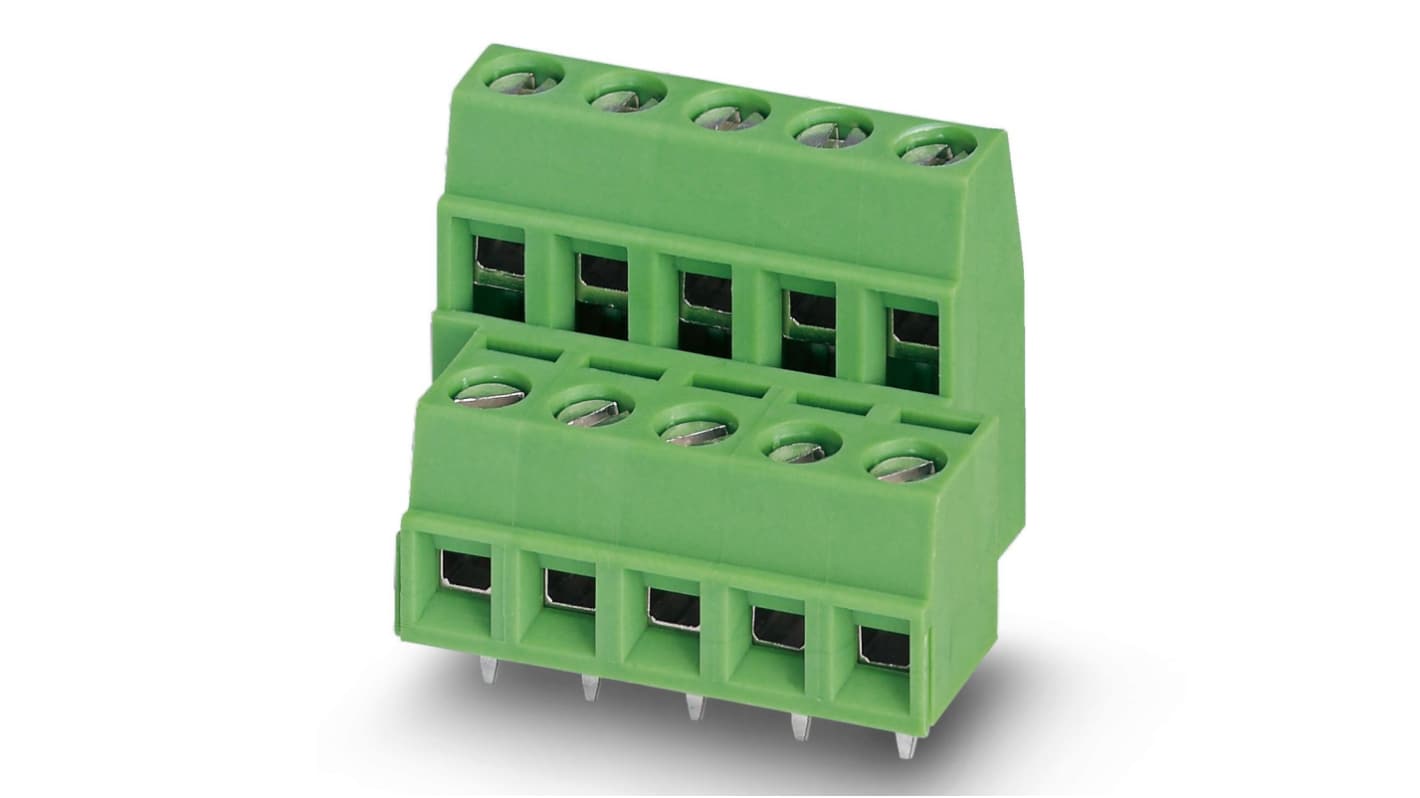

Phoenix Contact MKKDSN 1.5/10-5.08 Series PCB Terminal Block, 10-Contact, 5.08mm Pitch, Through Hole Mount, Screw
- RS Stock No.:
- 887-7546
- Mfr. Part No.:
- 1870271
- Brand:
- Phoenix Contact
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Price Each (In a Box of 50)
£5.935
(exc. VAT)
£7.122
(inc. VAT)
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £5.935 | £296.75 |
*price indicative
- RS Stock No.:
- 887-7546
- Mfr. Part No.:
- 1870271
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², Number of potentials: 20, Number of rows: 2, Number of positions per row: 10, product range: MKKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Pitch | 5.08mm |
| Mounting Type | Through Hole |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 13.5A |
| Colour | Green |
| Voltage Rating | 630 V |
| Series | MKKDSN 1.5/10-5.08 |
| Material | Polyamide |
| Depth | 11mm |
| Length | 18.3mm |
