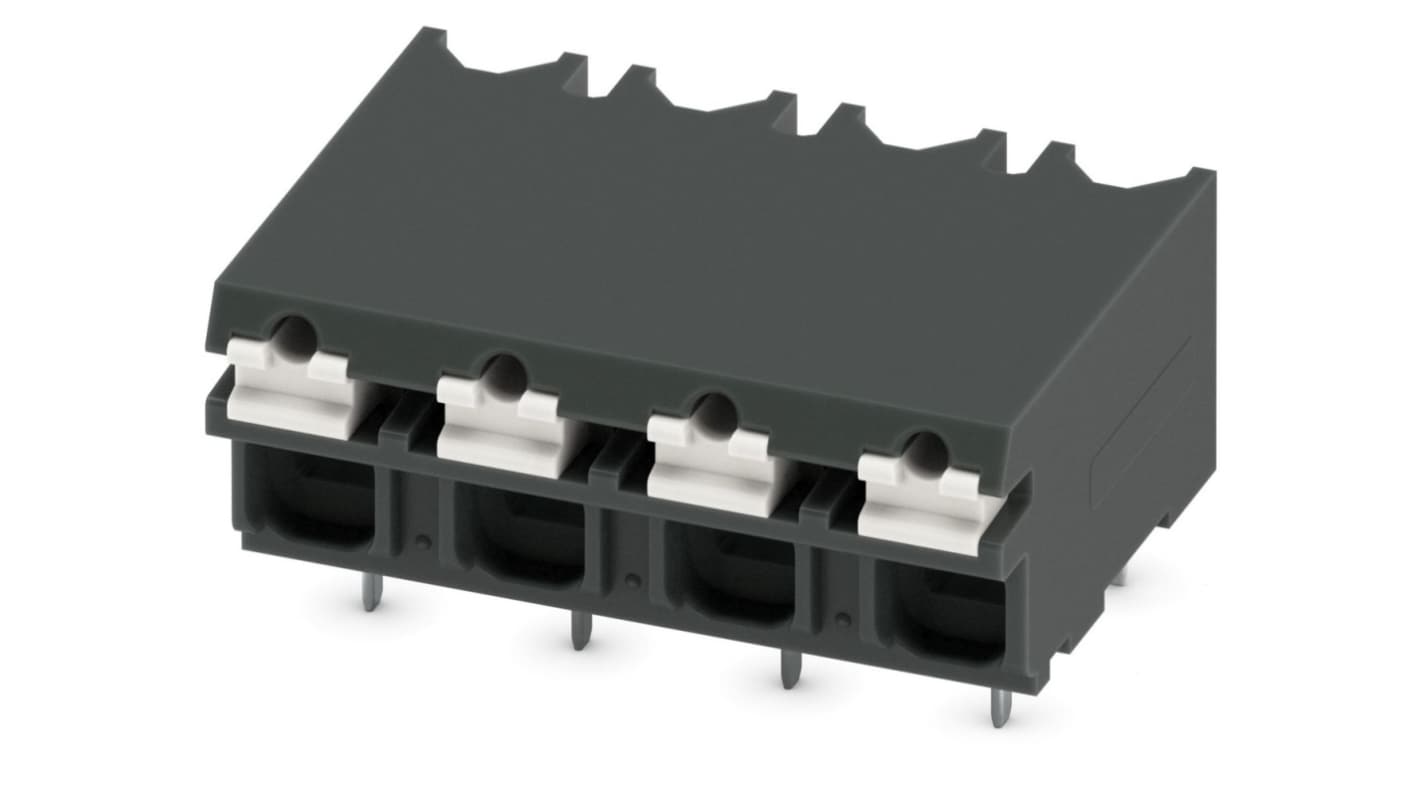

Phoenix Contact SPT-THR 1.5/ 4-H-5.08 P26 Series PCB Terminal Block, 5.08mm Pitch, Through Hole Mount, Spring Cage
- RS Stock No.:
- 881-1851
- Mfr. Part No.:
- 1823104
- Brand:
- Phoenix Contact
Available to back order for despatch 11/07/2024
Added
Price Each (In a Box of 130)
£1.179
(exc. VAT)
£1.415
(inc. VAT)
| Units | Per unit | Per Box* |
| 130 + | £1.179 | £153.27 |
| *price indicative | ||
- RS Stock No.:
- 881-1851
- Mfr. Part No.:
- 1823104
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², Number of potentials: 4, Number of rows: 1, Number of positions per row: 4, product range: SPT 1,5/..-H-THR, pitch: 5.08 mm, connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear double pinning, Solder pin [P]: 2.6 mm, type of packaging: packed in cardboard
Specifications
Attribute | Value |
|---|---|
| Pitch | 5.08mm |
| Mounting Type | Through Hole |
| Termination Method | Spring Cage |
| Type | PCB Terminal Block |
| Current Rating | 13.5A |
| Colour | Black |
| Voltage Rating | 500 V |
| Series | SPT-THR 1.5/ 4-H-5.08 P26 |
| Width | 19.24mm |
| Material | Liquid Crystal Polymer |
| Length | 13.7mm |
| Depth | 7.7mm |
