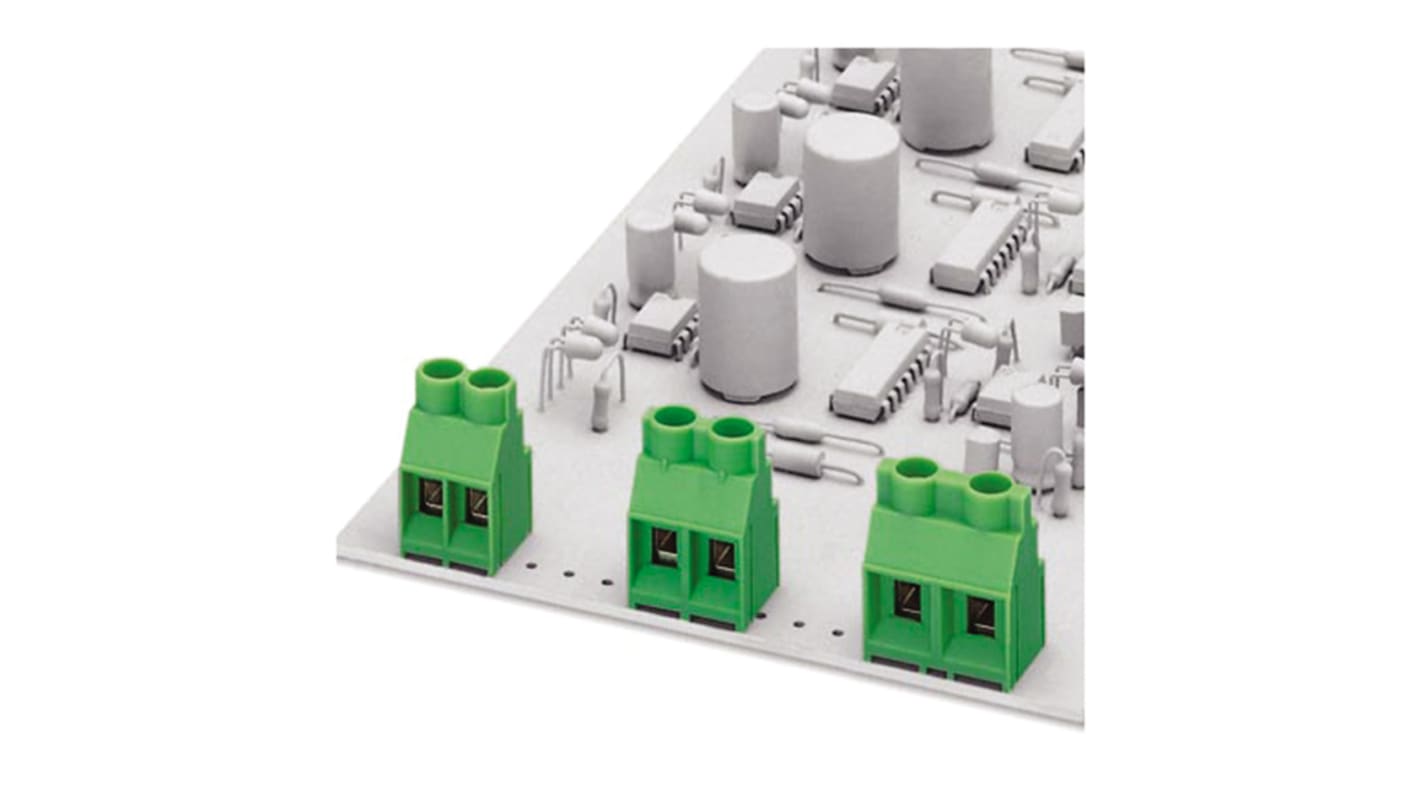

Phoenix Contact MKDSV 5/ 2-7.62 Series PCB Terminal Block, 2-Contact, 7.62mm Pitch, Through Hole Mount, Screw
- RS Stock No.:
- 855-1054
- Mfr. Part No.:
- 1907131
- Brand:
- Phoenix Contact
Available to back order for despatch 03/07/2024
Added
Price Each (In a Box of 50)
£1.109
(exc. VAT)
£1.331
(inc. VAT)
Units | Per unit | Per Box* |
50 + | £1.109 | £55.45 |
*price indicative |
- RS Stock No.:
- 855-1054
- Mfr. Part No.:
- 1907131
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², Number of potentials: 2, Number of rows: 1, Number of positions per row: 2, product range: MKDSV 5, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5.1 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Specifications
Attribute | Value |
---|---|
Number of Contacts | 2 |
Pitch | 7.62mm |
Mounting Type | Through Hole |
Termination Method | Screw |
Type | PCB Terminal Block |
Current Rating | 32A |
Colour | Green |
Voltage Rating | 1 kV |
Series | MKDSV 5/ 2-7.62 |
Material | Polyamide |
- RS Stock No.:
- 855-1054
- Mfr. Part No.:
- 1907131
- Brand:
- Phoenix Contact
