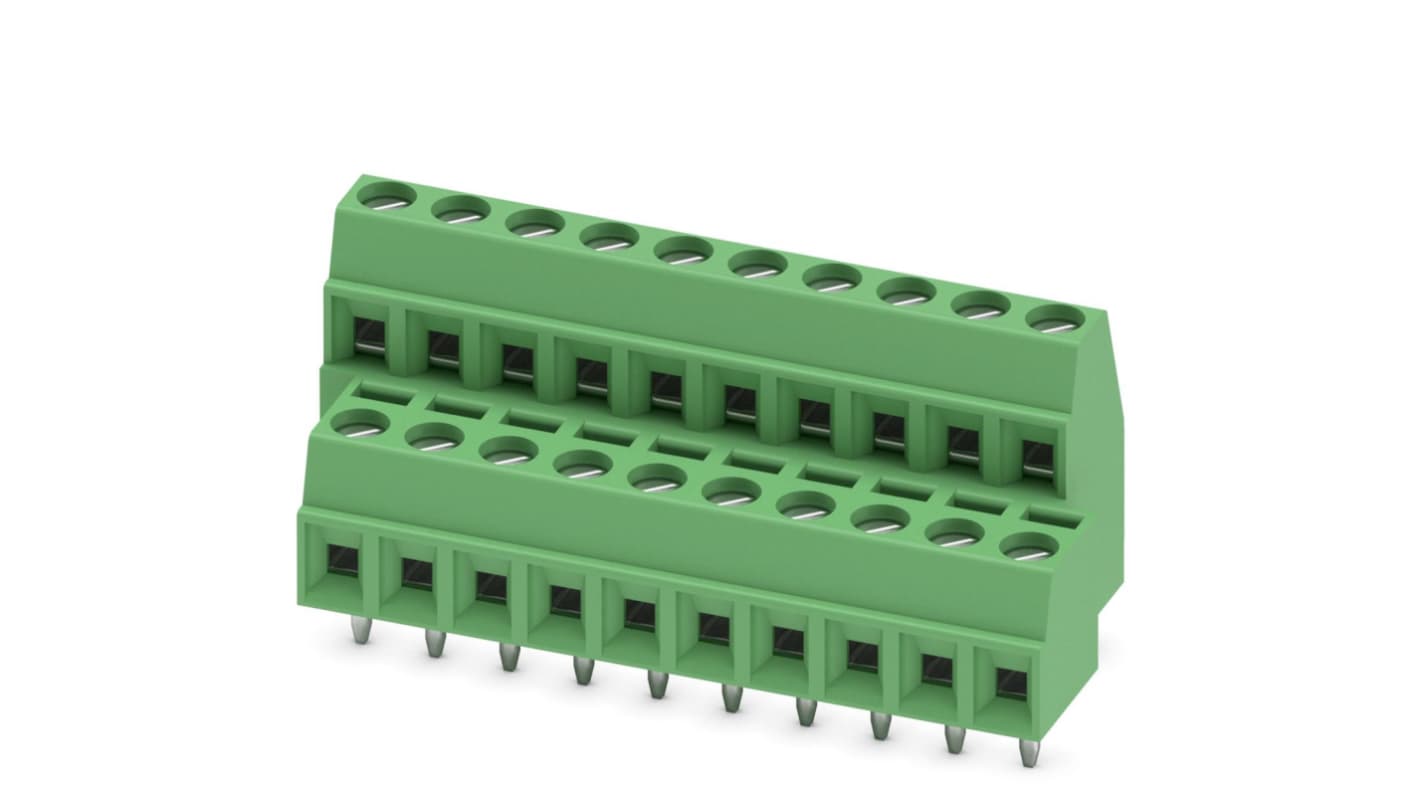

Phoenix Contact MKKDS 1/10-3.81 Series PCB Terminal Block, 10-Contact, 3.81 mm Pitch, 2 Row
- RS Stock No.:
- 802-0487
- Distrelec Article No.:
- 148-38-385
- Mfr. Part No.:
- 1708110
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£12.44
(exc. VAT)
£14.93
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 34 unit(s) ready to ship
- Plus 62 unit(s) shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.44 |
*price indicative
- RS Stock No.:
- 802-0487
- Distrelec Article No.:
- 148-38-385
- Mfr. Part No.:
- 1708110
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 10 | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Number of Rows | 2 | |
| Minimum Wire Size mm² | 1.5mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 200V | |
| Standards/Approvals | No | |
| Width | 16.3mm | |
| Length | 38.1mm | |
| Depth | 16.2mm | |
| Series | MKKDS 1/10-3.81 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 10 | ||
Pitch 3.81mm | ||
Current 8A | ||
Number of Rows 2 | ||
Minimum Wire Size mm² 1.5mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 200V | ||
Standards/Approvals No | ||
Width 16.3mm | ||
Length 38.1mm | ||
Depth 16.2mm | ||
Series MKKDS 1/10-3.81 | ||
- COO (Country of Origin):
- DE
Phoenix Contact COMBICON MKKDS 3.81mm Double Level PCB Terminal Blocks
Professional range of 3.81 mm pitch PCB termianl blocks from the MKKDS series.
Screw connection
Solder terminal
Various positions available
Colour: Green
Phoenix Contact COMBICON 3.81mm PCB Terminal Blocks
