RS PRO PCB Terminal Block, 4-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination
- RS Stock No.:
- 790-1076
- Distrelec Article No.:
- 304-05-854
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.75
(exc. VAT)
£5.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,610 unit(s) ready to ship
- Plus 630 unit(s) ready to ship from another location
- Plus 425 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £0.95 | £4.75 |
50 - 95 | £0.91 | £4.55 |
100 - 245 | £0.836 | £4.18 |
250 - 495 | £0.76 | £3.80 |
500 + | £0.712 | £3.56 |
*price indicative
- RS Stock No.:
- 790-1076
- Distrelec Article No.:
- 304-05-854
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 4 | |
Pitch | 5.08mm | |
Number of Rows | 1 | |
Mounting Type | Through Hole | |
Gender | Female | |
Termination Method | Screw | |
Type | PCB Terminal Block | |
Current Rating | 16A | |
Body Orientation | Straight | |
Colour | Green | |
Voltage Rating | 300 V | |
Length | 20.32mm | |
Depth | 10mm | |
Material | Polyamide | |
Width | 8.1mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 4 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Mounting Type Through Hole | ||
Gender Female | ||
Termination Method Screw | ||
Type PCB Terminal Block | ||
Current Rating 16A | ||
Body Orientation Straight | ||
Colour Green | ||
Voltage Rating 300 V | ||
Length 20.32mm | ||
Depth 10mm | ||
Material Polyamide | ||
Width 8.1mm | ||
- COO (Country of Origin):
- TW

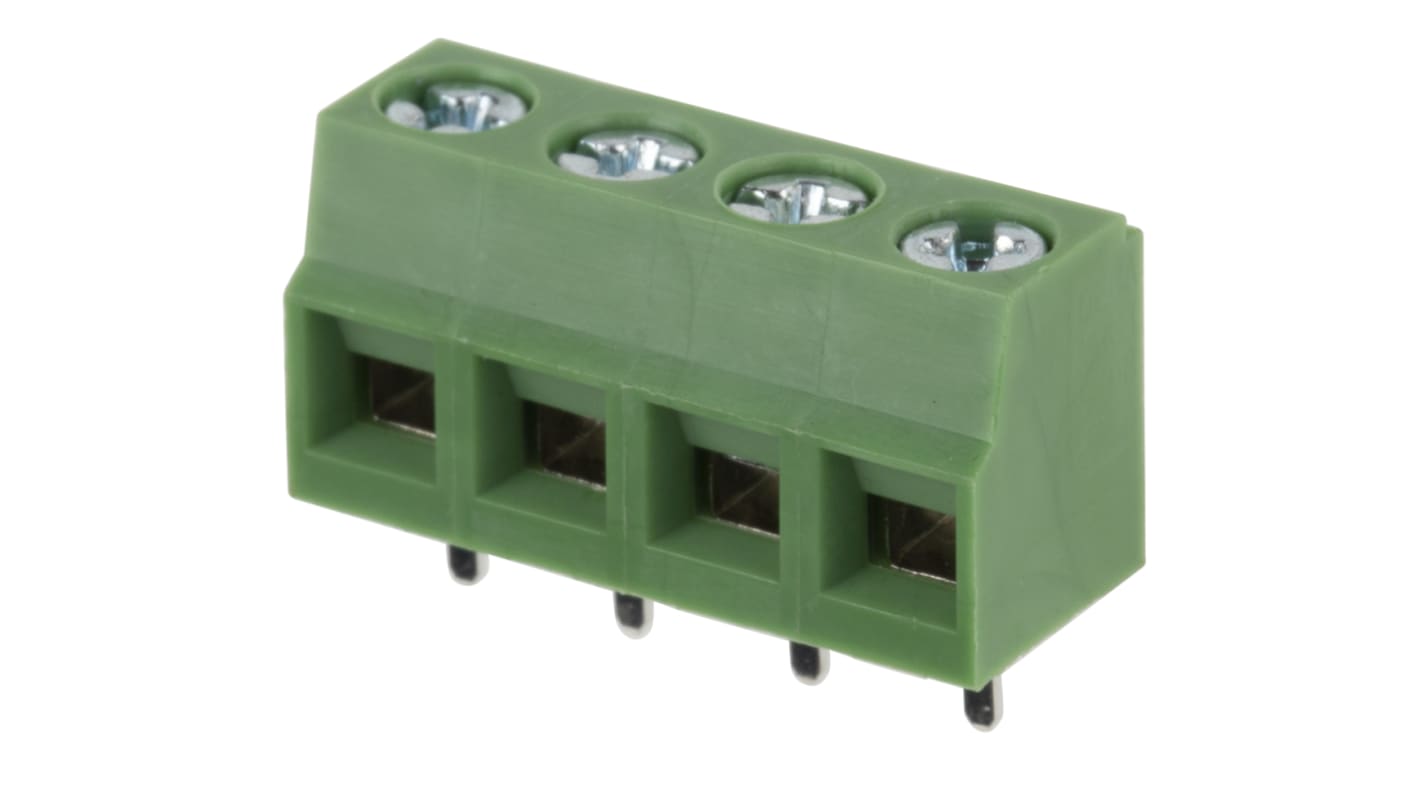

RS PRO 4-pin PCB Terminal Strip, 5.08 mm Pitch
Use this RS PRO terminal strip to safely connect wires on your PCB (printed circuit board). It has four pins with a pitch distance of 5.08 mm, making it compatible with common industrial systems such as processors, telecom equipment and medical devices.
This terminal strip has screw-type termination, which makes it simple to attach and eliminates the need for specialised tools. It's a versatile choice as it can support a wide range of wire gauges between 14 and 26 AWG (American Wire Gauge). The housing is comprised of a durable and abrasion-resistant polyamide material that's suitable for use in industrial environments.
The product has been tested to ensure durability and quality. Its UL-94-V-0 fire safety rating from Underwriters' Laboratories means it will stop flame combustion within 50 seconds if a fire occurs.
This terminal strip has screw-type termination, which makes it simple to attach and eliminates the need for specialised tools. It's a versatile choice as it can support a wide range of wire gauges between 14 and 26 AWG (American Wire Gauge). The housing is comprised of a durable and abrasion-resistant polyamide material that's suitable for use in industrial environments.
The product has been tested to ensure durability and quality. Its UL-94-V-0 fire safety rating from Underwriters' Laboratories means it will stop flame combustion within 50 seconds if a fire occurs.
Features and Benefits
- Straight body orientation
- Green colour
- Current rating of 16 A
- Dimensions of 20.32 (length) x 8.1 (width) x 10 mm (depth)
- Female gender
- Polyamide material
- Through-hole mounting type
- Four contacts
- One row
- Pitch of 5.08 mm
- Screw termination method
- PCB terminal block type
- Voltage rating of 300 V
