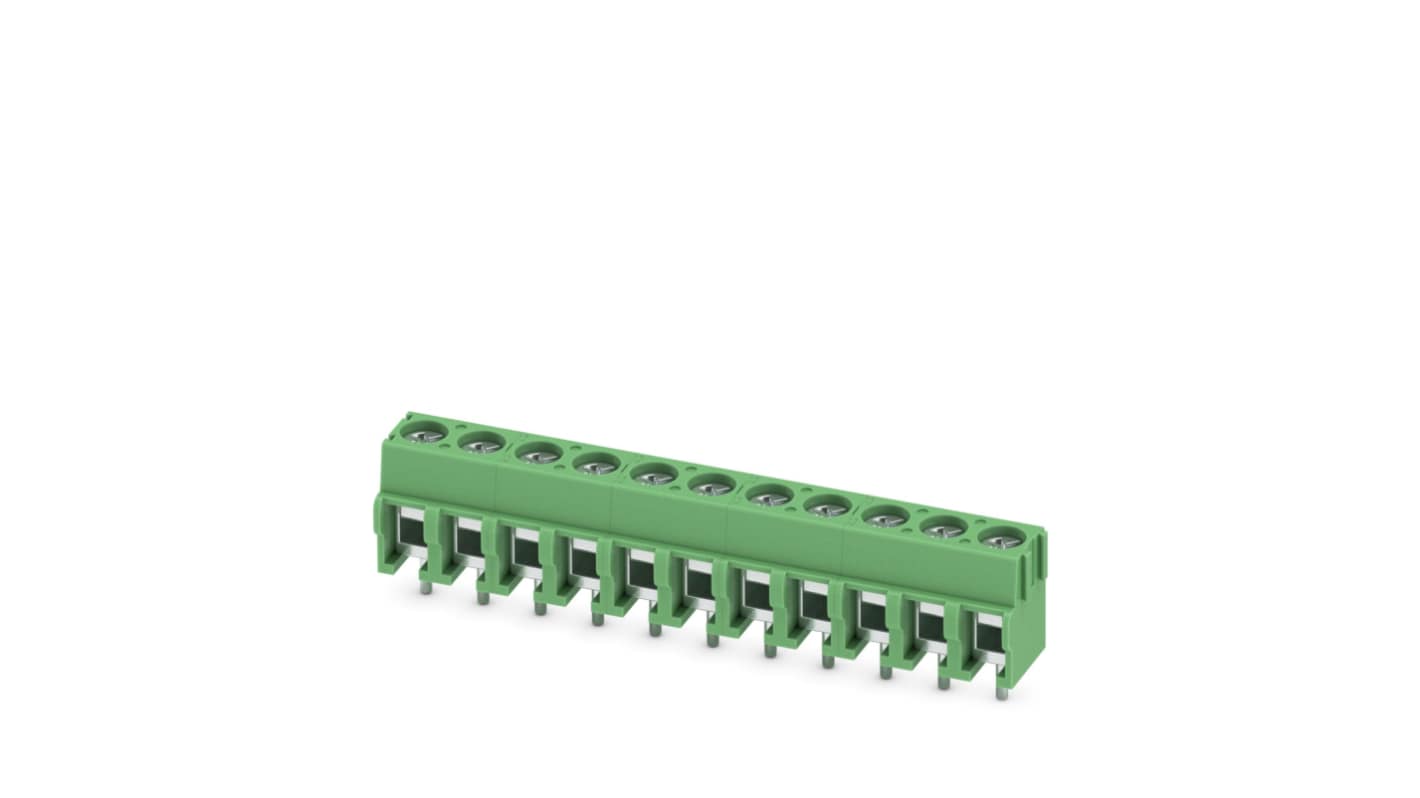

Phoenix Contact 0-H, 5/11-5, PT 1 Series PCB Terminal Block, 11-Contact, 5 mm Pitch, 1 Row, 1935255
- RS Stock No.:
- 648-8759
- Mfr. Part No.:
- 1935255
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£1.95
(exc. VAT)
£2.34
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 24 | £1.95 |
| 25 - 74 | £1.79 |
| 75 - 199 | £1.68 |
| 200 - 399 | £1.59 |
| 400 + | £1.52 |
*price indicative
- RS Stock No.:
- 648-8759
- Mfr. Part No.:
- 1935255
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 11 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 400V | |
| Length | 9mm | |
| Series | 0-H, 5/11-5, PT 1 | |
| Depth | 14.9mm | |
| Width | 55mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 11 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 17.5A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 400V | ||
Length 9mm | ||
Series 0-H, 5/11-5, PT 1 | ||
Depth 14.9mm | ||
Width 55mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
Phoenix Contact PT 1,5/11-5,0-H Series PCB Terminal Block, 17.5A Current Rating, 400V Voltage Rating - 1935255
This PCB terminal block is intended for efficient connectivity in printed circuit boards. With a current rating of 17.5A and a voltage rating of 400V, it caters to a variety of electrical applications, ensuring consistent performance. Its compact dimensions of 9mm in length and 55mm in width make it suitable for confined spaces, while the straight body orientation simplifies installation.
Features & Benefits
• 5mm pitch facilitates space-saving installations
• Suitable for wave soldering PCB connectors
• Green nylon housing assists with easy identification
• Accommodates connections for two conductors
• High current capacity allows for effective power distribution
• Side latching permits multiple positioning combinations
Applications
• Used in electronic control systems
• Effective for connections in automation equipment
• Appropriate for power distribution in machinery
• Ideal for interface connections on circuit boards
Can it support flexible wire connections?
Yes, it accommodates flexible wires ranging from 0.2mm² to 2.5mm².
Will it withstand harsh environmental conditions?
It operates efficiently in temperatures from -40°C to 100°C.
Is it compliant with industry standards?
Yes, it meets WEEE and RoHS compliance requirements.
Can it connect multiple conductors simultaneously?
Yes, it allows the connection of two conductors of the same cross-section.
Approvals
UL, CUL
