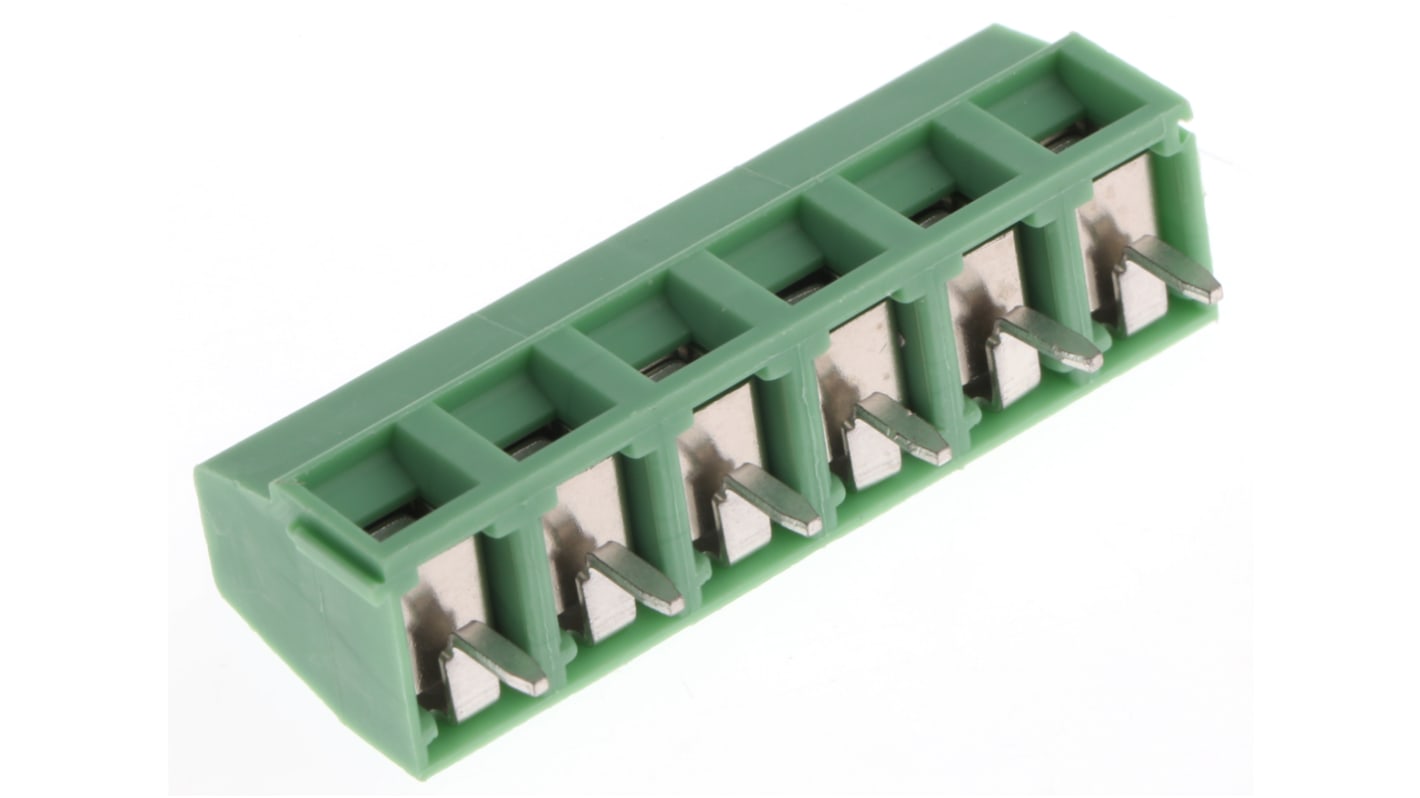

Phoenix Contact MKDSN 1.5/6-5.08 Series PCB Terminal Block, 6-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw

RS Stock No.:: 290-1270
Mfr. Part No.:: 1729160
Brand:: Phoenix Contact

Phoenix Contact MKDSN 1.5/6-5.08 Series PCB Terminal Block, 6-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw

Save 34% when you buy 2000 units

Subtotal (1 pack of 5 units)*

£12.24

(exc. VAT)

£14.69

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

90 unit(s) ready to ship
Plus 50 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 120	£2.448	£12.24
125 - 370	£2.208	£11.04
375 - 995	£1.968	£9.84
1000 - 1995	£1.716	£8.58
2000 +	£1.594	£7.97

*price indicative

RS Stock No.:: 290-1270
Mfr. Part No.:: 1729160
Brand:: Phoenix Contact

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Number of Contacts	6
	Pitch	5.08mm
	Number of Rows	1
	Mounting Type	Through Hole
	Termination Method	Screw
	Type	PCB Terminal Block
	Current Rating	13.5A
	Body Orientation	Straight
	Colour	Green
	Voltage Rating	250 V
	Series	MKDSN 1.5/6-5.08
	Width	10mm
	Depth	8.1mm
	Length	30.48mm

	Select all
	Brand Phoenix Contact
	Number of Contacts 6
	Pitch 5.08mm
	Number of Rows 1
	Mounting Type Through Hole
	Termination Method Screw
	Type PCB Terminal Block
	Current Rating 13.5A
	Body Orientation Straight
	Colour Green
	Voltage Rating 250 V
	Series MKDSN 1.5/6-5.08
	Width 10mm
	Depth 8.1mm
	Length 30.48mm

Phoenix Contact MKDSN 1.5/6-5.08 Series PCB Terminal Block, 6 Contacts, 13.5A Current Rating - 1729160

This PCB terminal block is a compact solution designed for reliable electrical connections in various applications. The terminal block features a single row with a pitch of 5.08mm, enabling efficient space utilisation on PCBs. Constructed from durable copper alloy and PA material, the product is designed with a straight body orientation and through-hole mounting for easy installation.

Features & Benefits

• Designed for screw connections ensuring secure and reliable terminations
• Rated for a maximum current of 13.5A, suitable for demanding applications
• Supports multiple conductor cross-sections up to 1.5mm², offering versatility
• Green colour coding aids in easy identification and organisation in panels
• Compact housing dimensions allow for space-saving designs in electronics

Applications

• Utilised in automation equipment for efficient circuit management
• Ideal for connections in control cabinets within the electrical industry
• Commonly used in mechanical assemblies requiring secure wiring solutions
• Employed in electronic devices for reliable interconnections

What types of conductors can be used with this device?

It can accommodate solid and flexible conductors ranging from 0.14mm² to 1.5mm², enhancing its versatility for different wiring needs.

How does the design of the terminal block improve wiring efficiency?

The single-row design simplifies installation and reduces space requirements on printed circuit boards, allowing for more efficient layouts.

Is there a specific torque requirement for the screw connection?

Yes, the recommended tightening torque ranges between 0.5 Nm and 0.6 Nm, ensuring proper connection without damaging the components.

What is the significance of the rated surge voltage for this terminal block?

With a rated surge voltage of 4 kV, the terminal block is protected against voltage spikes, enhancing the safety and reliability of the system it is integrated into.

Approvals

UL (E60425); CSA (LR13631)
