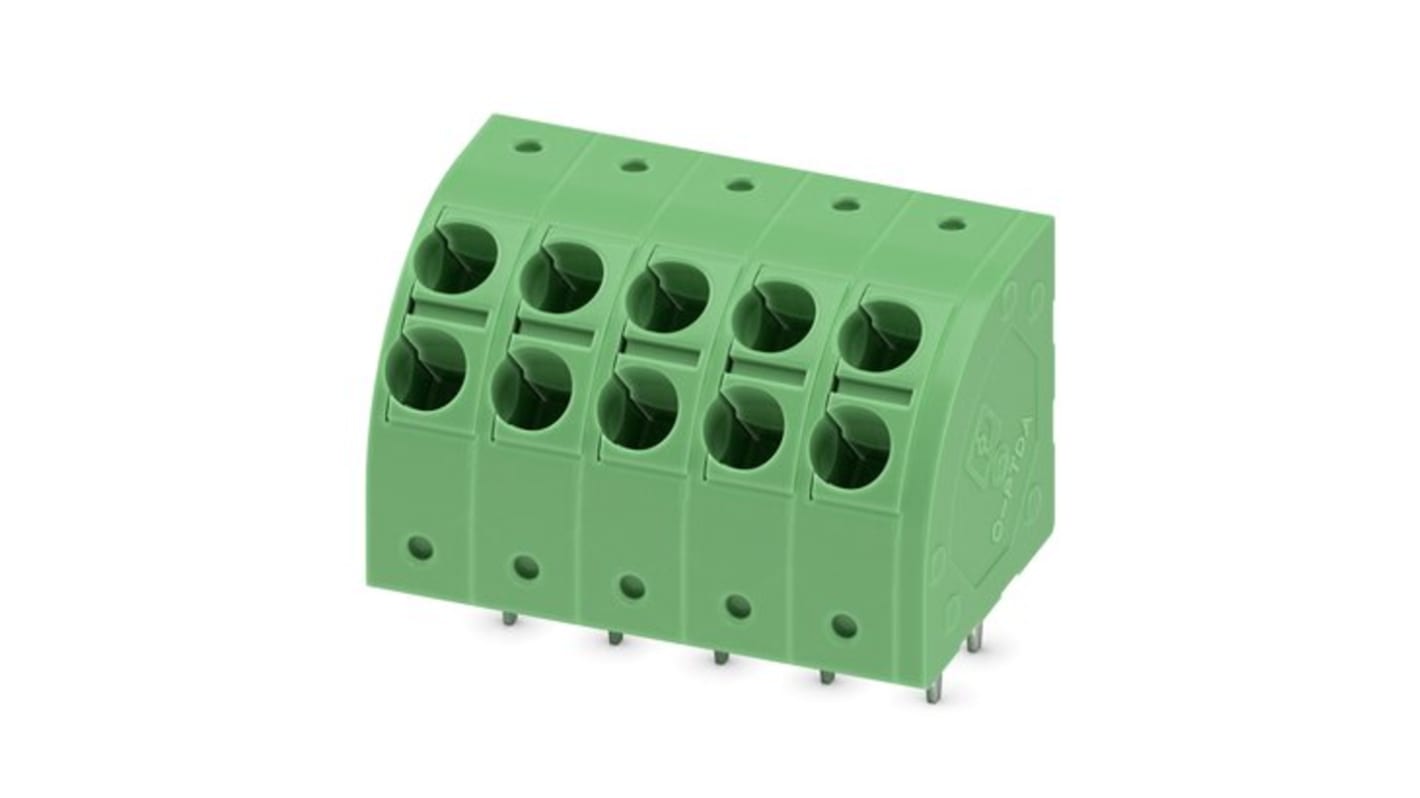

Phoenix Contact 0, 5/5-5, PTDA 2 Series PCB Terminal Block, 10-Contact, 2.5 mm Pitch, Wave Soldering Mount, 2 Row
- RS Stock No.:
- 286-1046
- Mfr. Part No.:
- 1725341
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£119.70
(exc. VAT)
£143.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £2.394 | £119.70 |
*price indicative
- RS Stock No.:
- 286-1046
- Mfr. Part No.:
- 1725341
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 10 | |
| Pitch | 2.5mm | |
| Number of Rows | 2 | |
| Current | 24A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push-in Spring | |
| Colour | Green | |
| Voltage | 400 V | |
| Series | 0, 5/5-5, PTDA 2 | |
| Depth | 16mm | |
| Length | 19.5mm | |
| Width | 25 mm | |
| Standards/Approvals | EU REACH SVHC, CHINA RoHS, cULus Recognised, VDE Gutachten mit Fertigungsüberwachung, EU RoHS | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 10 | ||
Pitch 2.5mm | ||
Number of Rows 2 | ||
Current 24A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation 45° | ||
Wire Connection Method Push-in Spring | ||
Colour Green | ||
Voltage 400 V | ||
Series 0, 5/5-5, PTDA 2 | ||
Depth 16mm | ||
Length 19.5mm | ||
Width 25 mm | ||
Standards/Approvals EU REACH SVHC, CHINA RoHS, cULus Recognised, VDE Gutachten mit Fertigungsüberwachung, EU RoHS | ||
- COO (Country of Origin):
- BG
The Phoenix Contact PCB terminal block with well-known connection principle allows worldwide use. It allows connection of two conductors.
Low temperature rise, thanks to maximum contact force
RoHS compliant
