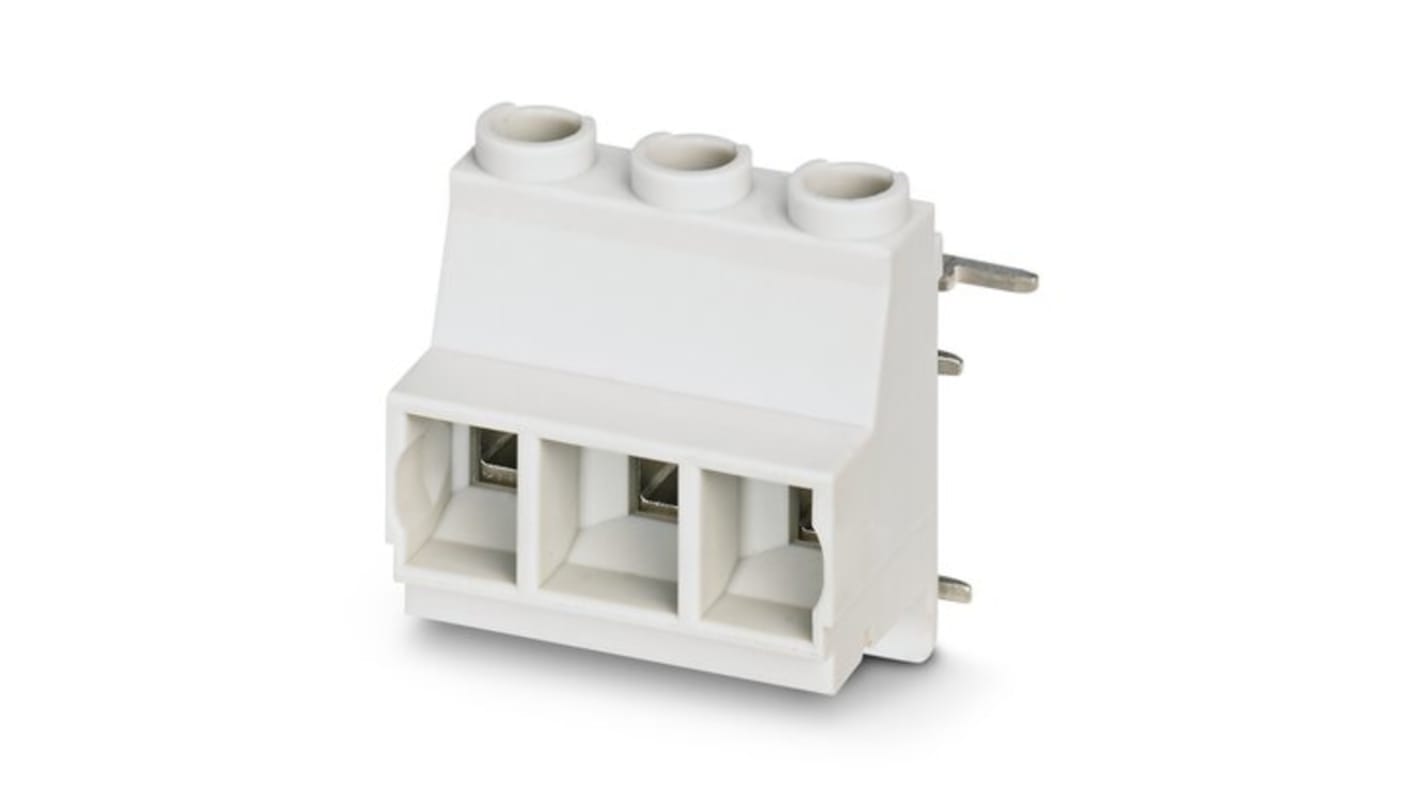

Phoenix Contact MKDSO Series PCB Terminal Block, 3-Contact, 7.5 mm Pitch, PCB, 1 Row
- RS Stock No.:
- 284-1301
- Mfr. Part No.:
- 2890959
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£206.55
(exc. VAT)
£247.85
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.131 | £206.55 |
*price indicative
- RS Stock No.:
- 284-1301
- Mfr. Part No.:
- 2890959
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 7.5mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | PCB | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 14AWG | |
| Maximum Wire Size AWG | 24AWG | |
| Colour | Light Grey | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 60V | |
| Depth | 20.8mm | |
| Series | MKDSO | |
| Standards/Approvals | cULus VDE Gutachten mit Fertigungsüberwachung China RoHS, RoHS, WEEE | |
| Width | 23.25mm | |
| Length | 27.95mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 7.5mm | ||
Current 24A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type PCB | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 14AWG | ||
Maximum Wire Size AWG 24AWG | ||
Colour Light Grey | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 60V | ||
Depth 20.8mm | ||
Series MKDSO | ||
Standards/Approvals cULus VDE Gutachten mit Fertigungsüberwachung China RoHS, RoHS, WEEE | ||
Width 23.25mm | ||
Length 27.95mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB terminal block employs Reakdyn principle or spring loaded elements. The PCB terminal block is orthogonal to the PCB. It has internationally recognized and proven screw connection.
Maintenance free
Vibration resistant
