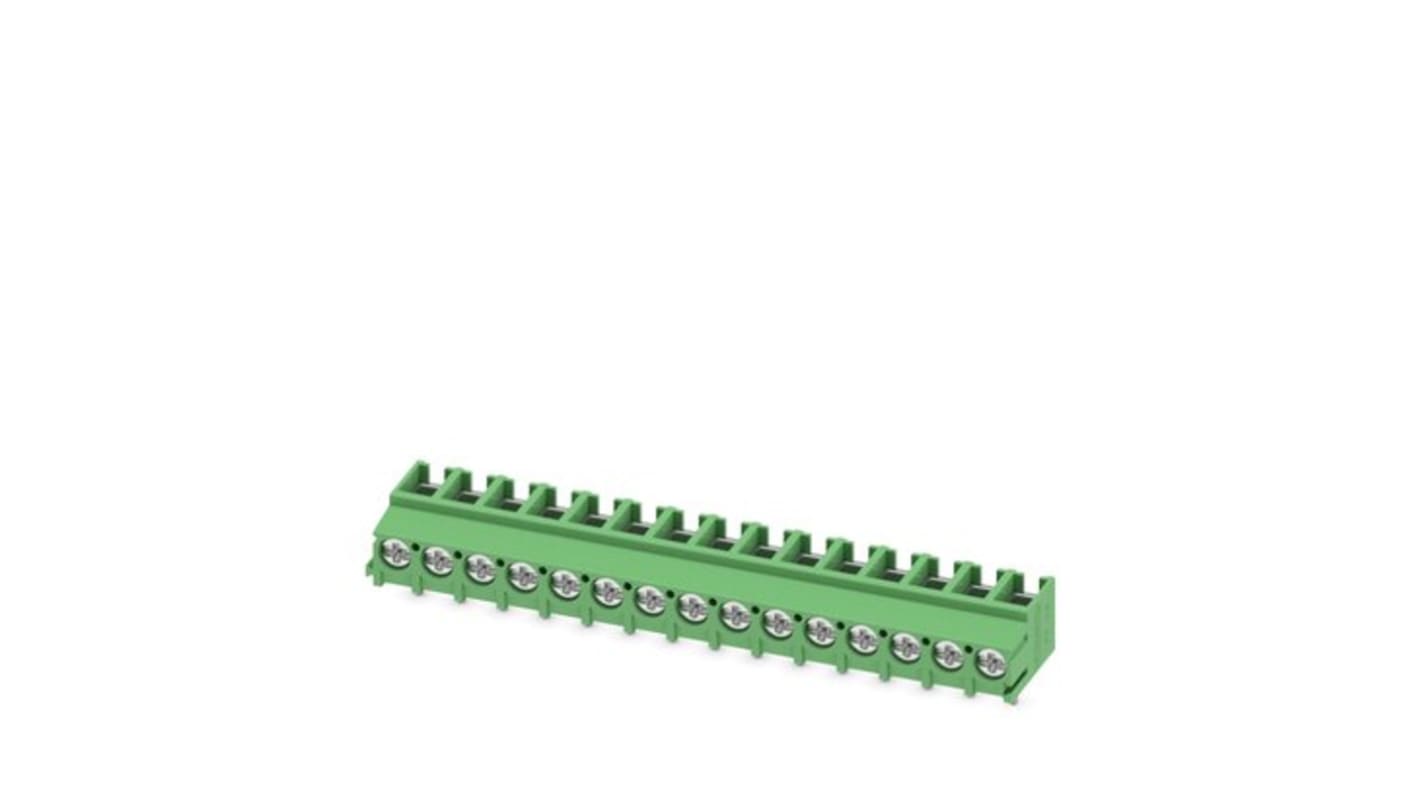

Phoenix Contact PT Series PCB Terminal Block, 15-Contact, 5 mm Pitch, PCB, 1 Row
- RS Stock No.:
- 284-0611
- Mfr. Part No.:
- 1987850
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£198.30
(exc. VAT)
£237.95
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £3.966 | £198.30 |
*price indicative
- RS Stock No.:
- 284-0611
- Mfr. Part No.:
- 1987850
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 15 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 32A | |
| Mount Type | PCB | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 8 AWG | |
| Maximum Wire Size AWG | 20 AWG | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 40 V | |
| Depth | 13.1mm | |
| Width | 75 mm | |
| Length | 13.5mm | |
| Series | PT | |
| Standards/Approvals | WEEE, RoHS, uULus VDE | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 15 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 32A | ||
Mount Type PCB | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 8 AWG | ||
Maximum Wire Size AWG 20 AWG | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 40 V | ||
Depth 13.1mm | ||
Width 75 mm | ||
Length 13.5mm | ||
Series PT | ||
Standards/Approvals WEEE, RoHS, uULus VDE | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block provides high capacity due to its rectangular terminal block space and allows the connection of two conductors. The latching on the side enables various numbers of positions to be combined.
Contact material copper alloy
Surface characteristics tin plated
