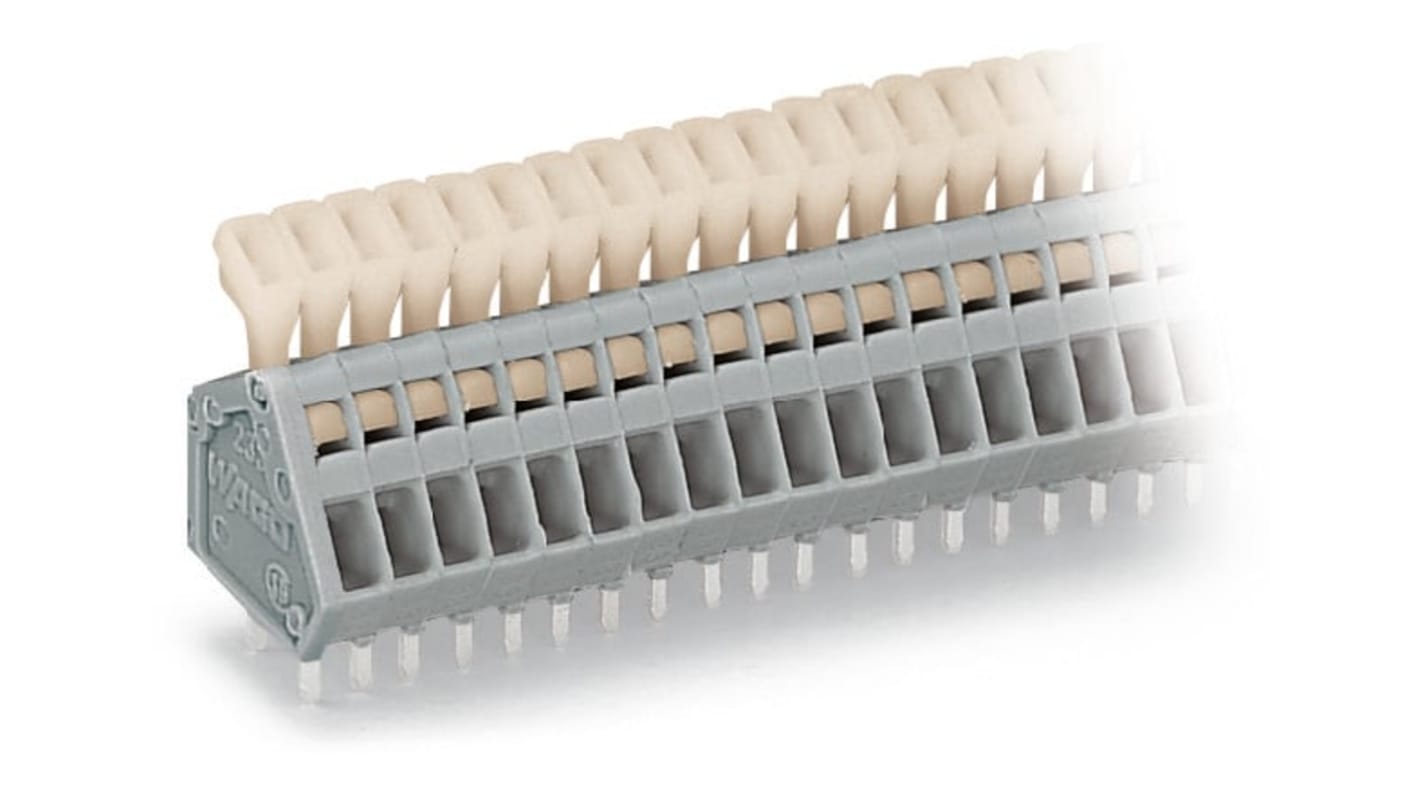

WAGO 233 Series PCB Terminal Block, 10-Contact, 2.5 mm Pitch, PCB
- RS Stock No.:
- 278-1651
- Mfr. Part No.:
- 233-210
- Brand:
- WAGO
Subtotal (45 units, in packs of 45)*
£185.90
(exc. VAT)
£223.07
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 45 + | £4.131 | £185.90 |
*price indicative
- RS Stock No.:
- 278-1651
- Mfr. Part No.:
- 233-210
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 10 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.5mm | |
| Current | 6A | |
| Housing Material | Polyamide 66 | |
| Mount Type | PCB | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Wire Connection Method | Cage Clamp | |
| Colour | Grey | |
| Width | 27.3mm | |
| Standards/Approvals | CSA, IEC/EN 60664-1, UL 1059 | |
| Series | 233 | |
| Depth | 13.9mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 10 | ||
Product Type PCB Terminal Block | ||
Pitch 2.5mm | ||
Current 6A | ||
Housing Material Polyamide 66 | ||
Mount Type PCB | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 20AWG | ||
Wire Connection Method Cage Clamp | ||
Colour Grey | ||
Width 27.3mm | ||
Standards/Approvals CSA, IEC/EN 60664-1, UL 1059 | ||
Series 233 | ||
Depth 13.9mm | ||
- COO (Country of Origin):
- CH
The WAGO PCB terminal block has double solder pins for high mechanical stability on PCB, that deal for in the field wiring thanks to simplified push button actuation.
Convenient and tool free operation
