WAGO 231 Series PCB Terminal Block, 6-Contact, 5 mm Pitch, Panel, 1 Row
- RS Stock No.:
- 278-0923
- Mfr. Part No.:
- 231-606/017-000
- Brand:
- WAGO
Subtotal (1 pack of 50 units)*
£128.80
(exc. VAT)
£154.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £2.576 | £128.80 |
*price indicative
- RS Stock No.:
- 278-0923
- Mfr. Part No.:
- 231-606/017-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 6 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 15A | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Panel | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | Horizontal | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 300V | |
| Standards/Approvals | C22.2, UL 1977, RoHS Compliant, IEC 61984, EN 61984 | |
| Depth | 19.1mm | |
| Series | 231 | |
| Width | 45.2mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 6 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 15A | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Panel | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation Horizontal | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 300V | ||
Standards/Approvals C22.2, UL 1977, RoHS Compliant, IEC 61984, EN 61984 | ||
Depth 19.1mm | ||
Series 231 | ||
Width 45.2mm | ||
- COO (Country of Origin):
- DE

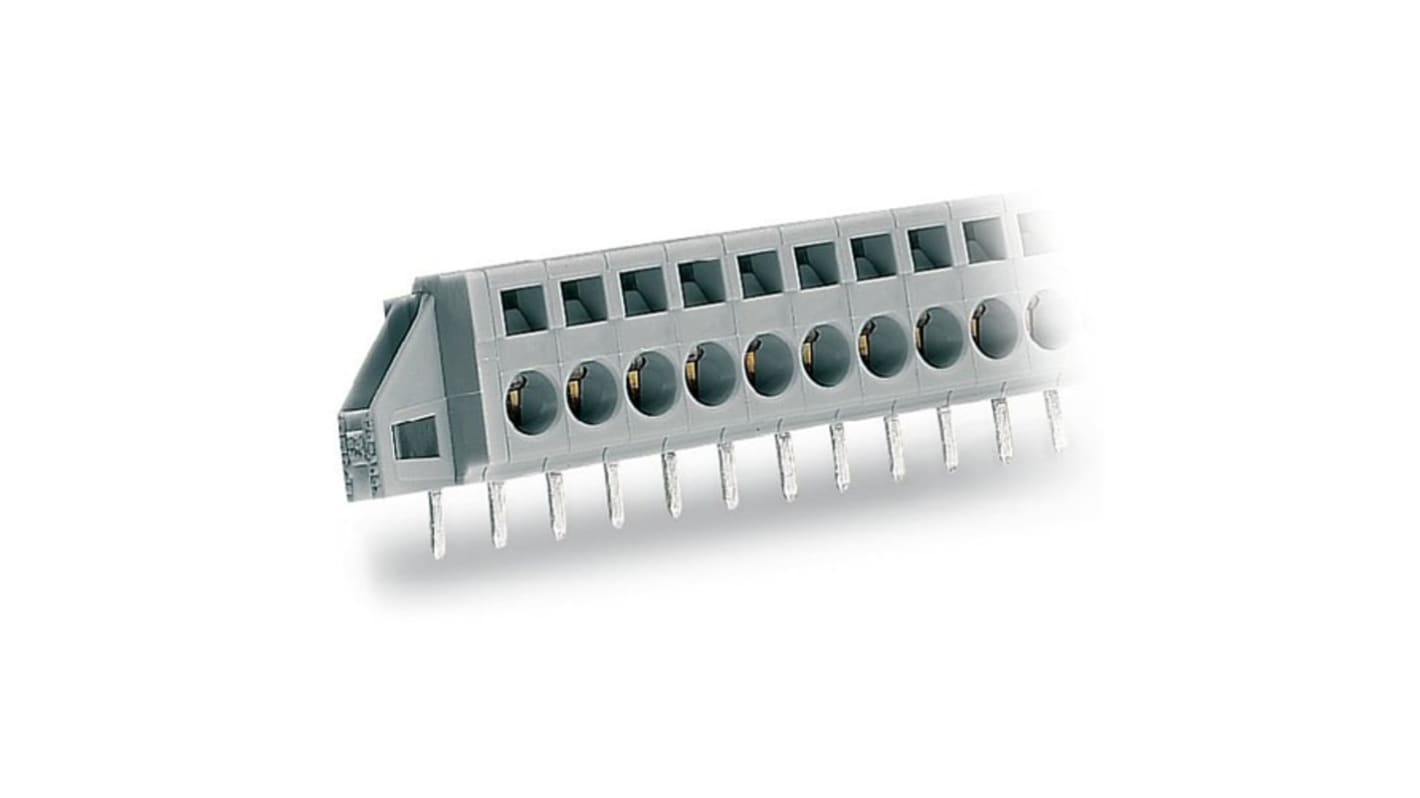

The WAGO PCB terminal block is capable of handling wires with a thickness of 2.5 mm². This PCB terminal black offers incorporation of CAGE CLAMP technology with the addition of a clamping collar. It is available in grey color.
RoHS compliant
V0 Flammability class per UL94
