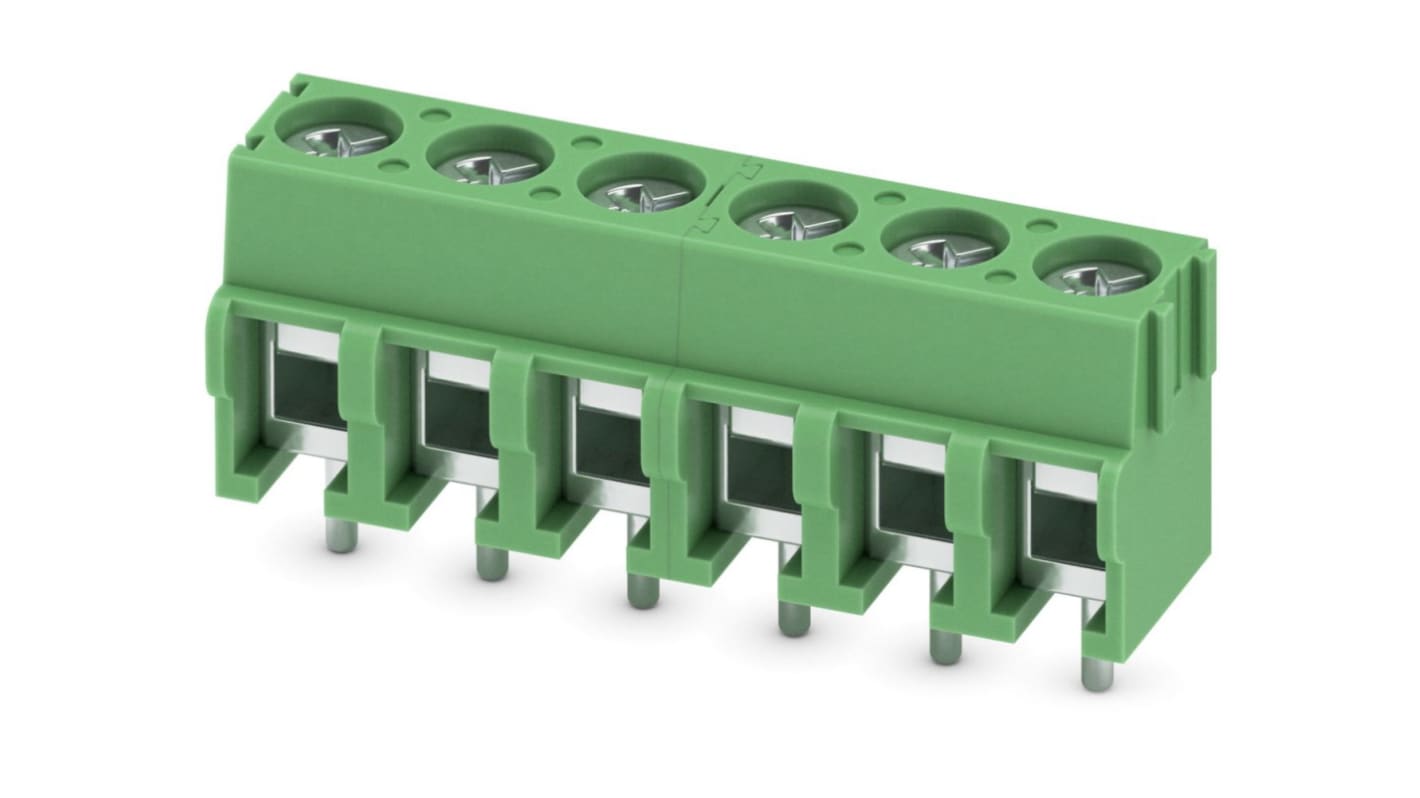

Phoenix Contact PT Series PCB Terminal Block, 6-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 268-4749
- Mfr. Part No.:
- 1935200
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 268-4749
- Mfr. Part No.:
- 1935200
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 6 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 400V | |
| Series | PT | |
| Width | 30mm | |
| Standards/Approvals | VDE Zeichengenehmigung, VDE Gutachten mit Fertigungsüberwachung, IECEE CB Scheme, EAC, cULus Recognised | |
| Length | 14.8mm | |
| Depth | 9mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 6 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 17.5A | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 400V | ||
Series PT | ||
Width 30mm | ||
Standards/Approvals VDE Zeichengenehmigung, VDE Gutachten mit Fertigungsüberwachung, IECEE CB Scheme, EAC, cULus Recognised | ||
Length 14.8mm | ||
Depth 9mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Terminal Block that has high Terminal Block capacity thanks to rectangular Terminal Block space. The latching on the side enables various numbers of positions to be combined.
Copper alloy contact material
Allows connection of two conductors
