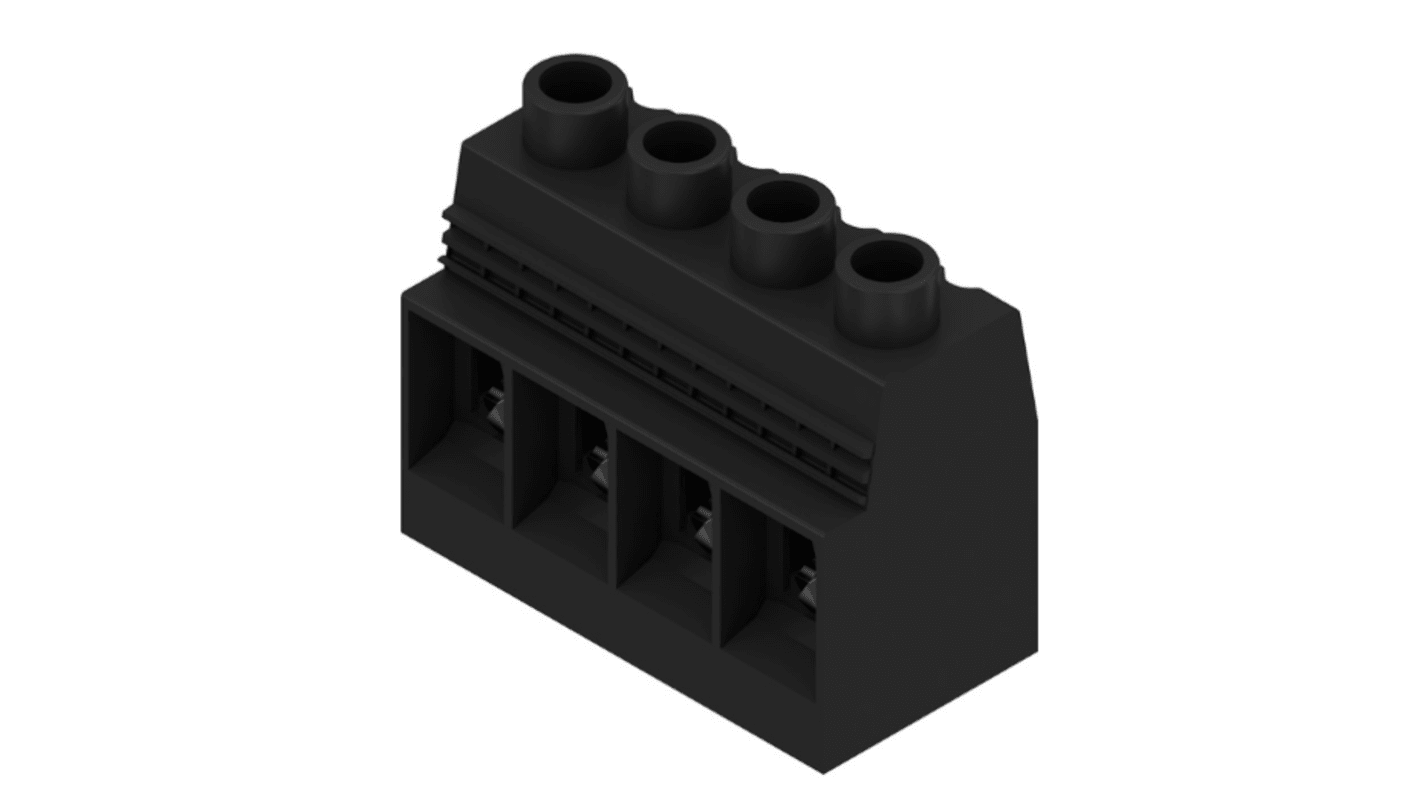

Weidmuller LXXX Series PCB Terminal, 4-Contact, 15mm Pitch, PCB Mount, 1-Row, PCB Termination

View all PCB Terminal Blocks

Subtotal (1 unit)*

£15.33

(exc. VAT)

£18.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£15.33

*price indicative

RS Stock No.:
214-4494
Mfr. Part No.:
1047150000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Number of Contacts

4

Pitch

15mm

Number of Rows

1

Mounting Type

PCB

Termination Method

PCB

Type

PCB Terminal

Current Rating

150A

Colour

Black

Voltage Rating

1 kV

Series

LXXX

Depth

31mm

Width

61mm

COO (Country of Origin):
CN

Weidmuller LXXX Series PCB Terminal, 15mm Pitch, 4 Contacts - 1047150000


This PCB terminal is a robust solution designed for high-current applications. With a capacity of up to 150A and a voltage rating of 1000V, it accommodates wires up to 50mm². Its dimensions include a pitch of 15mm and a single row configuration, making it suitable for various PCB mounting scenarios.

Features & Benefits


• Compact design reduces overall size and installation complexity
• High-current capacity supports demanding electrical requirements
• Utilises steel clamping-yoke technology for secure connections
• Black colour aids in compatibility with multiple requirements
• Enhanced power density facilitates miniaturisation in electronics

Applications


• Suitable for power distribution in automation systems
• Used for high-performance electrical installations
• Ideal for PCB needing reliable current transmission
• Recommended for various mechanical and electronic devices

What type of connection method does this terminal use?


The terminal features a clamping yoke connection, which aids in secure and reliable wire fastening.

Can this terminal be used for applications requiring high voltage?


Yes, it is rated for high voltage applications up to 1000V, ensuring safety in demanding environments.

Are there any specific temperature ratings for this terminal?


It operates effectively within a temperature range of -50 to 120 °C, allowing for use in various environments.

What specifications must be adhered to during installation?


The installation requires a stripping length of around 18mm for optimal performance, ensuring a secure connection.
