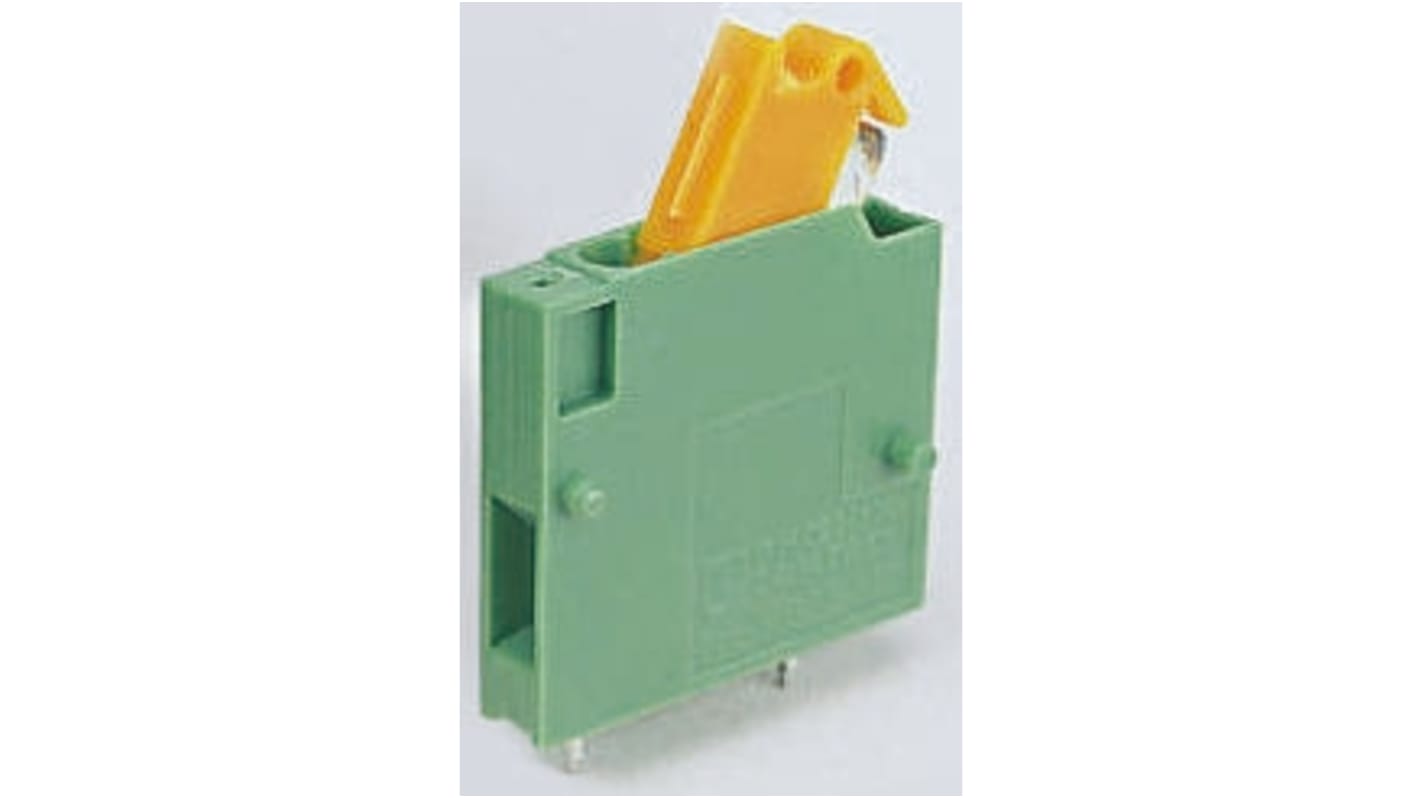

Phoenix Contact KDS 3-MT Series PCB Terminal Block, 1-Contact, 5.08 mm Pitch, 1 Row, 1780015
- RS Stock No.:
- 189-5988
- Distrelec Article No.:
- 304-29-316
- Mfr. Part No.:
- 1780015
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 5 units)*
£18.28
(exc. VAT)
£21.935
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £3.656 | £18.28 |
| 125 - 370 | £3.29 | £16.45 |
| 375 - 995 | £2.928 | £14.64 |
| 1000 - 1995 | £2.562 | £12.81 |
| 2000 + | £2.376 | £11.88 |
*price indicative
- RS Stock No.:
- 189-5988
- Distrelec Article No.:
- 304-29-316
- Mfr. Part No.:
- 1780015
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 1 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 15A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 320V | |
| Standards/Approvals | No | |
| Width | 24.8mm | |
| Length | 11.66mm | |
| Depth | 27mm | |
| Series | KDS 3-MT | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 1 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 15A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Connector Gender Female | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 320V | ||
Standards/Approvals No | ||
Width 24.8mm | ||
Length 11.66mm | ||
Depth 27mm | ||
Series KDS 3-MT | ||
- COO (Country of Origin):
- DE
Phoenix Contact COMBICON KDS 5.08mm PCB Terminal Blocks with Knife Disconnect
KDS 3-MT terminal blocks for PCBs have a uniform design with matching side faces; this means they can be stacked side by side without spoiling the homogeneity of the header
Approvals
UL (E60425); CSA (LR13631)
