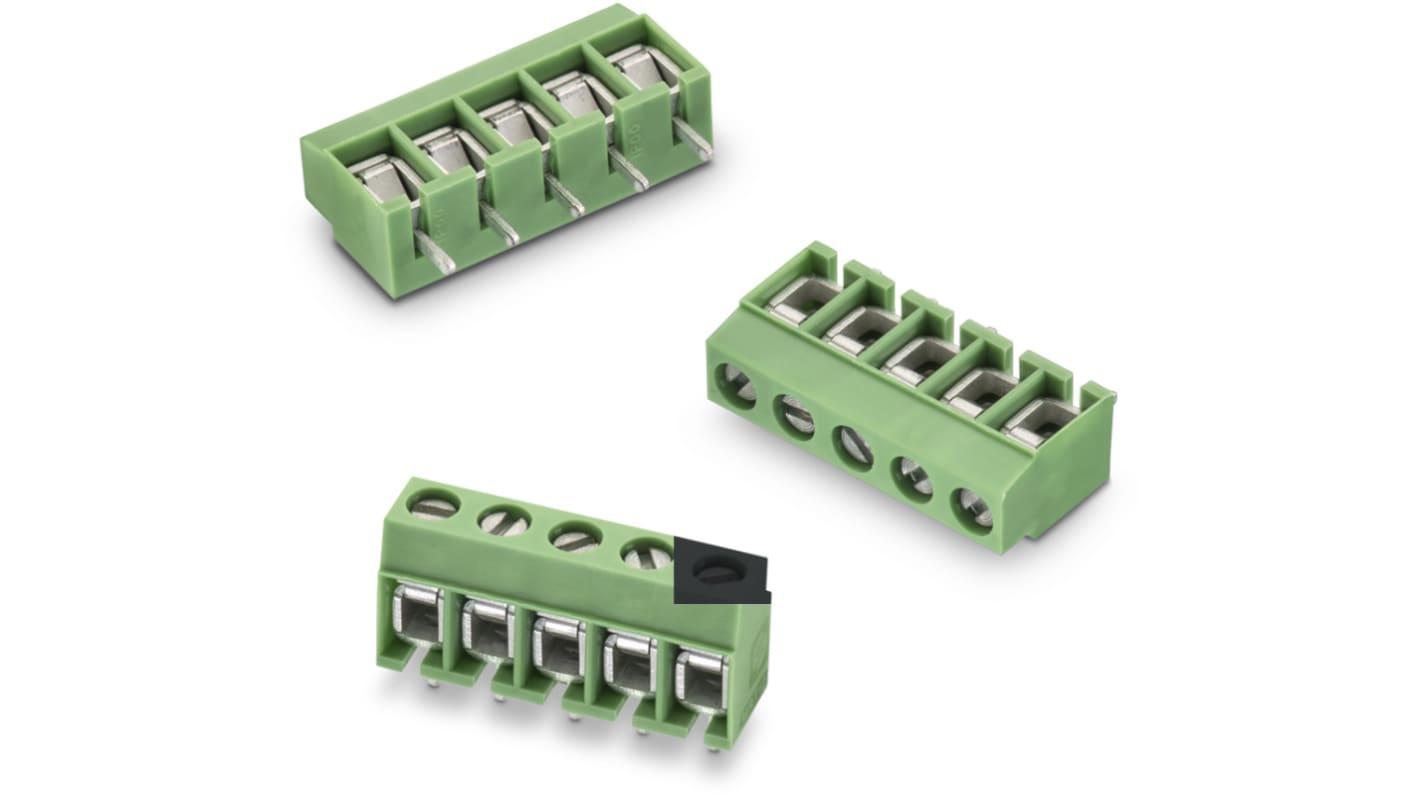

Wurth Elektronik WR-TBL Series PCB Terminal Block, 2-Contact, 5 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 177-0020
- Mfr. Part No.:
- 691137710002
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£2.37
(exc. VAT)
£2.845
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 150 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £0.474 | £2.37 |
| 25 - 45 | £0.424 | £2.12 |
| 50 - 95 | £0.386 | £1.93 |
| 100 - 245 | £0.356 | £1.78 |
| 250 + | £0.328 | £1.64 |
*price indicative
- RS Stock No.:
- 177-0020
- Mfr. Part No.:
- 691137710002
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 5mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.5mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Horizontal | |
| Colour | Green | |
| Voltage | 250V ac | |
| Depth | 11.5mm | |
| Series | WR-TBL | |
| Standards/Approvals | cULus, VDE, RoHS | |
| Width | 7.5mm | |
| Length | 10mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type PCB Terminal Block | ||
Number of Contacts 2 | ||
Pitch 5mm | ||
Current 24A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.5mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Horizontal | ||
Colour Green | ||
Voltage 250V ac | ||
Depth 11.5mm | ||
Series WR-TBL | ||
Standards/Approvals cULus, VDE, RoHS | ||
Width 7.5mm | ||
Length 10mm | ||
- COO (Country of Origin):
- IT
The Wurth Elektronik WR-TBL series 1377 is a 5.00 mm, horizontal entry type, pressure clamp glow wire with 2 pins and copper alloy pin material. It is used as wire protector.
RoHS compliant
Halogen free
Green insulator colour
6mm wire strip length
M2.5 screw size
Operating temperature ranging between -30°C up to +110°C
