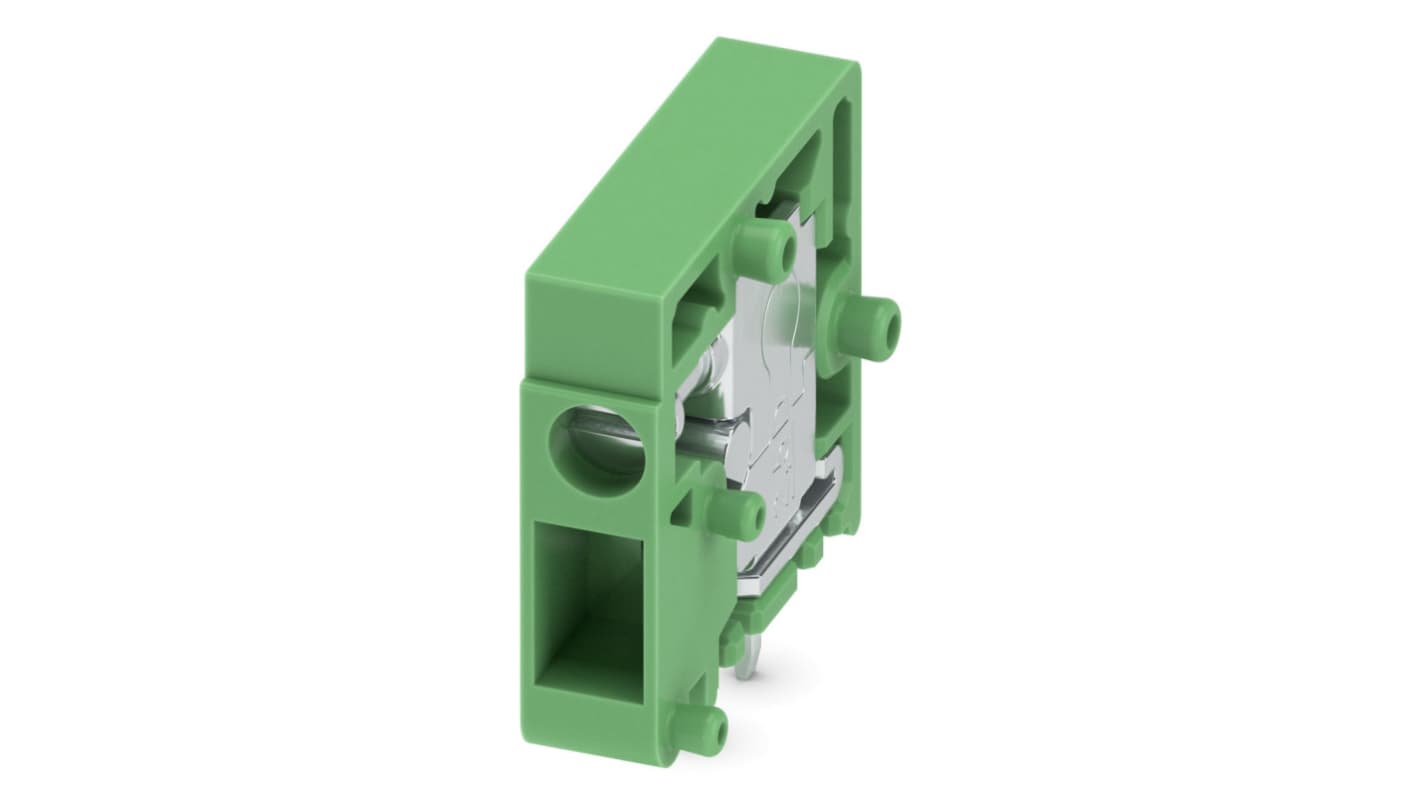

Phoenix Contact FRONT 2.5-H/SA 5 Series PCB Terminal Block, 1-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw
- RS Stock No.:
- 176-1432
- Mfr. Part No.:
- 1700008
- Brand:
- Phoenix Contact
Save 38% when you buy 500 units
Subtotal (1 pack of 5 units)*
£7.22
(exc. VAT)
£8.665
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 55 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.444 | £7.22 |
| 25 - 120 | £1.16 | £5.80 |
| 125 - 245 | £1.022 | £5.11 |
| 250 - 495 | £0.936 | £4.68 |
| 500 + | £0.892 | £4.46 |
*price indicative
- RS Stock No.:
- 176-1432
- Mfr. Part No.:
- 1700008
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 1 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Gender | Male | |
| Termination Method | Screw | |
| Type | PCB Terminal Block | |
| Current Rating | 24A | |
| Body Orientation | Straight | |
| Colour | Green | |
| Voltage Rating | 400 V | |
| Series | FRONT 2.5-H/SA 5 | |
| Width | 7.5mm | |
| Depth | 22mm | |
| Material | Polyamide | |
| Length | 19.5mm | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 1 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Mounting Type Through Hole | ||
Gender Male | ||
Termination Method Screw | ||
Type PCB Terminal Block | ||
Current Rating 24A | ||
Body Orientation Straight | ||
Colour Green | ||
Voltage Rating 400 V | ||
Series FRONT 2.5-H/SA 5 | ||
Width 7.5mm | ||
Depth 22mm | ||
Material Polyamide | ||
Length 19.5mm | ||
PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 1, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, colour: green. The article can be aligned to create different nos. of positions!
