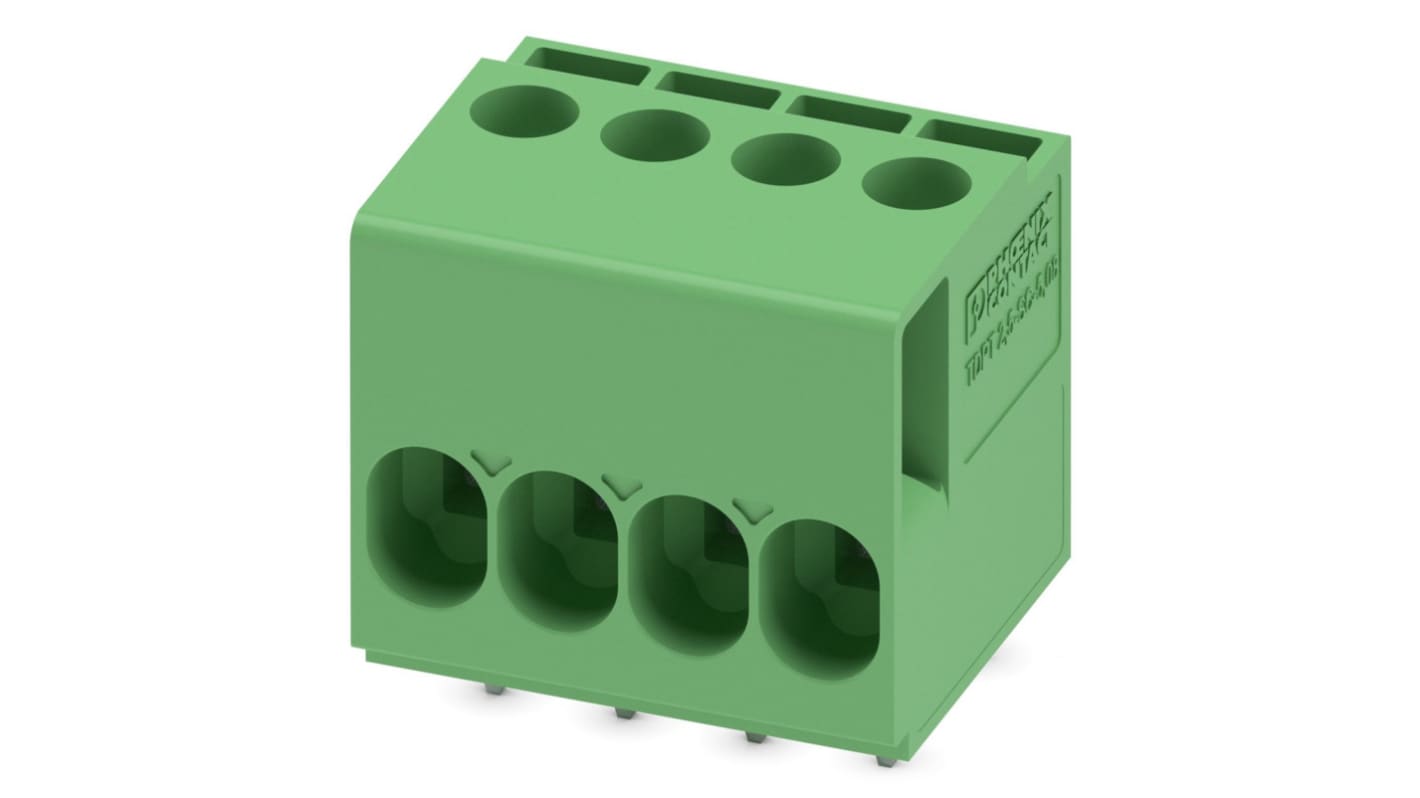

Phoenix Contact TDPT 2.5/ 4-SC-5.08 Series PCB Terminal Block, 4-Contact, 5.08 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 175-3875
- Distrelec Article No.:
- 304-29-228
- Mfr. Part No.:
- 1017493
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.21
(exc. VAT)
£8.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 45 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £1.442 | £7.21 |
| 10 - 20 | £1.276 | £6.38 |
| 25 - 45 | £1.242 | £6.21 |
| 50 + | £1.208 | £6.04 |
*price indicative
- RS Stock No.:
- 175-3875
- Distrelec Article No.:
- 304-29-228
- Mfr. Part No.:
- 1017493
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 4 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 400 V | |
| Standards/Approvals | WEEE/RoHS-compliant | |
| Length | 18mm | |
| Depth | 19mm | |
| Width | 21.12 mm | |
| Series | TDPT 2.5/ 4-SC-5.08 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 4 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 24A | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 400 V | ||
Standards/Approvals WEEE/RoHS-compliant | ||
Length 18mm | ||
Depth 19mm | ||
Width 21.12 mm | ||
Series TDPT 2.5/ 4-SC-5.08 | ||
- COO (Country of Origin):
- CN
PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 4, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green
Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
