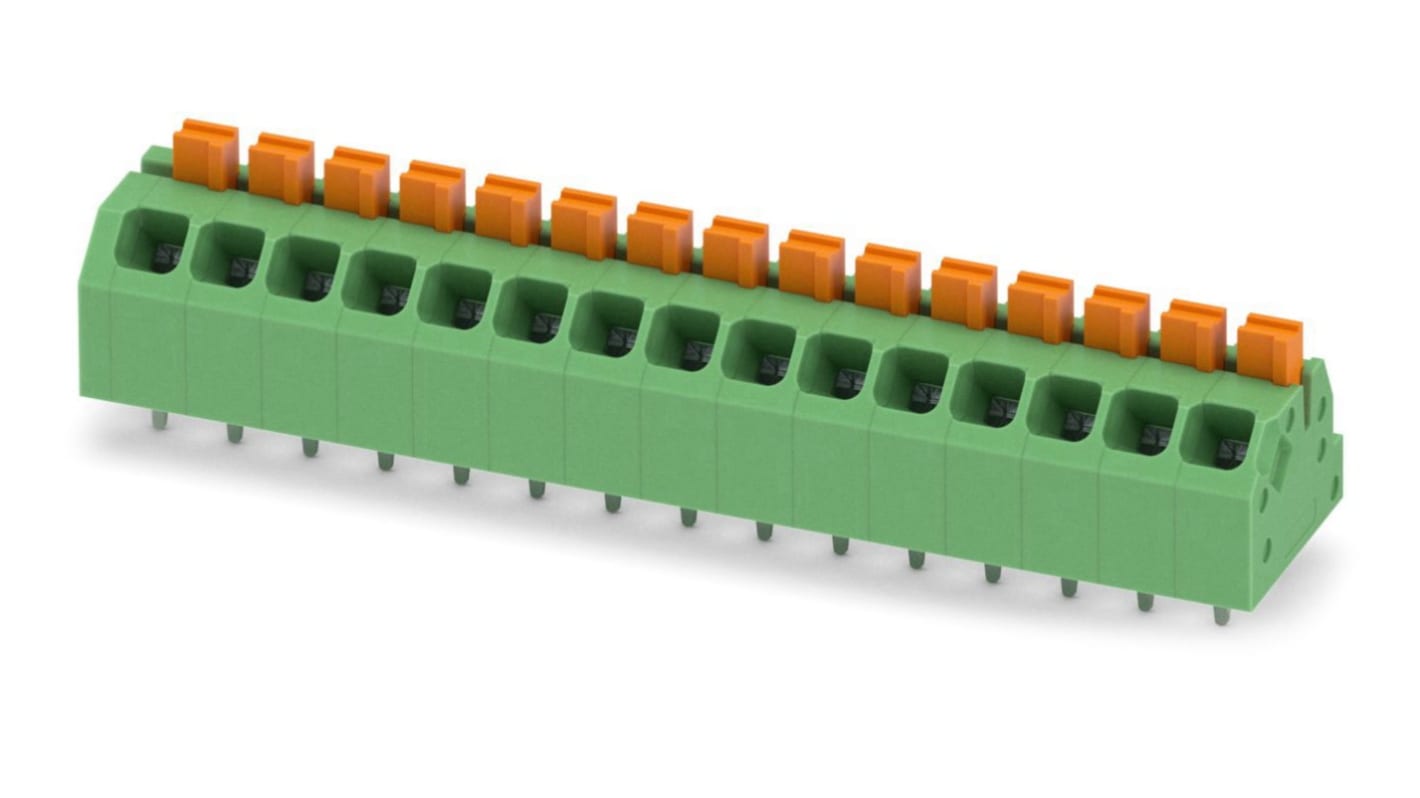

Phoenix Contact SPTAF 1/15-3.5-EL Series PCB Terminal Block, 15-Contact, 3.5 mm Pitch, Wave Soldering Mount, 2 Row
- RS Stock No.:
- 151-1327
- Mfr. Part No.:
- 1862259
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 box of 50 units)*
£196.50
(exc. VAT)
£236.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 50 - 50 | £3.93 | £196.50 |
| 100 - 200 | £3.82 | £191.00 |
| 250 - 450 | £3.718 | £185.90 |
| 500 - 950 | £3.619 | £180.95 |
| 1000 + | £3.525 | £176.25 |
*price indicative
- RS Stock No.:
- 151-1327
- Mfr. Part No.:
- 1862259
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 15 | |
| Pitch | 3.5mm | |
| Current | 16A | |
| Number of Rows | 2 | |
| Mount Type | Wave Soldering Mount | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Angled | |
| Colour | Green | |
| Wire Connection Method | Spring | |
| Voltage | 160V | |
| Series | SPTAF 1/15-3.5-EL | |
| Width | 11mm | |
| Standards/Approvals | cULus Recognised, EU RoHS | |
| Length | 54mm | |
| Depth | 12.8mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 15 | ||
Pitch 3.5mm | ||
Current 16A | ||
Number of Rows 2 | ||
Mount Type Wave Soldering Mount | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Angled | ||
Colour Green | ||
Wire Connection Method Spring | ||
Voltage 160V | ||
Series SPTAF 1/15-3.5-EL | ||
Width 11mm | ||
Standards/Approvals cULus Recognised, EU RoHS | ||
Length 54mm | ||
Depth 12.8mm | ||
PCB Terminal block, nominal current: 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 15, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Finger-operated release button for very convenient operation
Small component size for applications where space is at a premium
Quick and convenient testing using integrated test option
