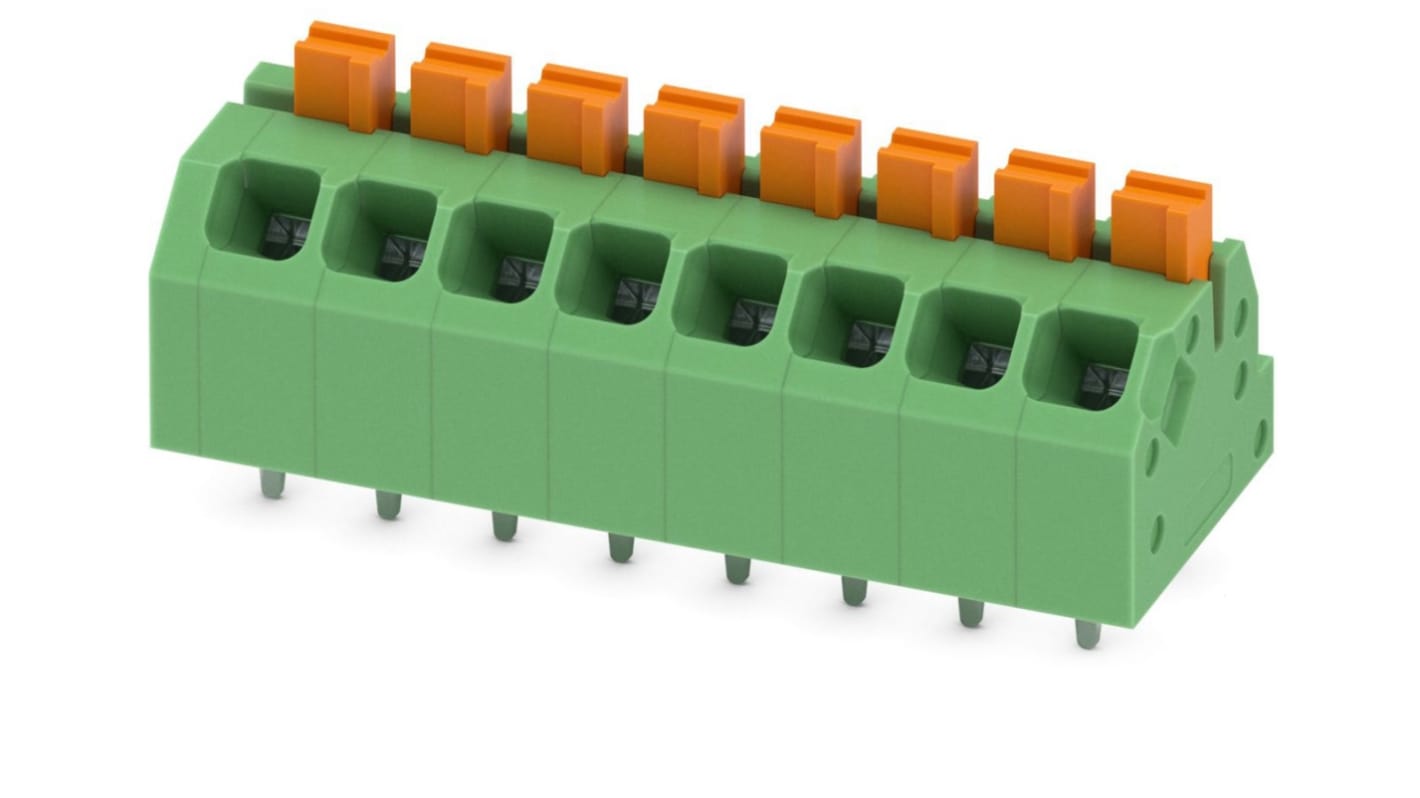

Phoenix Contact SPTAF 1/ 8-3.5-EL Series PCB Terminal Block, 8-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Push In
- RS Stock No.:
- 151-1314
- Mfr. Part No.:
- 1862107
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 box of 50 units)*
£97.90
(exc. VAT)
£117.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 500 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 - 50 | £1.958 | £97.90 |
100 - 200 | £1.807 | £90.35 |
250 - 450 | £1.674 | £83.70 |
500 - 950 | £1.586 | £79.30 |
1000 + | £1.498 | £74.90 |
*price indicative
- RS Stock No.:
- 151-1314
- Mfr. Part No.:
- 1862107
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 8 | |
Pitch | 3.5mm | |
Number of Rows | 1 | |
Mounting Type | Through Hole | |
Gender | Male | |
Termination Method | Push In Spring | |
Type | PCB Terminal Block | |
Current Rating | 16A | |
Body Orientation | Angled | |
Colour | Green | |
Voltage Rating | 160 V | |
Series | SPTAF 1/ 8-3.5-EL | |
Width | 29.5mm | |
Material | PA (Insulate) | |
Depth | 10.2mm | |
Length | 11mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Mounting Type Through Hole | ||
Gender Male | ||
Termination Method Push In Spring | ||
Type PCB Terminal Block | ||
Current Rating 16A | ||
Body Orientation Angled | ||
Colour Green | ||
Voltage Rating 160 V | ||
Series SPTAF 1/ 8-3.5-EL | ||
Width 29.5mm | ||
Material PA (Insulate) | ||
Depth 10.2mm | ||
Length 11mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact SPTAF 1/ 8-3.5-EL Series PCB Terminal Block, 16A Current Rating, Polyamide - 1862107
This PCB terminal block ensures dependable connections across various electronic applications. Its angled orientation and sturdy construction make it suitable for wave soldering processes. Featuring a green polyamide body, it meets the requirements of automation, electronics, and electrical industries. This terminal block is practical for both prototyping and production.
Features & Benefits
• Supports a current rating of 16A for effective performance
• Utilises a 3.5mm pitch, allowing for compact layouts
• Angled design facilitates installation in confined spaces
• Designed for wave soldering to provide strong electrical connections
• Constructed from durable polyamide for extended durability
• Male configuration enables easy integration with connectors
• Utilises a 3.5mm pitch, allowing for compact layouts
• Angled design facilitates installation in confined spaces
• Designed for wave soldering to provide strong electrical connections
• Constructed from durable polyamide for extended durability
• Male configuration enables easy integration with connectors
Applications
• Suitable for circuit boards in control systems
• Employed in power distribution units for efficient connectivity
• Used in automation equipment for interfacing purposes
• Ideal for electronic devices necessitating robust connections
• Employed in power distribution units for efficient connectivity
• Used in automation equipment for interfacing purposes
• Ideal for electronic devices necessitating robust connections
What soldering method is recommended for installation?
Wave soldering is the preferred method for installation due to its design.
Can it be used in high-temperature environments?
Yes, the polyamide material offers good thermal stability for varied conditions.
What is the maximum voltage rating this component can handle?
It can effectively manage voltage ratings of up to 160V.
Is it compatible with other connector types?
It is primarily designed to function with male connectors, ensuring compatibility with corresponding female types.
