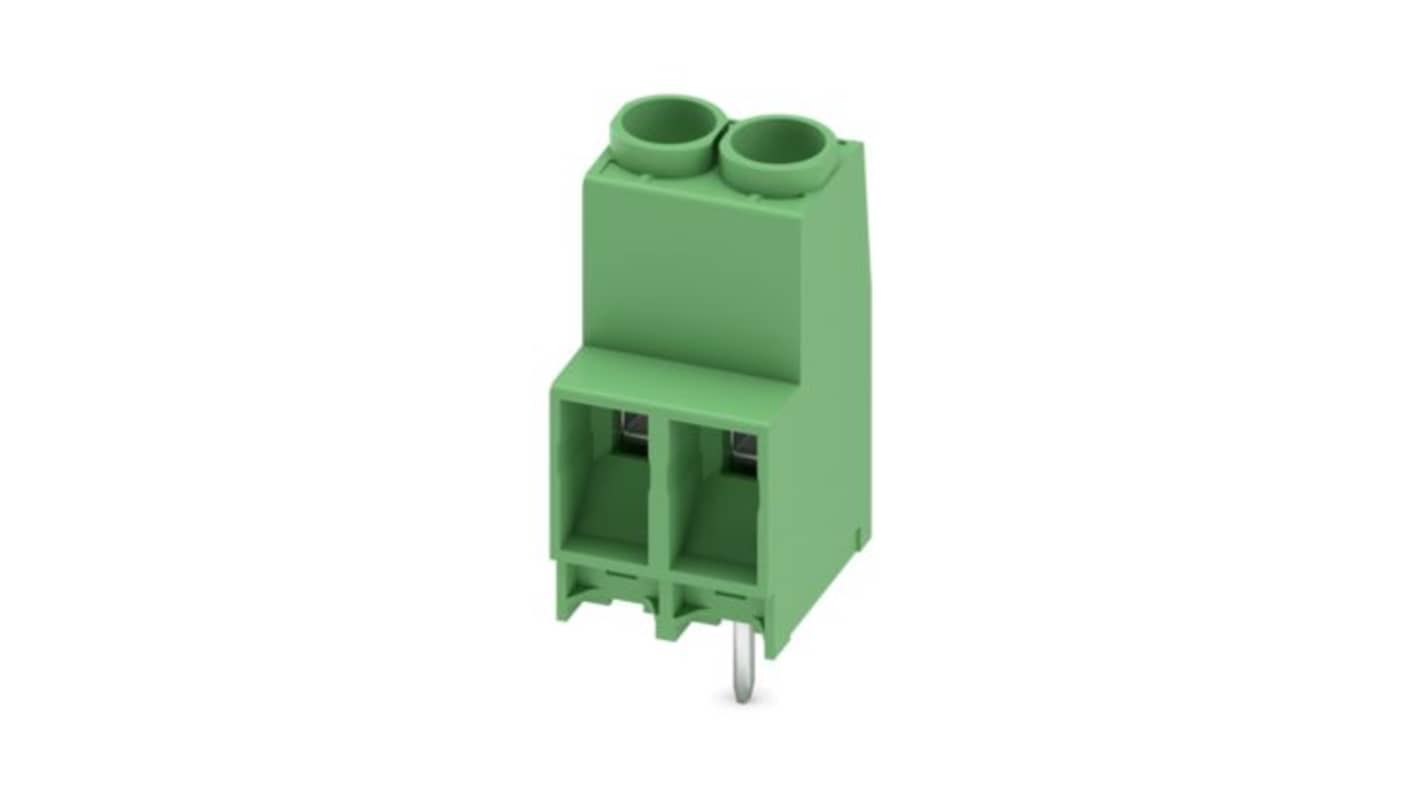

Phoenix Contact MKDS 5 N HV Series PCB Terminal Block, 2-Contact, 6.35 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 638-774
- Mfr. Part No.:
- 1777545
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£96.97
(exc. VAT)
£116.36
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £96.97 | £1.939 |
*price indicative
- RS Stock No.:
- 638-774
- Mfr. Part No.:
- 1777545
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 6.35mm | |
| Current | 41A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 1000V | |
| Standards/Approvals | IEC 60998-1:2002-12, IEC 60947-7-4:2013-08, IEC 60998-2-1:2002-12, UL 94 V0, VDE approval, cULus Recognised, EN 60695-2-12, EN 60695-2-13 | |
| Width | 12.7mm | |
| Length | 15.85mm | |
| Series | MKDS 5 N HV | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 2 | ||
Pitch 6.35mm | ||
Current 41A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 10AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 1000V | ||
Standards/Approvals IEC 60998-1:2002-12, IEC 60947-7-4:2013-08, IEC 60998-2-1:2002-12, UL 94 V0, VDE approval, cULus Recognised, EN 60695-2-12, EN 60695-2-13 | ||
Width 12.7mm | ||
Length 15.85mm | ||
Series MKDS 5 N HV | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block is specifically designed for efficient connections in various electronic applications. The MKDS 5N HV/2-ZB-6,35 features a robust construction with a nominal current rating of 41 A and a high voltage capacity of 1000 V, ensuring reliability and performance. Its innovative screw connection method, complemented by tension sleeves, allows for secure conductor connections while facilitating ease of installation through wave soldering techniques. The product's zigzag pinning enhances space efficiency on printed circuit boards, making it an ideal choice for both compact and complex electronic assemblies.
Packed in cardboard for sustainable and safe shipping
Meets compliance with IEC and UL standards for added assurance
Weight efficient design suitable for various assembly processes
