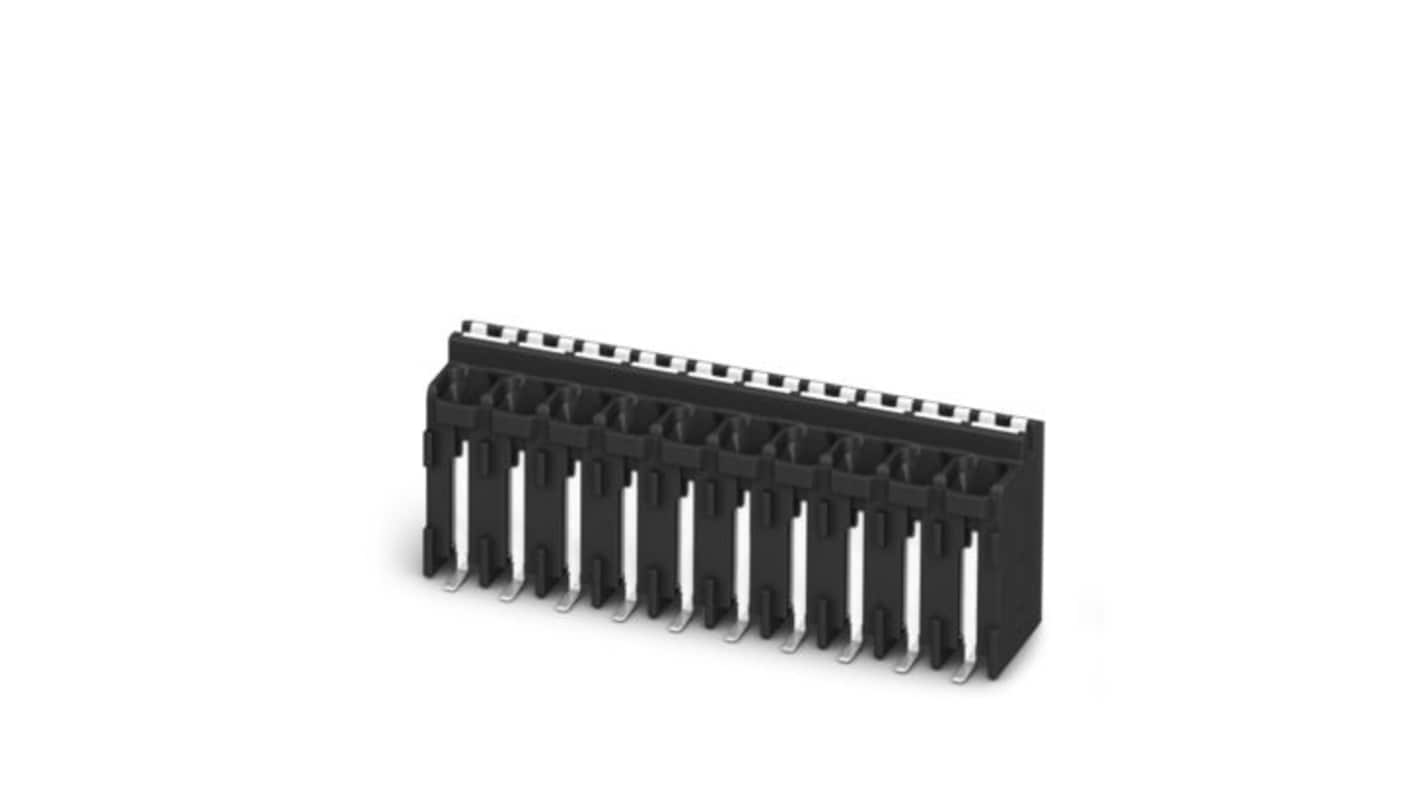

Phoenix Contact SPT Series PCB Terminal Block, 8-Contact, 3.81 mm Pitch, Solder, 1 Row
- RS Stock No.:
- 638-370
- Mfr. Part No.:
- 1824255
- Brand:
- Phoenix Contact
Subtotal (1 pack of 200 units)*
£1,150.39
(exc. VAT)
£1,380.47
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,150.39 | £5.752 |
*price indicative
- RS Stock No.:
- 638-370
- Mfr. Part No.:
- 1824255
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.81mm | |
| Current | 17.5A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 90° | |
| Wire Connection Method | Push-in | |
| Colour | Black | |
| Voltage | 160V | |
| Length | 7.7mm | |
| Standards/Approvals | IEC 60998-2-2:2002-12, VDE, cULus, IEC 60664-1:2007-04, IEC 60947-7-4:2019-01, IEC 60998-1:2002-12 | |
| Width | 30.67mm | |
| Series | SPT | |
| Depth | 7.7mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type PCB Terminal Block | ||
Pitch 3.81mm | ||
Current 17.5A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Solder | ||
Housing Material Liquid Crystal Polymer | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 90° | ||
Wire Connection Method Push-in | ||
Colour Black | ||
Voltage 160V | ||
Length 7.7mm | ||
Standards/Approvals IEC 60998-2-2:2002-12, VDE, cULus, IEC 60664-1:2007-04, IEC 60947-7-4:2019-01, IEC 60998-1:2002-12 | ||
Width 30.67mm | ||
Series SPT | ||
Depth 7.7mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block is specifically designed for efficient and reliable connections in electronic circuits. Utilising the innovative push-in spring connection method, it allows for tool-free installation, significantly reducing assembly time. The compact SPT 1.5/-V-SMD series features a pitch of 3.81 mm and accommodates 8 positions, enhancing versatility in space-constrained applications. With robust electrical properties, it supports a nominal current of 17.5 A and a rated voltage of 160 V, ensuring consistent performance across various environments.
Provides two soldering spots per position for reduced mechanical strain during assembly
Constructed from high quality materials ensuring compliance with EU RoHS directives
Tested for various mechanical and electrical properties to ensure reliability in demanding applications
