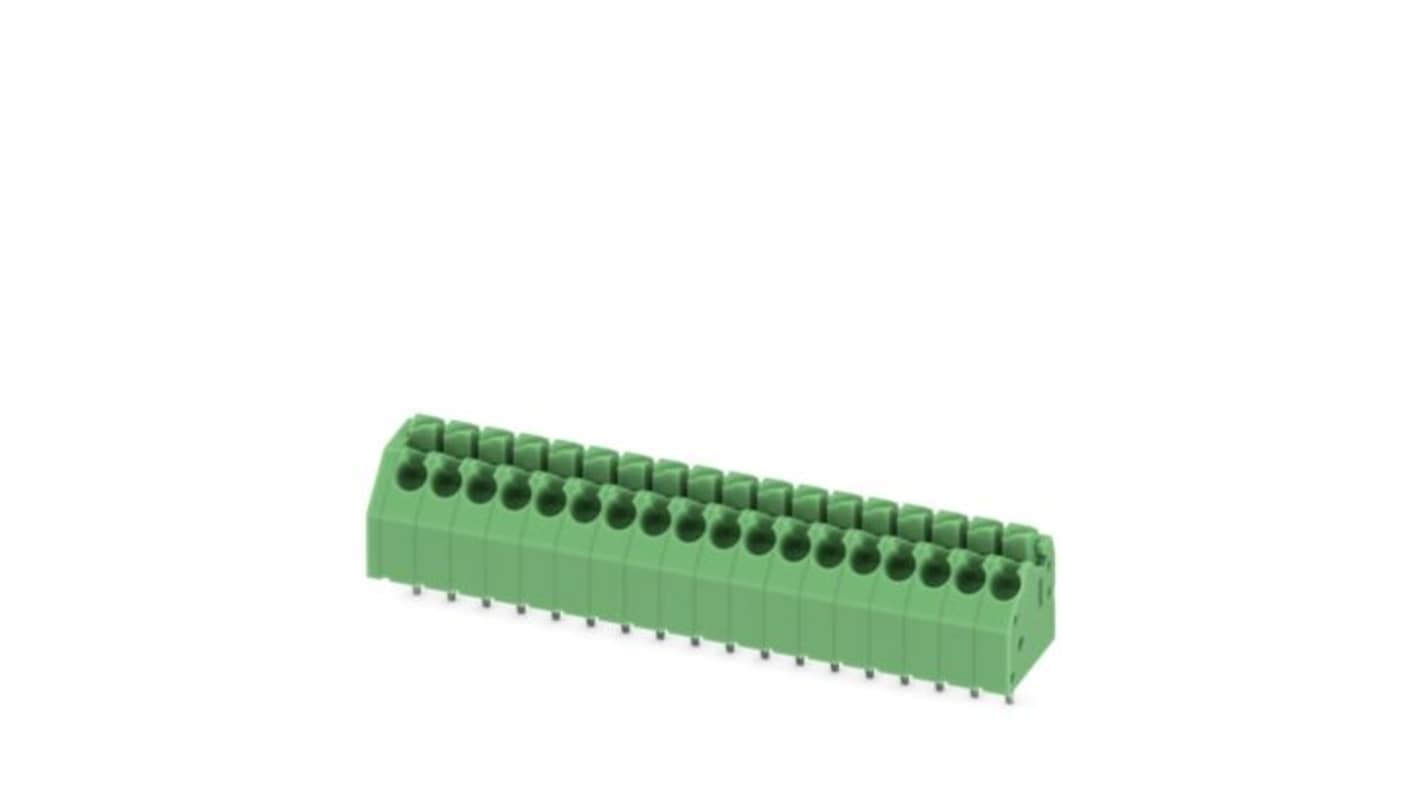

Phoenix Contact PCB Terminal Block, 18-Contact, 3.5 mm Pitch, 1 Row, 1985124
- RS Stock No.:
- 610-004
- Mfr. Part No.:
- 1985124
- Brand:
- Phoenix Contact
Subtotal (1 pack of 40 units)*
£191.55
(exc. VAT)
£229.86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £191.55 | £4.789 |
*price indicative
- RS Stock No.:
- 610-004
- Mfr. Part No.:
- 1985124
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 18 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push-in | |
| Colour | Green | |
| Voltage | 25V | |
| Length | 12mm | |
| Width | 64.5mm | |
| Standards/Approvals | VDE, cULus Recognised | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 18 | ||
Product Type PCB Terminal Block | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 45° | ||
Wire Connection Method Push-in | ||
Colour Green | ||
Voltage 25V | ||
Length 12mm | ||
Width 64.5mm | ||
Standards/Approvals VDE, cULus Recognised | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB terminal block is designed for efficient connection and reliability in various applications. With an innovative push-in spring connection method, it guarantees quick and tool-free installation. The compact design allows for a high number of connections within a minimal space, making it ideal for densely packed electronic circuit boards. Its robust construction is compliant with the latest standards, ensuring longevity in challenging environments. The terminal block's green housing not only enhances visibility but also denotes compliance with environmental legislation, offering peace of mind for sustainable operations.
Manufactured with a copper alloy for superior conductivity and durability
WEEE/RoHS compliant, minimising environmental impact
Provides precise mounting and assembly with defined contact force
Includes multiple connection options to accommodate rigid and flexible conductors
