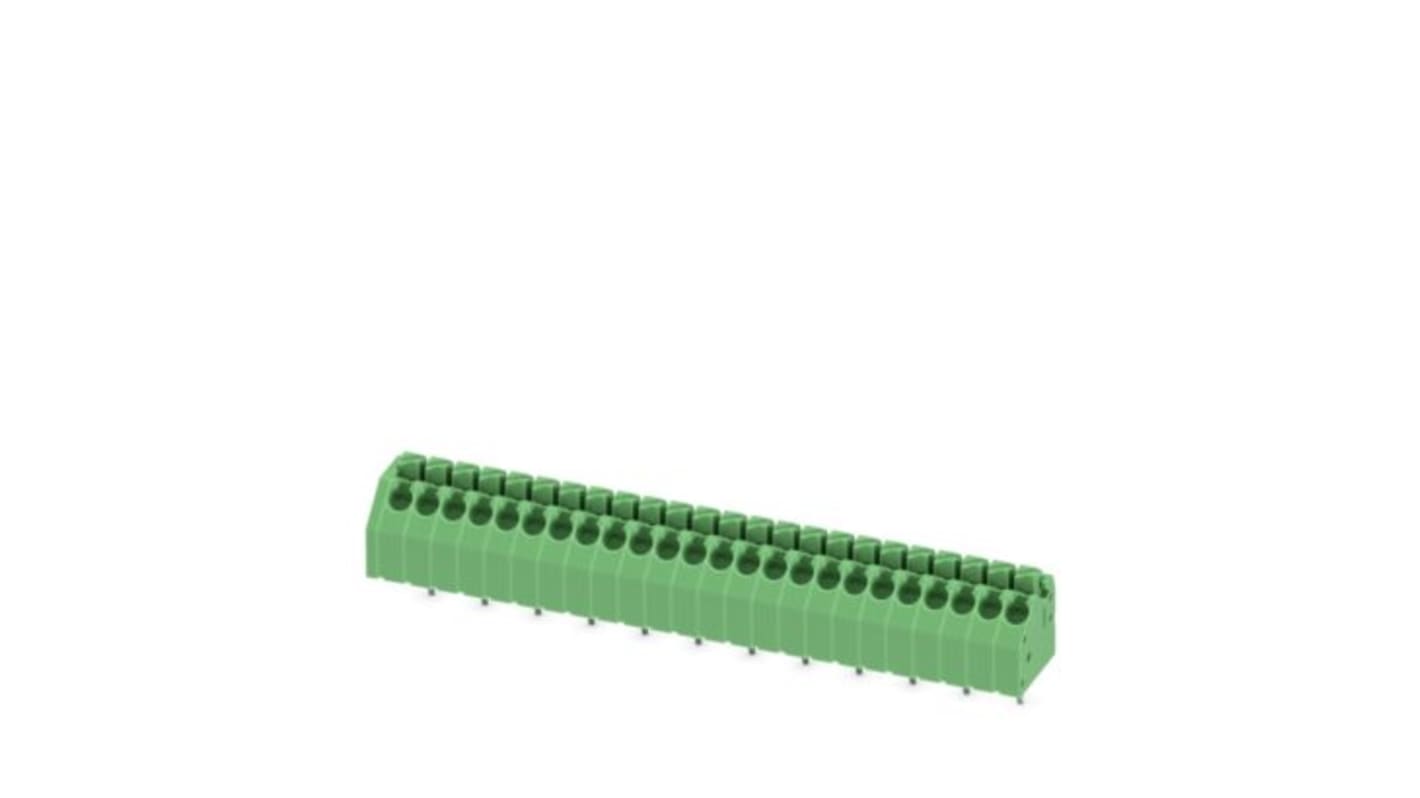

Phoenix Contact PTSA Series PCB Terminal Block, 24-Contact, 3.5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 558-299
- Mfr. Part No.:
- 1985412
- Brand:
- Phoenix Contact
Subtotal (1 pack of 40 units)*
£141.89
(exc. VAT)
£170.27
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £141.89 | £3.547 |
*price indicative
- RS Stock No.:
- 558-299
- Mfr. Part No.:
- 1985412
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 24 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push-in Spring | |
| Colour | Green | |
| Voltage | 40V | |
| Standards/Approvals | cULus Recognised, VDE | |
| Length | 12mm | |
| Series | PTSA | |
| Width | 85.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 24 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 45° | ||
Wire Connection Method Push-in Spring | ||
Colour Green | ||
Voltage 40V | ||
Standards/Approvals cULus Recognised, VDE | ||
Length 12mm | ||
Series PTSA | ||
Width 85.5mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact Printed circuit board terminal is designed to handle a nominal current of 8 A and a rated voltage of 400 V . It features a nominal cross section of 1.5 mm² and provides twenty-four potential connections arranged in one row, with twenty four positions per row. The terminal has a 3.5 mm pitch and uses a push-in spring connection method, ideal for wave soldering. The conductor to PCB connection is at a 45° angle, and the terminal is green in color. It features zigzag pinning with a W layout, and each potential has a 3.5 mm solder pin, with one solder pin per potential.
Time saving push in connection and tools not required
Defined contact force ensures that contact remains stable over the long term
Angled connection enables multi row arrangement on the PCB
