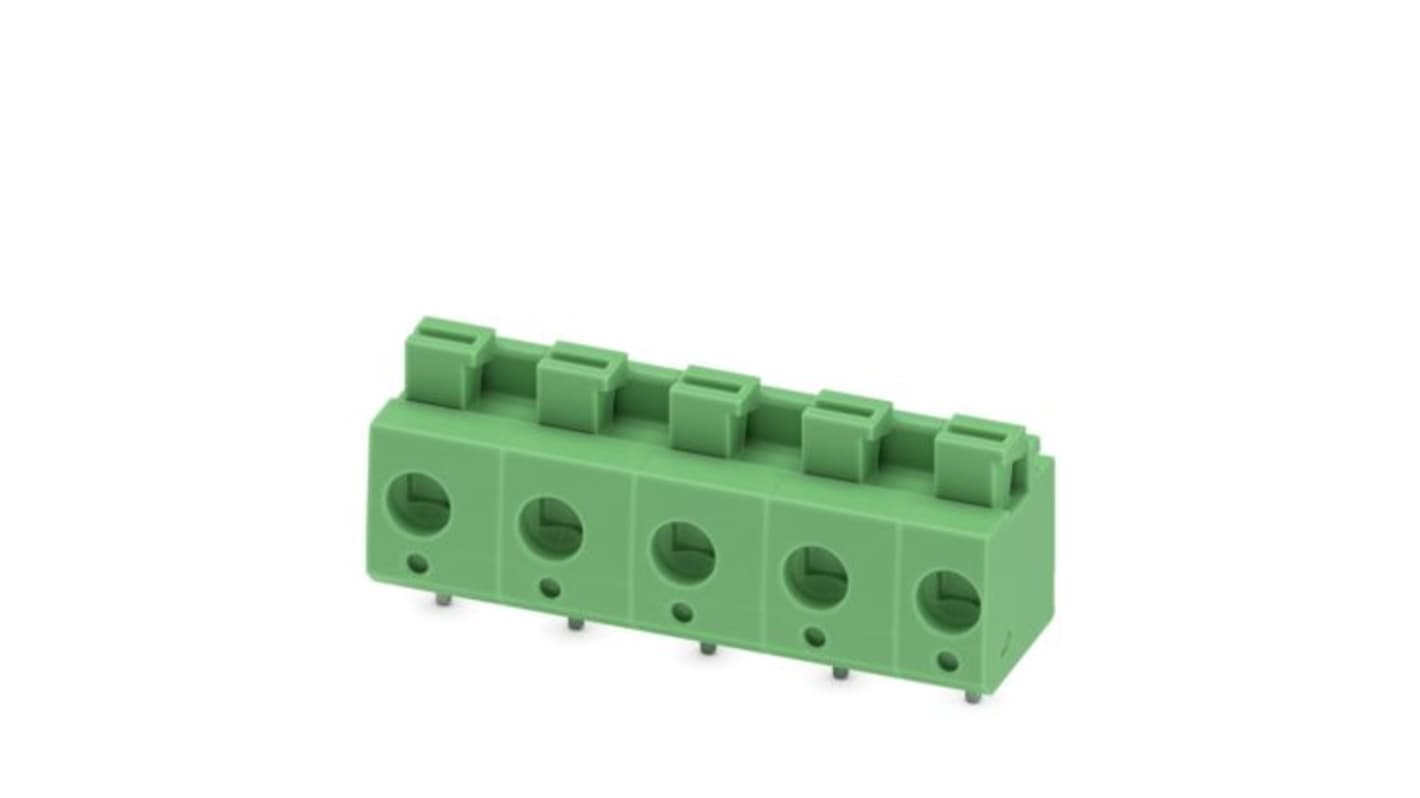

Phoenix Contact PTS Series PCB Terminal Block, 5-Contact, 7.5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 556-368
- Mfr. Part No.:
- 1703087
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£135.22
(exc. VAT)
£162.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £135.22 | £1.352 |
*price indicative
- RS Stock No.:
- 556-368
- Mfr. Part No.:
- 1703087
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 5 | |
| Product Type | PCB Terminal Block | |
| Pitch | 7.5mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 0° | |
| Wire Connection Method | Push-in Spring | |
| Colour | Green | |
| Voltage | 63V | |
| Standards/Approvals | cULus, EN 60695-2-12, EN 60695-2-13, IEC 60-1:1-11, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2013-08, REACH, RoHS, UL 94 V0, VDE, EN 60695-10-2 | |
| Width | 35mm | |
| Series | PTS | |
| Length | 10.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Product Type PCB Terminal Block | ||
Pitch 7.5mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 0° | ||
Wire Connection Method Push-in Spring | ||
Colour Green | ||
Voltage 63V | ||
Standards/Approvals cULus, EN 60695-2-12, EN 60695-2-13, IEC 60-1:1-11, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2013-08, REACH, RoHS, UL 94 V0, VDE, EN 60695-10-2 | ||
Width 35mm | ||
Series PTS | ||
Length 10.5mm | ||
- COO (Country of Origin):
- SK
The Phoenix Contact PCB terminal block is designed for superior connectivity in printed circuit boards. With an ingenious push-in spring connection, this terminal block enables swift and uncomplicated assembly, making it an essential component for various electrical applications. It boasts a compact design while ensuring a high nominal current of 16 A and rated voltage of up to 630 V. This terminal's well-thought-out configuration allows for easy testing and reliable long-term performance, ensuring that your connections remain stable even under challenging operational conditions. Ideal for both professional and DIY projects, the PTS 1.5/ 5-7.5-H offers versatility and efficiency, making it an indispensable tool for designers and engineers alike.
Compact design optimises space on your PCB
Push-in connection eliminates the need for additional tools
Integrated test option facilitates quick and effective testing
Designed to enhance long-term stability of electrical connections
WEEE/RoHS compliant, ensuring environmental safety
Accommodates a wide range of conductor sizes, enhancing versatility
Durable housing material is flame-resistant and robust
Facilitates wave soldering for efficient assembly
