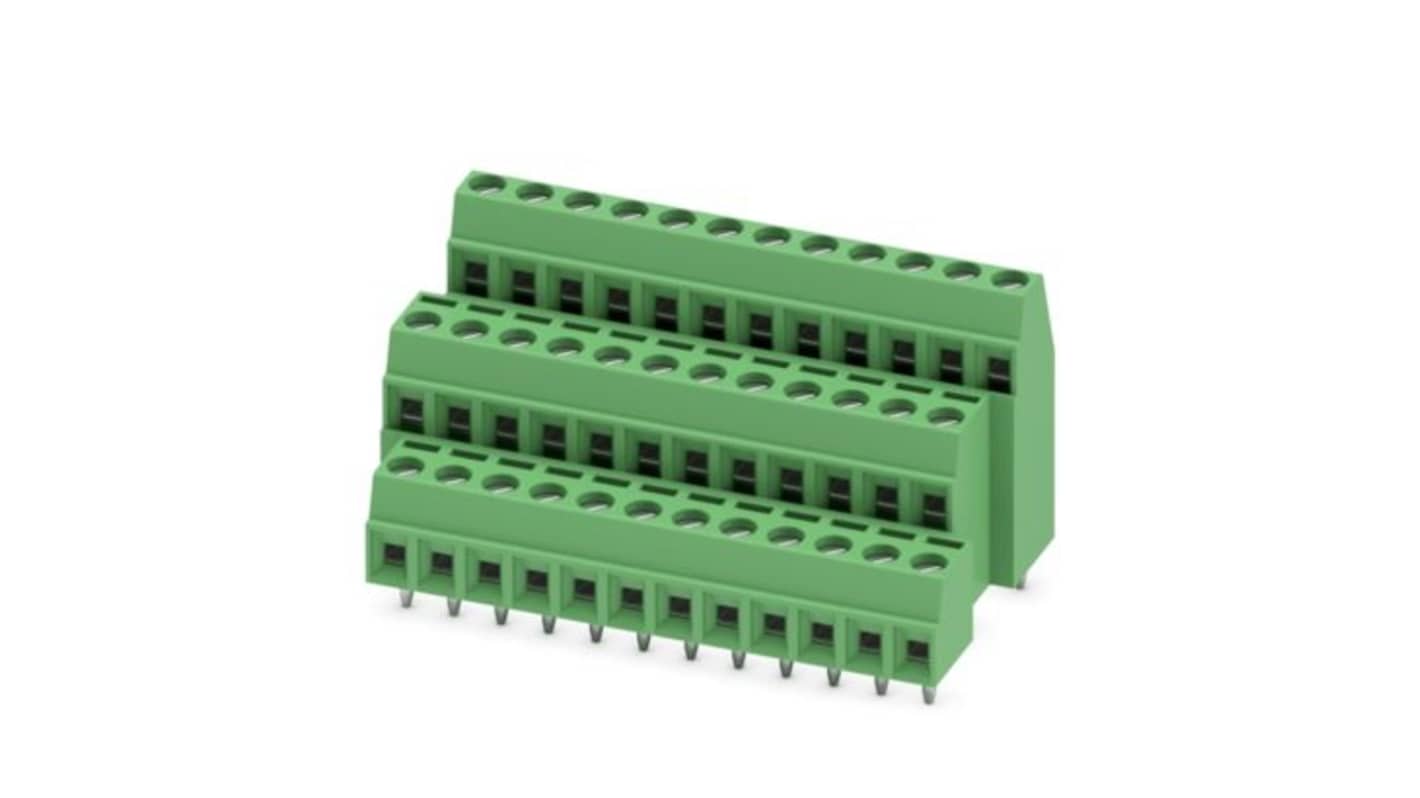

Phoenix Contact MK3DS 1 Series PCB Terminal Block, 36-Contact, 3.81mm Pitch, Wave Soldering, 3-Row, Screw Termination
- RS Stock No.:
- 520-830
- Mfr. Part No.:
- 1727832
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£1,695.13
(exc. VAT)
£2,034.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £1,695.13 | £33.903 |
*price indicative
- RS Stock No.:
- 520-830
- Mfr. Part No.:
- 1727832
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 36 | |
Pitch | 3.81mm | |
Number of Rows | 3 | |
Mounting Type | Wave Soldering | |
Gender | Female | |
Termination Method | Screw | |
Series | MK3DS 1 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 36 | ||
Pitch 3.81mm | ||
Number of Rows 3 | ||
Mounting Type Wave Soldering | ||
Gender Female | ||
Termination Method Screw | ||
Series MK3DS 1 | ||
- COO (Country of Origin):
- DE
The Phoenix Contact MK3DS 1/12-3.81 is a highly efficient printed circuit board terminal designed to meet the demands of modern applications. With a compact design and intelligent engineering, this terminal block facilitates reliable connectivity in a variety of electronic circuits. Ideal for wave soldering, it features three rows of twelve positions each, providing significant connection density without compromising on performance. This terminal block is particularly well-suited for applications requiring a robust electrical connection under varying operational conditions, making it a versatile choice for electronics professionals. Not only does it ensure excellent conductivity with a rated current of 8 A and a voltage of up to 160 V, but it also meets stringent international compliance standards, all while being environmentally friendly.
Compact design enhances space efficiency on the PCB
Allows for the connection of two conductors, increasing versatility
Features a screw connection method for secure and reliable fastening
Low temperature rise ensures safe operation even at maximum loads
WEEE/RoHS-compliant materials promote environmental sustainability
Designed for easy wave soldering, streamlining assembly processes
Wide range of conductor cross-section compatibility supports various wire types
Rated insulation voltage ensures suitable performance under demanding conditions
Multiple approvals ensure reliability across different global markets
Allows for the connection of two conductors, increasing versatility
Features a screw connection method for secure and reliable fastening
Low temperature rise ensures safe operation even at maximum loads
WEEE/RoHS-compliant materials promote environmental sustainability
Designed for easy wave soldering, streamlining assembly processes
Wide range of conductor cross-section compatibility supports various wire types
Rated insulation voltage ensures suitable performance under demanding conditions
Multiple approvals ensure reliability across different global markets
