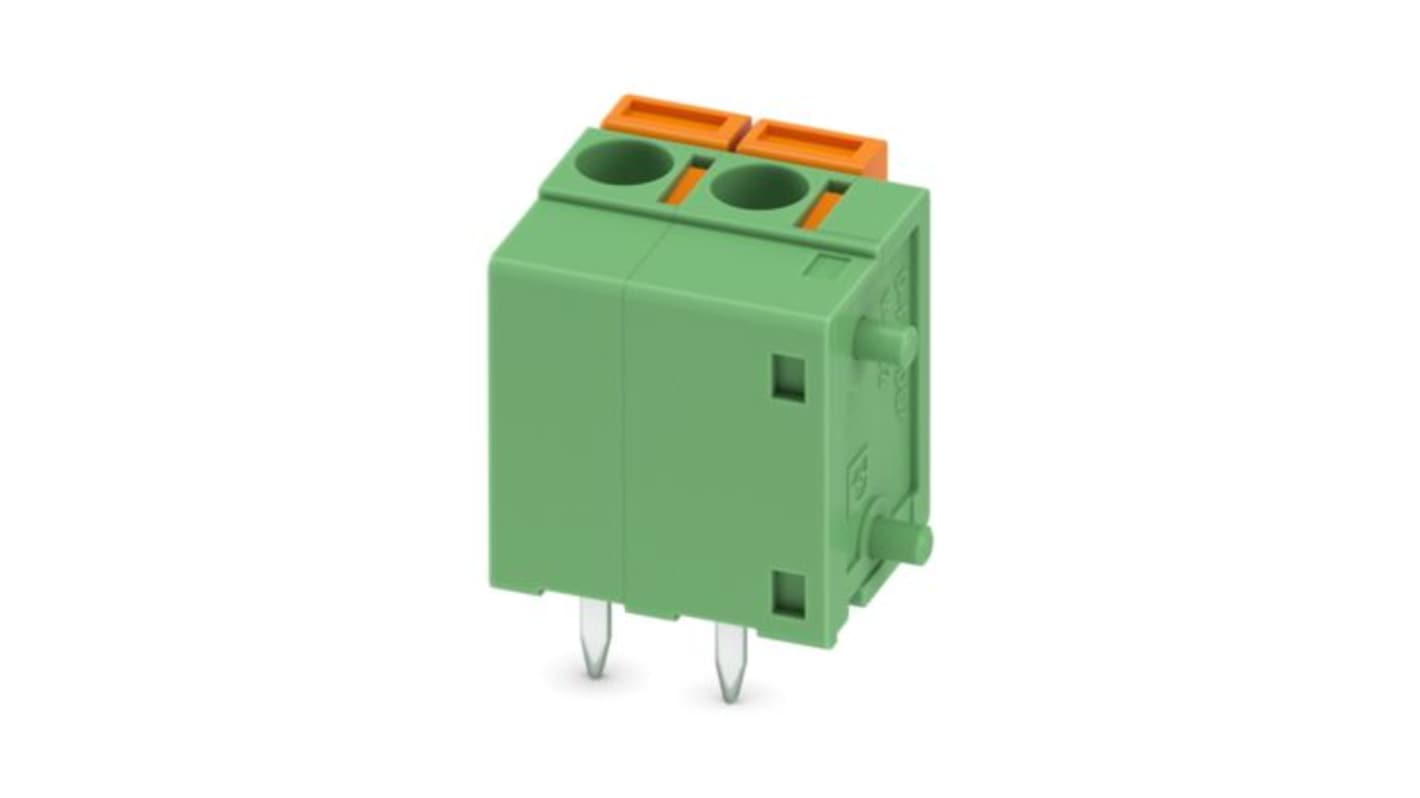

Phoenix Contact FFKDSA/V1 Series PCB Terminal Block, 2-Contact, 5.08 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 520-786
- Mfr. Part No.:
- 1790526
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£39.56
(exc. VAT)
£47.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £39.56 | £0.791 |
*price indicative
- RS Stock No.:
- 520-786
- Mfr. Part No.:
- 1790526
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 2 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Current | 15A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Vertical | |
| Wire Connection Method | Push-in | |
| Colour | Green | |
| Voltage | 40V | |
| Series | FFKDSA/V1 | |
| Width | 10.16mm | |
| Standards/Approvals | cULus Recognised Approval ID: E60425-19870330 | |
| Length | 12.7mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 2 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Current 15A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Vertical | ||
Wire Connection Method Push-in | ||
Colour Green | ||
Voltage 40V | ||
Series FFKDSA/V1 | ||
Width 10.16mm | ||
Standards/Approvals cULus Recognised Approval ID: E60425-19870330 | ||
Length 12.7mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact printed circuit board terminal is an exemplary integration of efficient design and robust performance, ideal for diverse electrical applications. Engineered for seamless connectivity, it features a push-in spring connection that simplifies assembly processes, saving valuable time and resources. The terminal block supports a variety of conductor types and cross-sections, ensuring versatility across different setups. With a nominal current rating of 15 A and a voltage rating up to 400 V, it promises reliability and stability. Additionally, the terminal’s compact dimensions ensure that it can be easily accommodated in tight spaces, making it perfect for contemporary PCB designs. Featuring intuitive operation with colour-coded controls, this product prioritises user experience while maintaining high safety standards, suitable for sophisticated industrial environments.
Time-saving push-in connection eliminates the need for tools
Defined contact force ensures long-term stability
Intuitive colour-coded actuation improves operational efficiency
Vertical connectivity allows for multi-row arrangements on the PCB
Dual solder pins reduce strain on solder joints
Enhanced flexibility with a variety of conductor sizes supported
Environmentally compliant design adheres to RoHS directives
