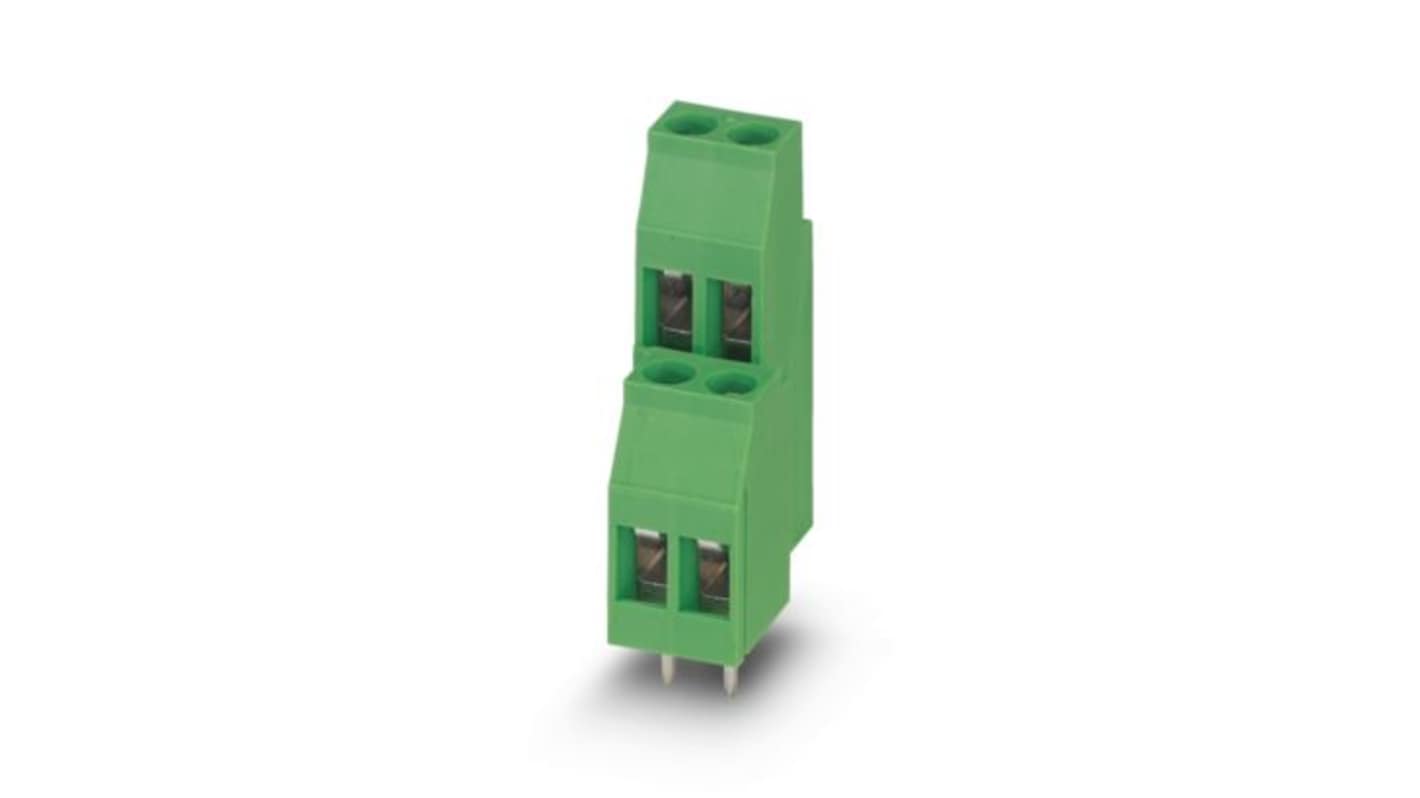

Phoenix Contact MKKDS 3 Series PCB Terminal Block, 8-Contact, 5.08 mm Pitch, Wave Soldering Mount, 2 Row
- RS Stock No.:
- 489-032
- Mfr. Part No.:
- 1856100
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£340.91
(exc. VAT)
£409.09
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £340.91 | £6.818 |
*price indicative
- RS Stock No.:
- 489-032
- Mfr. Part No.:
- 1856100
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 8 | |
| Pitch | 5.08mm | |
| Current | 22A | |
| Number of Rows | 2 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 0° | |
| Colour | Black | |
| Wire Connection Method | Screw | |
| Voltage | 40V | |
| Standards/Approvals | No | |
| Width | 43.18mm | |
| Series | MKKDS 3 | |
| Length | 22.3mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 8 | ||
Pitch 5.08mm | ||
Current 22A | ||
Number of Rows 2 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 0° | ||
Colour Black | ||
Wire Connection Method Screw | ||
Voltage 40V | ||
Standards/Approvals No | ||
Width 43.18mm | ||
Series MKKDS 3 | ||
Length 22.3mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact printed circuit board terminal block offers a robust solution for versatile connections in compact spaces. Designed in the MKKDS 3 series, it features a plug-in design that can be aligned for convenient installations. With a nominal current capacity of 22 A and a rated voltage up to 400 V, it ensures efficient performance in demanding environments. The innovative screw connection with a tension sleeve guarantees secure and reliable conductor connections, while its engineered materials comply with stringent safety and environmental standards. This terminal block provides optimal contact density through its dual-row configuration and is suitable for varied conductor sizes, allowing flexibility for various applications. Its durable construction is ideal for wave soldering, and a low temperature rise contributes to its longevity. This is an excellent choice for industries requiring high reliability and safety in electrical connections.
Designed for dual-row configurations to maximise connectivity
Screw connection method enhances security of electrical connections
Compatible with both rigid and flexible conductors for versatile applications
Low temperature rise ensures long-lasting performance and safety
Compact dimensions suit various PCB layouts
WEEE/RoHS compliant, ensuring adherence to environmental standards
Integrated protective guide prevents misconnection during installation
