WAGO 2624 Series PCB Connector, 3-Contact, 11.5 mm Pitch, Feed Through, 1 Row
- RS Stock No.:
- 225-661
- Mfr. Part No.:
- 2624-3503
- Brand:
- WAGO
Subtotal (1 box of 80 units)*
£176.95
(exc. VAT)
£212.34
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £176.95 | £2.212 |
*price indicative
- RS Stock No.:
- 225-661
- Mfr. Part No.:
- 2624-3503
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 3 | |
| Pitch | 11.5mm | |
| Current | 41A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Feed Through | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Orientation | Parallel | |
| Wire Connection Method | Push-in | |
| Colour | Grey | |
| Voltage | 1000V | |
| Width | 29.5mm | |
| Series | 2624 | |
| Depth | 15.4mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 3 | ||
Pitch 11.5mm | ||
Current 41A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Feed Through | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 10AWG | ||
Orientation Parallel | ||
Wire Connection Method Push-in | ||
Colour Grey | ||
Voltage 1000V | ||
Width 29.5mm | ||
Series 2624 | ||
Depth 15.4mm | ||
Standards/Approvals No | ||

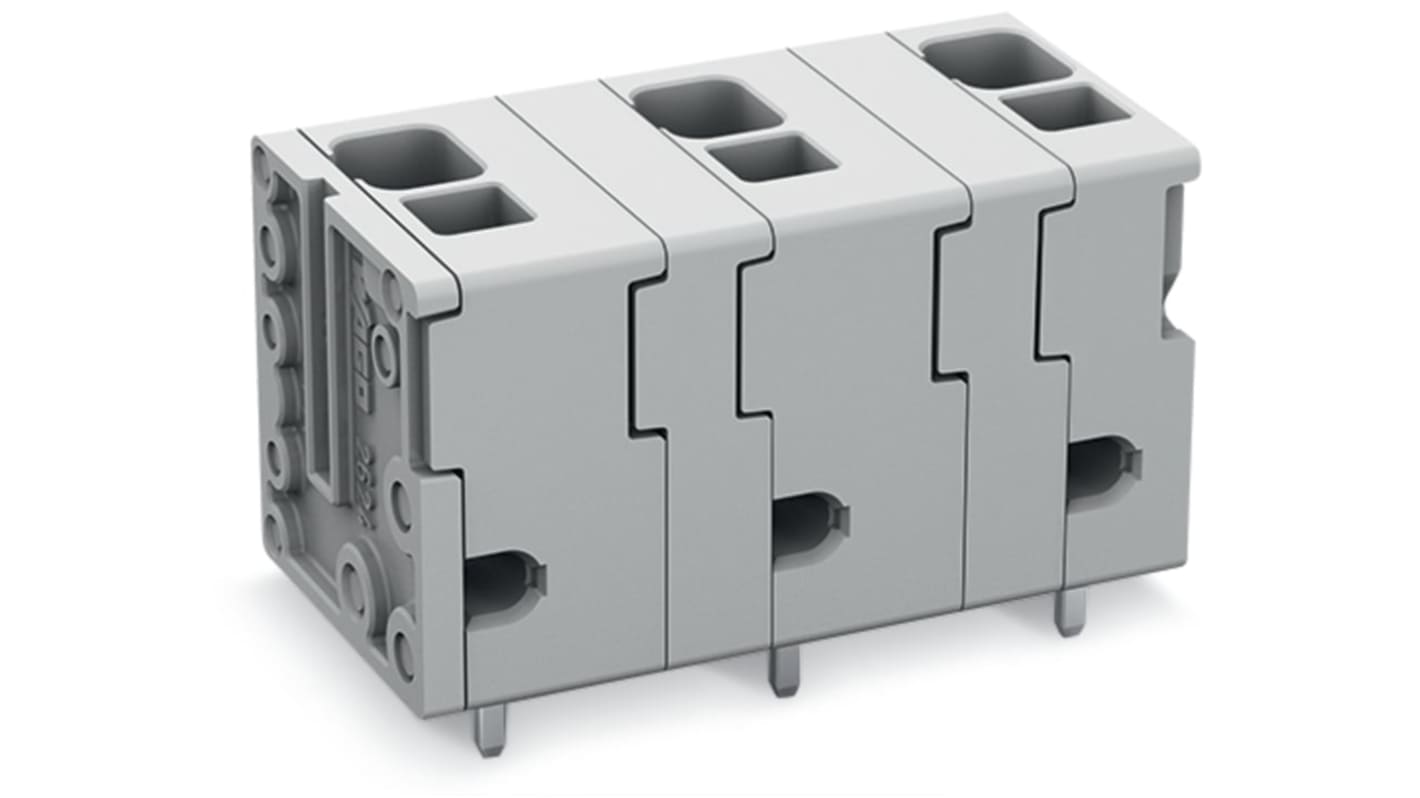

The Wago PCB terminal block revolutionises connection technology with its Push-in CAGE CLAMP system, designed for easy and efficient wiring of solid and ferruled conductors. With a robust 3-pole configuration, it accommodates conductor sizes from 0.2 to 6 mm², making it ideal for a range of applications, including panel feedthrough tasks.
Guaranteed compliance with international safety standards
Lightweight construction facilitates easy handling and installation
Various conductor options support flexibility for diverse projects
Available in grey colour for easy identification and aesthetic uniformity
