WAGO 2716 Series PCB Connector, 8-Contact, 15 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 225-245
- Mfr. Part No.:
- 2716-258
- Brand:
- WAGO
Subtotal (1 box of 8 units)*
£125.16
(exc. VAT)
£150.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £125.16 | £15.645 |
*price indicative
- RS Stock No.:
- 225-245
- Mfr. Part No.:
- 2716-258
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 8 | |
| Product Type | PCB Connector | |
| Pitch | 15mm | |
| Number of Rows | 1 | |
| Current | 76A | |
| Minimum Wire Size mm² | 1.5mm² | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 16mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 6AWG | |
| Wire Connection Method | Cage Clamp | |
| Colour | Grey | |
| Voltage | 80V | |
| Width | 115mm | |
| Standards/Approvals | No | |
| Depth | 35mm | |
| Series | 2716 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 8 | ||
Product Type PCB Connector | ||
Pitch 15mm | ||
Number of Rows 1 | ||
Current 76A | ||
Minimum Wire Size mm² 1.5mm² | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 16mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 6AWG | ||
Wire Connection Method Cage Clamp | ||
Colour Grey | ||
Voltage 80V | ||
Width 115mm | ||
Standards/Approvals No | ||
Depth 35mm | ||
Series 2716 | ||
- COO (Country of Origin):
- PL

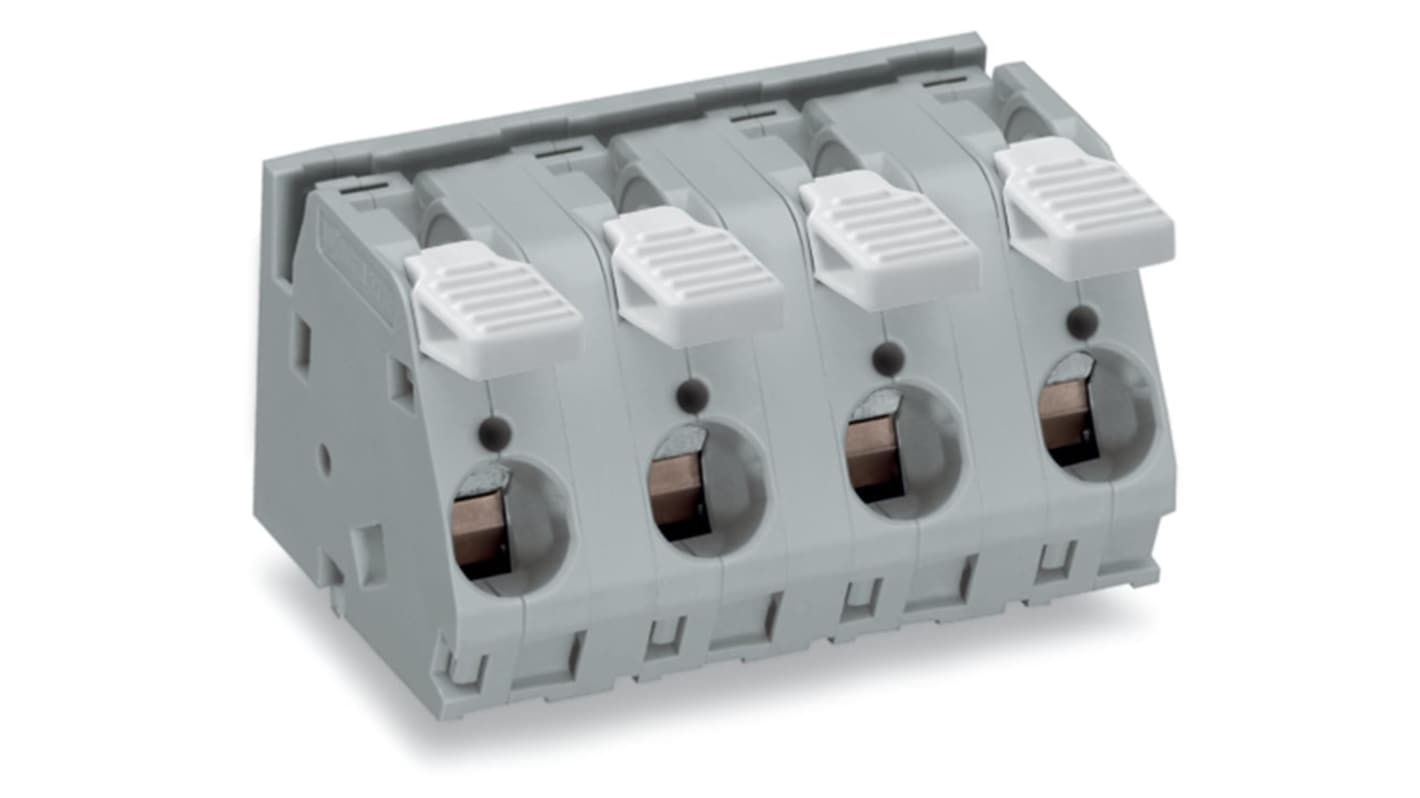

The Wago PCB terminal block with lever-actuated CAGE CLAMP connection is engineered for optimal performance and efficiency in demanding applications. Boasting an innovative tool-free termination method, it allows for seamless integration and quick connections, making it an ideal choice for complex wiring setups.
Designed for high overvoltage category performance
Made from premium materials for enhanced durability
Meets strict RoHS compliance for environmental safety
Available in a range of compatible accessories to enhance functionality
