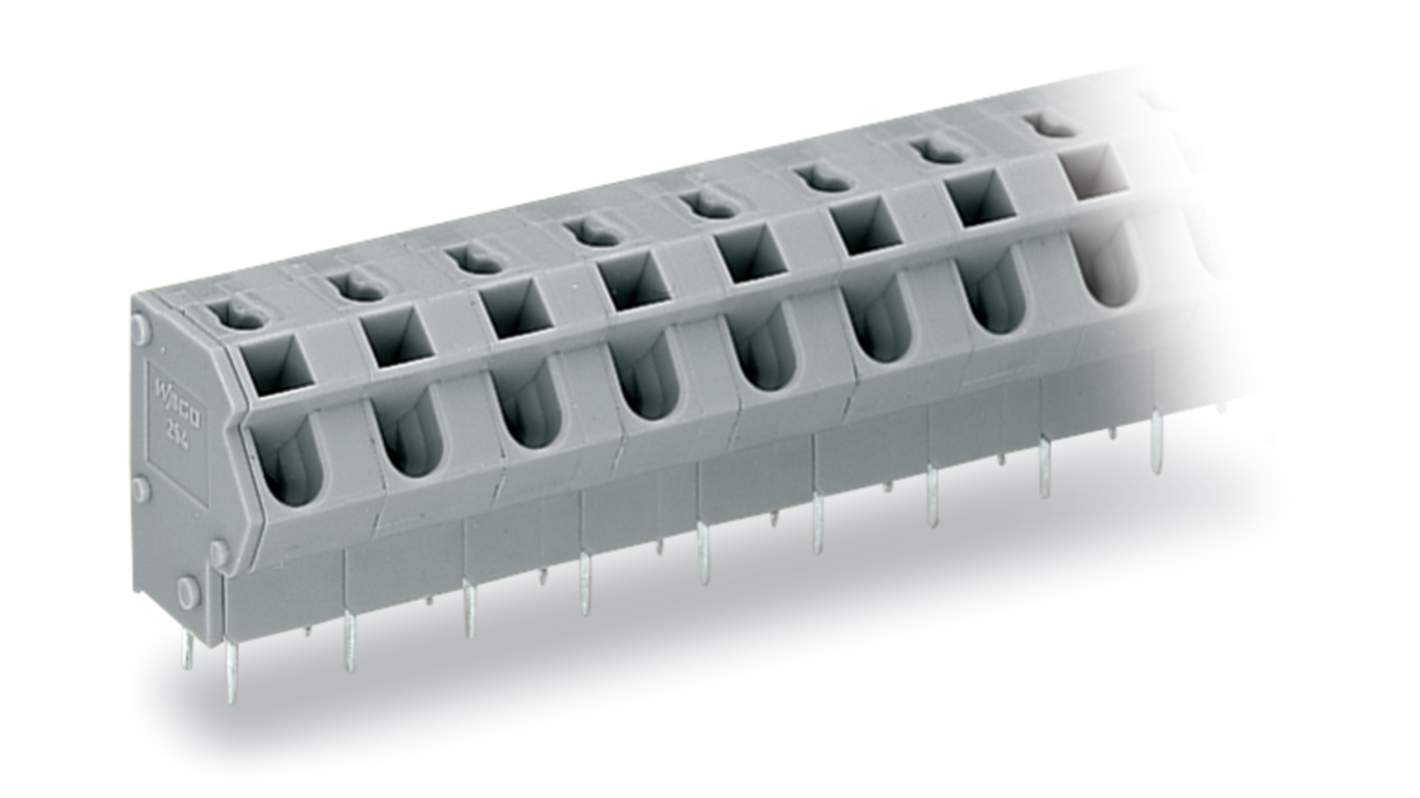

WAGO 254 Series PCB Connector, 8-Contact, 7.62 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 225-235
- Mfr. Part No.:
- 254-558
- Brand:
- WAGO
Subtotal (1 box of 20 units)*
£38.38
(exc. VAT)
£46.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £38.38 | £1.919 |
*price indicative
- RS Stock No.:
- 225-235
- Mfr. Part No.:
- 254-558
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 8 | |
| Pitch | 7.62mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.5mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 20 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push Wire | |
| Colour | Grey | |
| Voltage | 1000 V | |
| Width | 61.5 mm | |
| Standards/Approvals | IEC/EN 60664-1 | |
| Depth | 13.5mm | |
| Series | 254 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 8 | ||
Pitch 7.62mm | ||
Number of Rows 1 | ||
Current 24A | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.5mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 20 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation 45° | ||
Wire Connection Method Push Wire | ||
Colour Grey | ||
Voltage 1000 V | ||
Width 61.5 mm | ||
Standards/Approvals IEC/EN 60664-1 | ||
Depth 13.5mm | ||
Series 254 | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block combines innovative design and exceptional performance, developed to meet the demands of modern electrical connections. With its compact and space-saving profile at just 8.9 mm deep, it enhances efficiency on your PCB without compromising functionality. The terminal block features a reliable PUSH WIRE connection technology, allowing for the easy insertion of solid and ferruled fine-stranded conductors.
Supports a range of connections for increased flexibility
Provides reliable performance across multiple applications
Compatible with various conductor sizes facilitating easy integration
Low weight ensures minimal impact on overall PCB design
