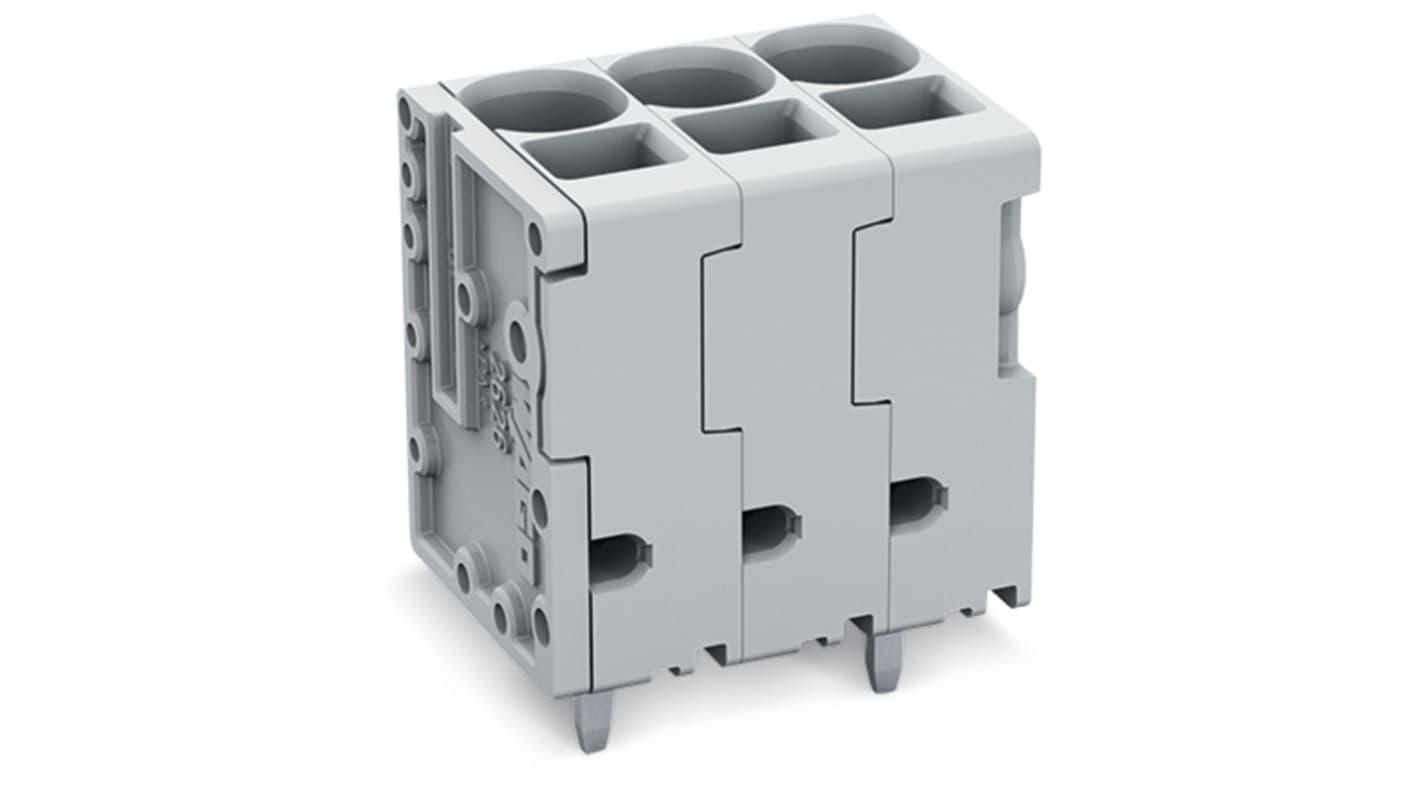

WAGO 2626 Series PCB Connector, 3-Contact, 7.5 mm Pitch, Feed Through, 1 Row
- RS Stock No.:
- 224-976
- Mfr. Part No.:
- 2626-3103
- Brand:
- WAGO
Subtotal (1 box of 90 units)*
£306.33
(exc. VAT)
£367.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £306.33 | £3.404 |
*price indicative
- RS Stock No.:
- 224-976
- Mfr. Part No.:
- 2626-3103
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Connector | |
| Pitch | 7.5mm | |
| Number of Rows | 1 | |
| Current | 48A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Feed Through | |
| Maximum Wire Size mm² | 1mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Wire Connection Method | Push-in | |
| Colour | Grey | |
| Voltage | 63V | |
| Series | 2626 | |
| Width | 24.3mm | |
| Depth | 18.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Connector | ||
Pitch 7.5mm | ||
Number of Rows 1 | ||
Current 48A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Feed Through | ||
Maximum Wire Size mm² 1mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 8AWG | ||
Wire Connection Method Push-in | ||
Colour Grey | ||
Voltage 63V | ||
Series 2626 | ||
Width 24.3mm | ||
Depth 18.5mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block is a reliable connectivity solution designed for modern electrical applications. With its innovative Push-in CAGE CLAMP technology, this 3-pole terminal block facilitates seamless connections for both solid and fine-stranded conductors, catering to diverse installation needs. The compact design features a pin spacing of 7.5 mm, making it ideal for efficient PCB layouts.
Compliant with international standards for quality assurance
Facilitates quick and simple testing procedures during installation
Features compact footprint while maintaining high performance standards
Temperature resilience improves longevity in extreme environments
Manufactured with materials that comply with RoHS standards
