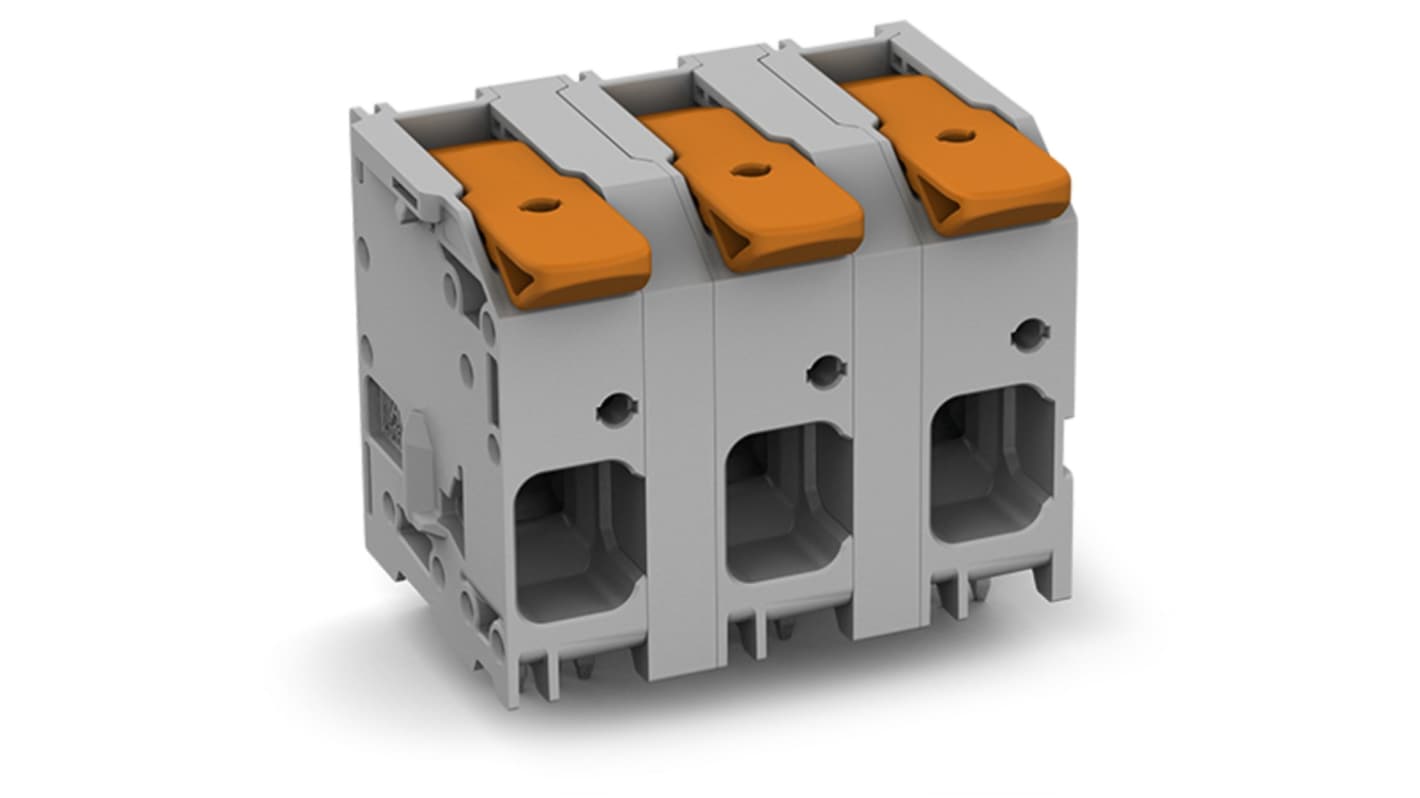

WAGO 2616 Series PCB Connector, 3-Contact, 15 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 224-840
- Mfr. Part No.:
- 2616-1353
- Brand:
- WAGO
Subtotal (1 box of 28 units)*
£232.46
(exc. VAT)
£278.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £232.46 | £8.302 |
*price indicative
- RS Stock No.:
- 224-840
- Mfr. Part No.:
- 2616-1353
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Connector | |
| Pitch | 15mm | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 2mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Wire Connection Method | Push-in Cage Clamp | |
| Colour | Grey | |
| Series | 2616 | |
| Standards/Approvals | No | |
| Width | 41.5mm | |
| Depth | 32mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Connector | ||
Pitch 15mm | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 2mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Wire Connection Method Push-in Cage Clamp | ||
Colour Grey | ||
Series 2616 | ||
Standards/Approvals No | ||
Width 41.5mm | ||
Depth 32mm | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block redefines connectivity with its innovative push-in CAGE CLAMP technology and levers, delivering seamless integration for solid and fine-stranded conductors up to 16 mm². Its user-friendly design facilitates intuitive operation, allowing multiple clamping units to remain open simultaneously for efficient multi-core cable connections.
Durable polyamide housing ensures long lasting performance in various conditions
Rigorous compliance with international safety standards for assured reliability
Compact dimensions allow versatile installation in confined spaces
Environmentally friendly with RoHS compliance reducing ecological impact
