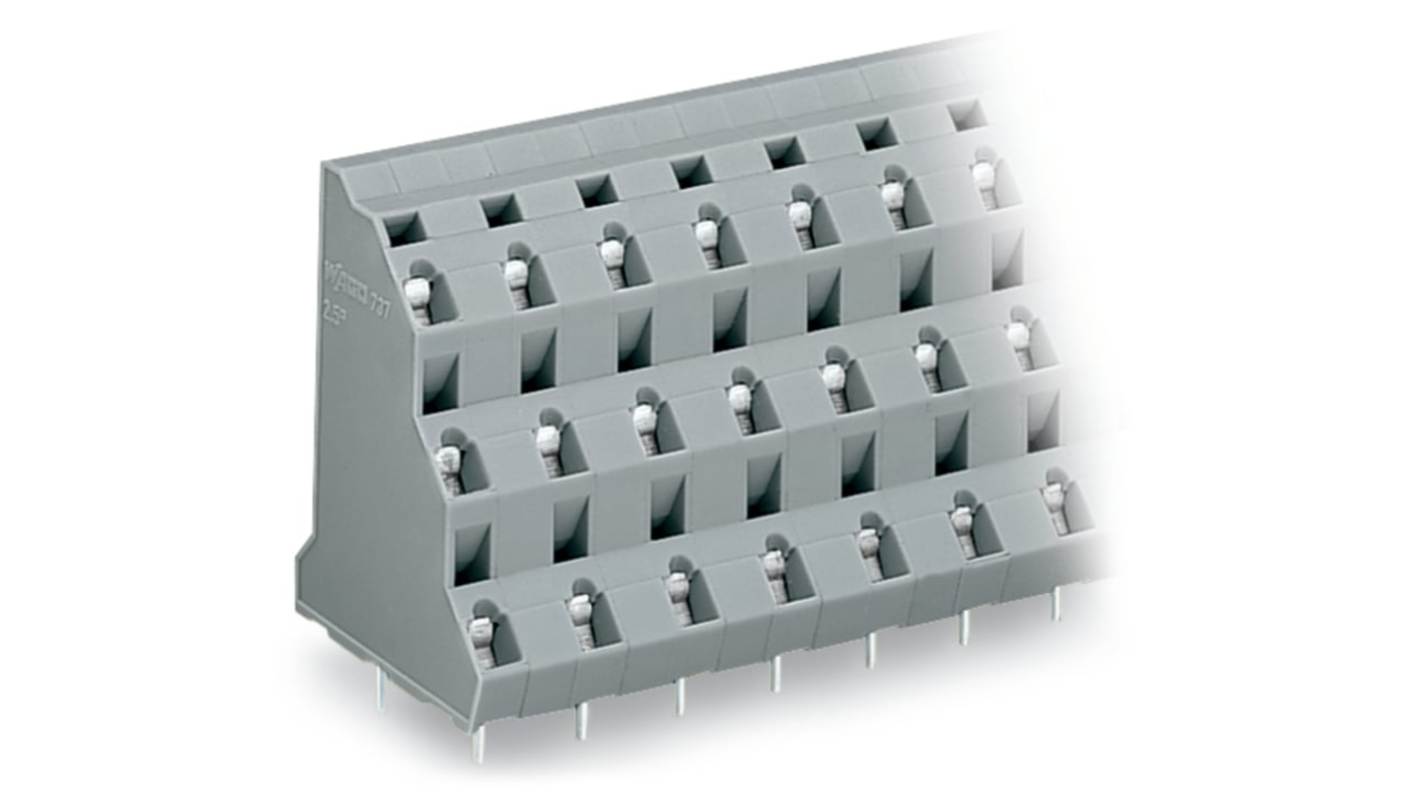

WAGO 737 Series PCB Connector, 36-Contact, 10 mm Pitch, Through Hole, 3 Row
- RS Stock No.:
- 224-093
- Mfr. Part No.:
- 737-762
- Brand:
- WAGO
Subtotal (1 box of 8 units)*
£144.71
(exc. VAT)
£173.65
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £144.71 | £18.089 |
*price indicative
- RS Stock No.:
- 224-093
- Mfr. Part No.:
- 737-762
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 36 | |
| Pitch | 10mm | |
| Current | 21A | |
| Number of Rows | 3 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 63V | |
| Depth | 31mm | |
| Width | 116mm | |
| Standards/Approvals | No | |
| Series | 737 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 36 | ||
Pitch 10mm | ||
Current 21A | ||
Number of Rows 3 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 63V | ||
Depth 31mm | ||
Width 116mm | ||
Standards/Approvals No | ||
Series 737 | ||
- COO (Country of Origin):
- PL
The Wago Triple Deck PCB Terminal Block revolutionises space efficient wiring with its high density design. Engineered for handling multiple conductors in confined spaces, it features a robust CAGE CLAMP connection technology that guarantees reliability and performance. With a pin spacing of 10 mm, this connector is designed to accommodate solid and fine stranded conductors, making it versatile for various applications. Its lightweight polyamide body, coupled with exceptional insulation properties, ensures long lasting performance even under demanding conditions.
Staggered solder pin arrangement maximises space efficiency
Polyamide housing offers excellent insulation and durability
Rated for a wide range of voltage and current ratings ensuring versatility in applications
Custom marking options available for enhanced identification
Meets strict environmental compliance standards ensuring sustainability
