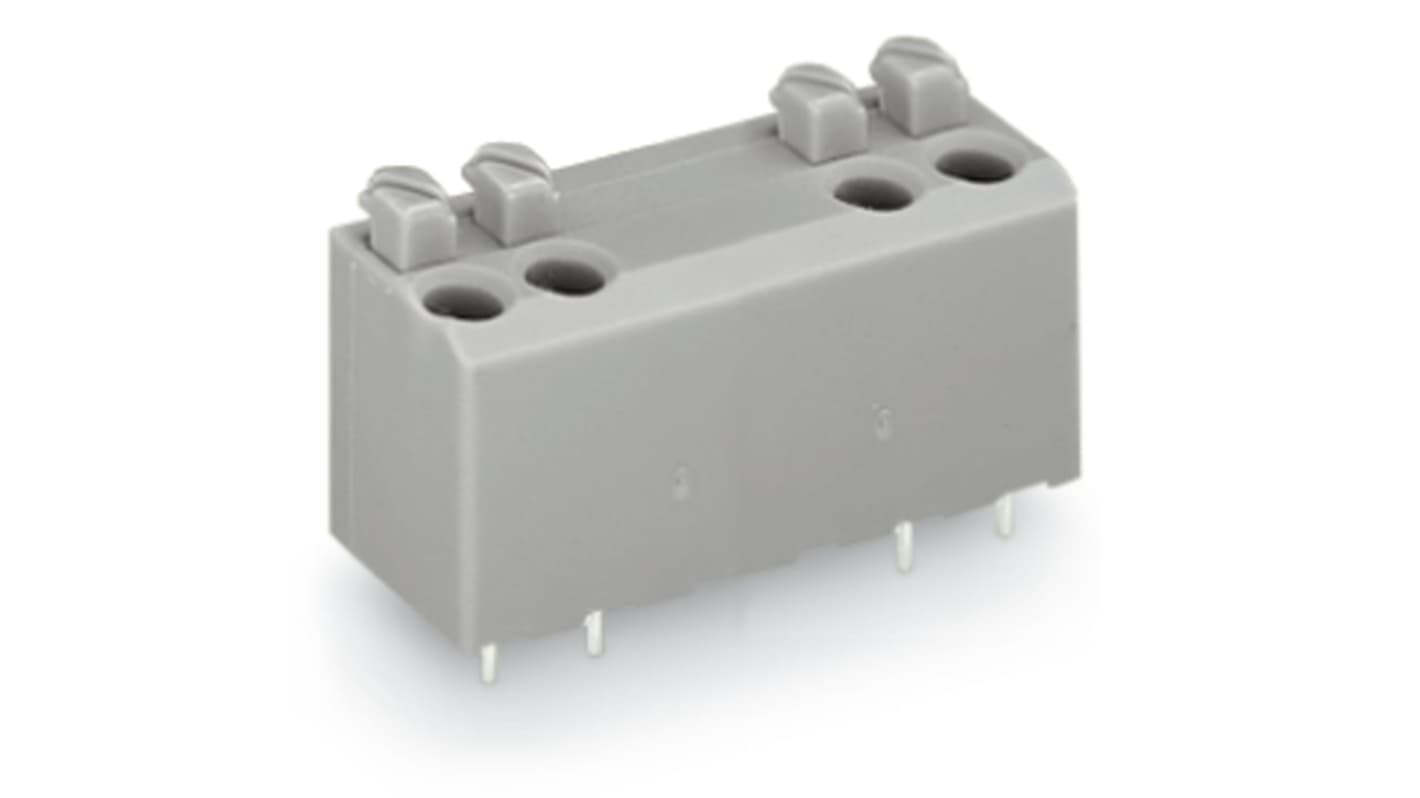

WAGO 735 Series PCB Connector, 4-Contact, 5 mm Pitch, 1 Row, 735-306/001-000
- RS Stock No.:
- 223-912
- Mfr. Part No.:
- 735-306/001-000
- Brand:
- WAGO
Subtotal (1 box of 40 units)*
£49.69
(exc. VAT)
£59.63
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £49.69 | £1.242 |
*price indicative
- RS Stock No.:
- 223-912
- Mfr. Part No.:
- 735-306/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 4 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 10A | |
| Minimum Wire Size mm² | 0.5mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 90° | |
| Wire Connection Method | Push Wire | |
| Colour | Grey | |
| Voltage | 32V | |
| Standards/Approvals | No | |
| Series | 735 | |
| Width | 3mm | |
| Depth | 10.8mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 4 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 10A | ||
Minimum Wire Size mm² 0.5mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 90° | ||
Wire Connection Method Push Wire | ||
Colour Grey | ||
Voltage 32V | ||
Standards/Approvals No | ||
Series 735 | ||
Width 3mm | ||
Depth 10.8mm | ||
The Wago PCB Terminal Block is designed to enhance connectivity and efficiency in electronic applications. With its compact design and integrated push button functionality, this terminal block simplifies the process of wiring and maintaining connections on printed circuit boards. The innovative PUSH WIRE connection technology allows for easy insertion of solid conductors, ensuring reliable connectivity while conserving valuable space on the PCB.
Flexible conductor compatibility accommodates various wire sizes
Side by side arrangement supports efficient layout planning
Robust materials ensure enhanced durability and longevity
High flammability classification provides added safety
