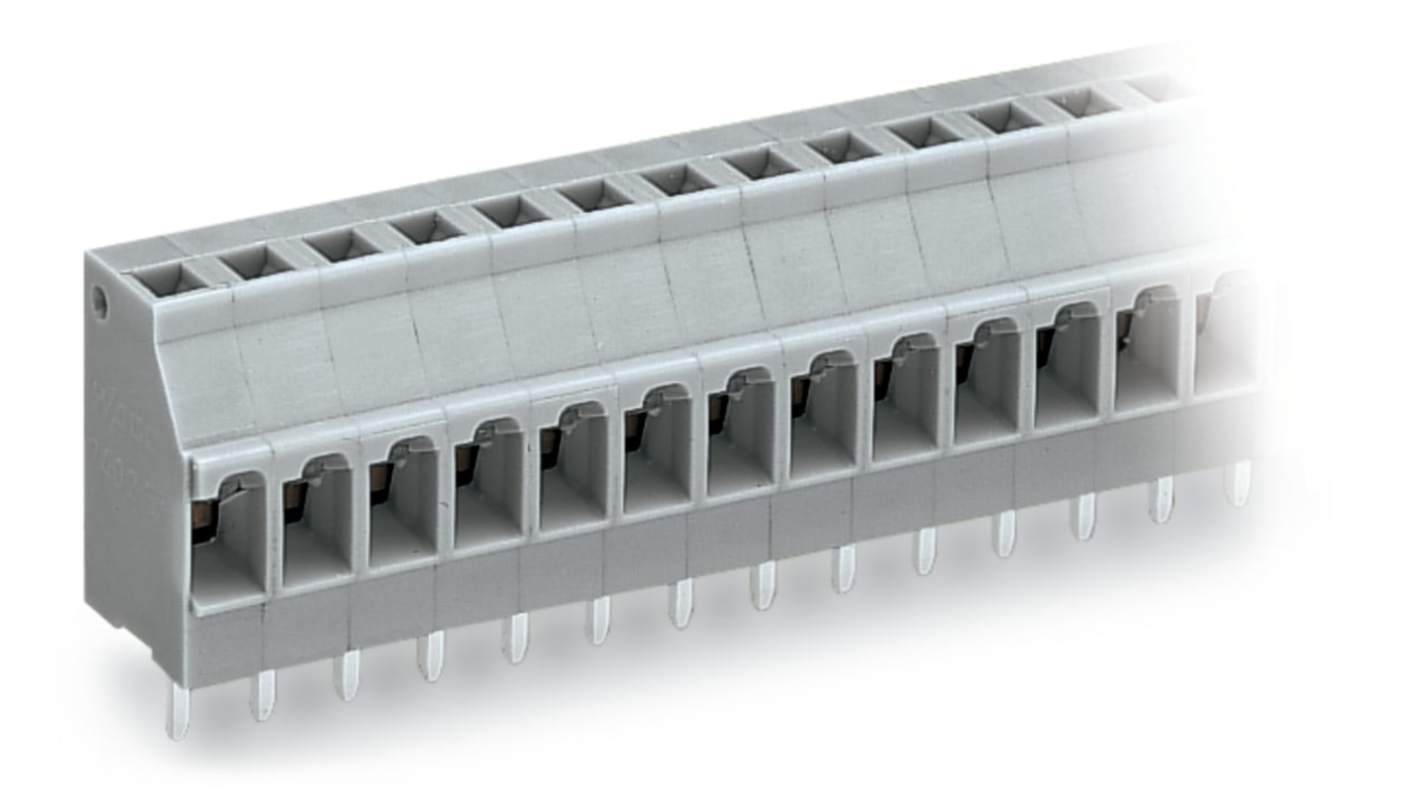

WAGO 740 Series PCB Connector, 24-Contact, 5 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 223-579
- Mfr. Part No.:
- 740-124
- Brand:
- WAGO
Subtotal (1 box of 10 units)*
£91.61
(exc. VAT)
£109.93
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £91.61 | £9.161 |
*price indicative
- RS Stock No.:
- 223-579
- Mfr. Part No.:
- 740-124
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 24 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 0° | |
| Wire Connection Method | Cage Clamp | |
| Colour | Grey | |
| Voltage | 30V | |
| Width | 12mm | |
| Standards/Approvals | No | |
| Depth | 11.1mm | |
| Series | 740 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 24 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 16A | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 0° | ||
Wire Connection Method Cage Clamp | ||
Colour Grey | ||
Voltage 30V | ||
Width 12mm | ||
Standards/Approvals No | ||
Depth 11.1mm | ||
Series 740 | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block is designed for high-performance connection solutions in a compact format. Its innovative CAGE CLAMP technology ensures secure operation while maintaining ease of access for installation. With a versatile design, it accommodates various conductor sizes and enables adjacent positioning of terminal strips without losing functionality.
Constructed with high grade insulation material for enhanced safety and performance
Compact dimensions allow for optimal space utilisation in densely populated circuit boards
Provides a robust solution for high current applications with durable clamping units
