WAGO 739 Series PCB Connector, 7-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 223-545
- Mfr. Part No.:
- 739-157
- Brand:
- WAGO
Subtotal (1 box of 30 units)*
£81.20
(exc. VAT)
£97.44
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £81.20 | £2.707 |
*price indicative
- RS Stock No.:
- 223-545
- Mfr. Part No.:
- 739-157
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 7 | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Vertical | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 32V | |
| Series | 739 | |
| Depth | 14.3mm | |
| Standards/Approvals | No | |
| Width | 36.98mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 7 | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Vertical | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 32V | ||
Series 739 | ||
Depth 14.3mm | ||
Standards/Approvals No | ||
Width 36.98mm | ||
- COO (Country of Origin):
- CH

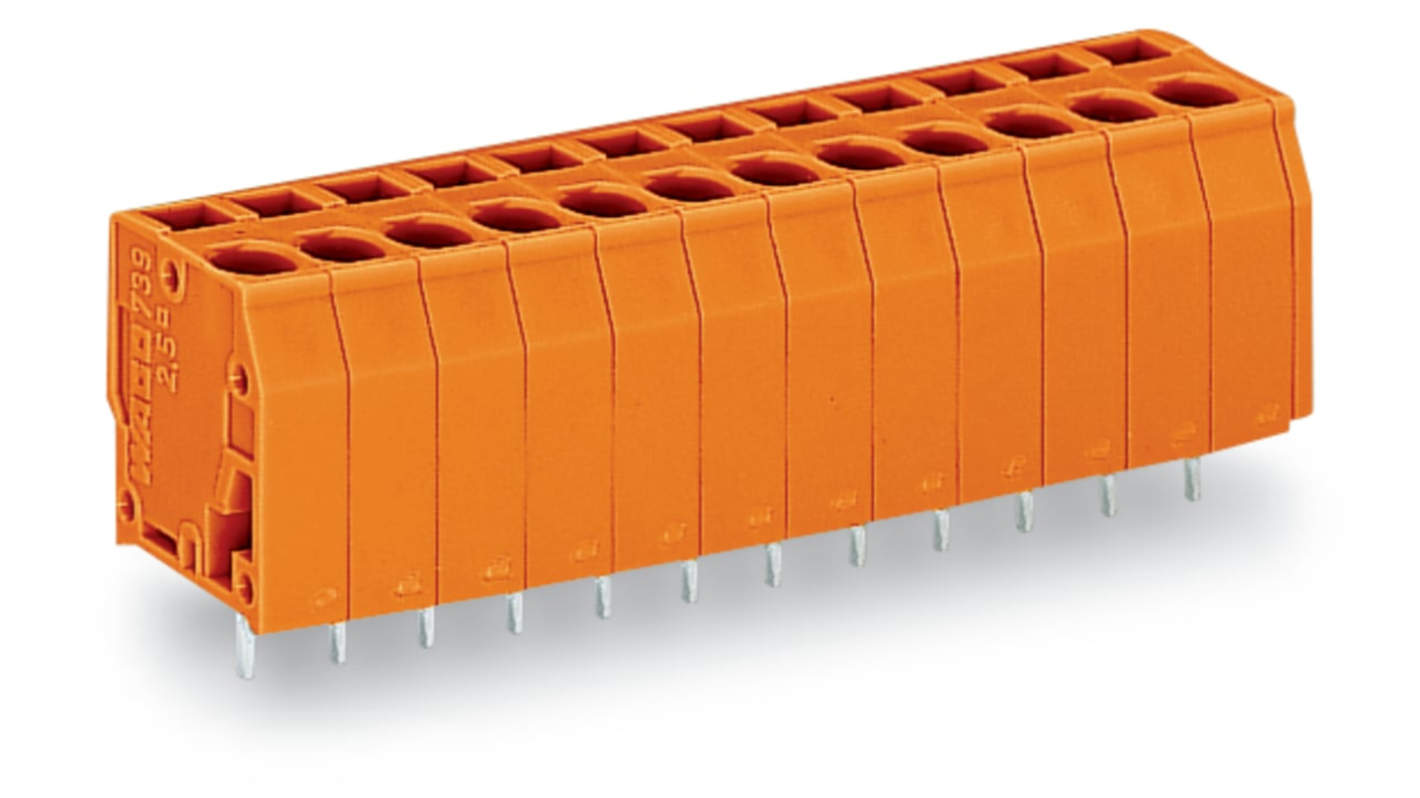

The Wago PCB terminal block is designed to offer a robust and reliable connection solution for various applications. Featuring CAGE CLAMP technology, it ensures easy and safe wiring while optimising space with its vertical conductor entry. The component's elegant orange colour is not just for aesthetics; it assists in quick identification within set-ups.
Designed for easy installation with clear visual aids for marking and engagement
Supports a wide temperature range making it suitable for diverse applications
Compliant with environmental regulations affirming commitment to sustainability
Includes solder pins arranged for seamless PCB integration
