WAGO 736 Series PCB Terminal Block, 48-Contact, 5.08 mm Pitch, Through Hole, 2 Row
- RS Stock No.:
- 222-909
- Mfr. Part No.:
- 736-324
- Brand:
- WAGO
Subtotal (1 box of 14 units)*
£281.81
(exc. VAT)
£338.17
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £281.81 | £20.129 |
*price indicative
- RS Stock No.:
- 222-909
- Mfr. Part No.:
- 736-324
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 48 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 2 | |
| Current | 21A | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25V | |
| Series | 736 | |
| Width | 122.92mm | |
| Depth | 21mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 48 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 2 | ||
Current 21A | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 25V | ||
Series 736 | ||
Width 122.92mm | ||
Depth 21mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- PL

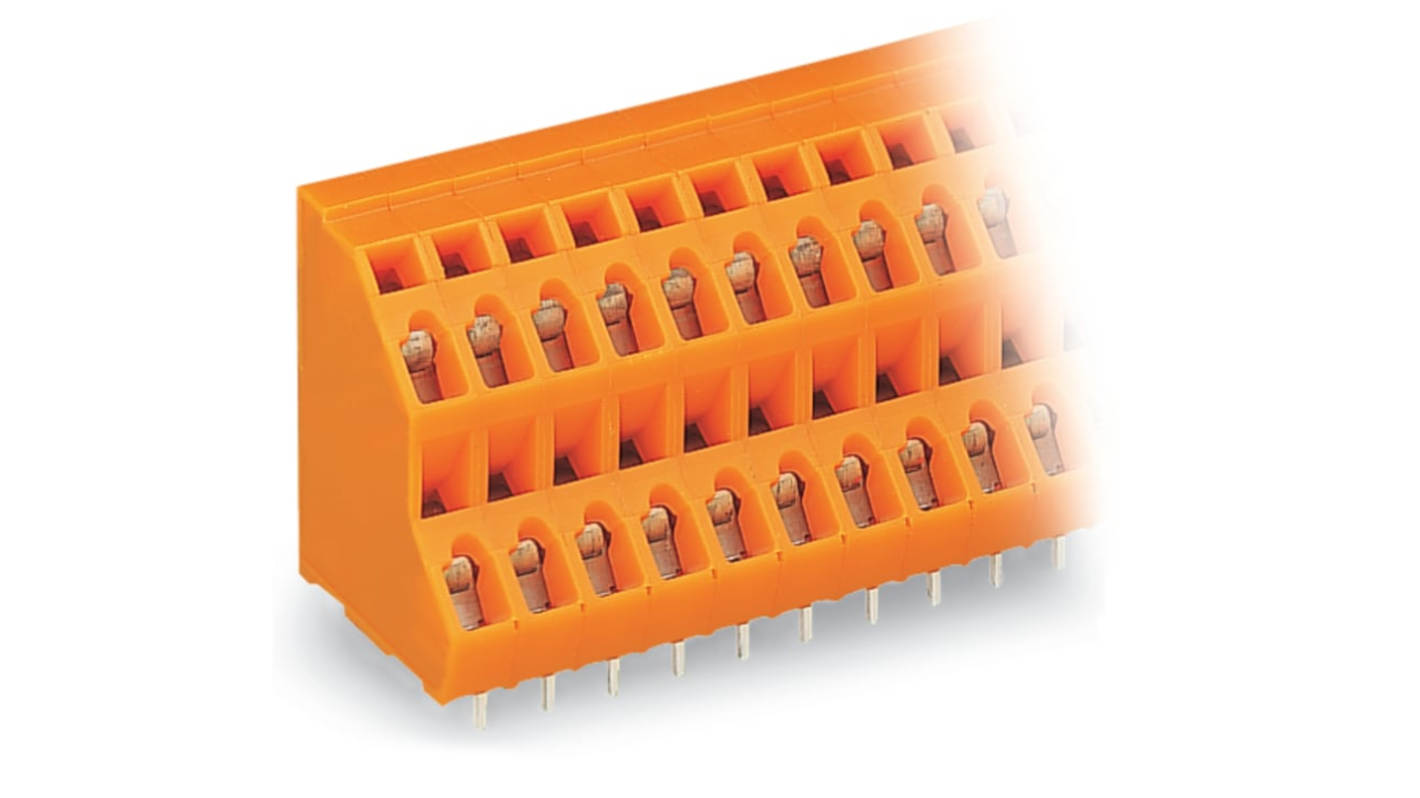

The Wago Double deck PCB terminal block is designed for efficient wiring in tight spaces. With a high-density design, it allows for the connection of multiple conductors, optimising board real estate. Featuring the renowned CAGE CLAMP technology, this terminal block offers a reliable and easy-to-use solution for connecting solid and fine-stranded conductors.
Robust materials provide resilience against wear and environmental factors
Designed for a wide range of conductor sizes to accommodate various needs
Approval compliant with multiple international standards for enhanced credibility
