WAGO 736 Series PCB Terminal Block, 12-Contact, 5 mm Pitch, Through Hole, 2 Row
- RS Stock No.:
- 222-895
- Mfr. Part No.:
- 736-206
- Brand:
- WAGO
Subtotal (1 box of 56 units)*
£308.82
(exc. VAT)
£370.58
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £308.82 | £5.515 |
*price indicative
- RS Stock No.:
- 222-895
- Mfr. Part No.:
- 736-206
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 12 | |
| Pitch | 5mm | |
| Current | 21A | |
| Number of Rows | 2 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Wire Connection Method | Cage Clamp | |
| Colour | Grey | |
| Voltage | 25V | |
| Series | 736 | |
| Depth | 21mm | |
| Standards/Approvals | No | |
| Width | 31mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 12 | ||
Pitch 5mm | ||
Current 21A | ||
Number of Rows 2 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Wire Connection Method Cage Clamp | ||
Colour Grey | ||
Voltage 25V | ||
Series 736 | ||
Depth 21mm | ||
Standards/Approvals No | ||
Width 31mm | ||
- COO (Country of Origin):
- PL

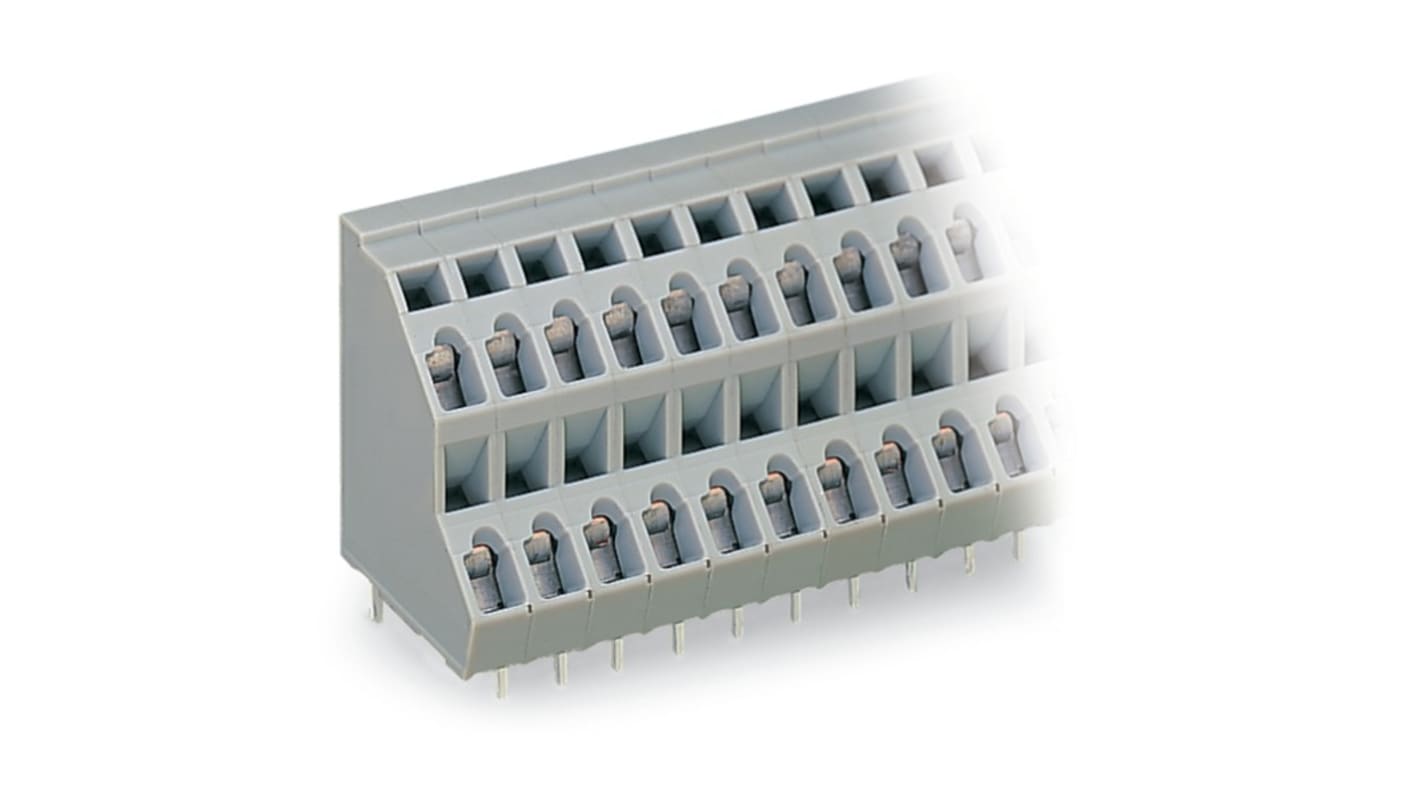

The Wago Double deck PCB terminal block is designed for superior space-efficient wiring in confined areas. Its innovative CAGE CLAMP connection technology allows for quick and secure conductor termination while accommodating various conductor types and sizes, ensuring versatility for diverse applications. With a compact design, it supports up to 12 poles, enabling high-density configuration without compromising performance.
Robust construction with Polyamide material guarantees long lasting durability
Versatile conductor compatibility supports various wire sizes and types
Compact dimensions allow for flexible installation options
Specifically engineered for demanding electrical and industrial applications
