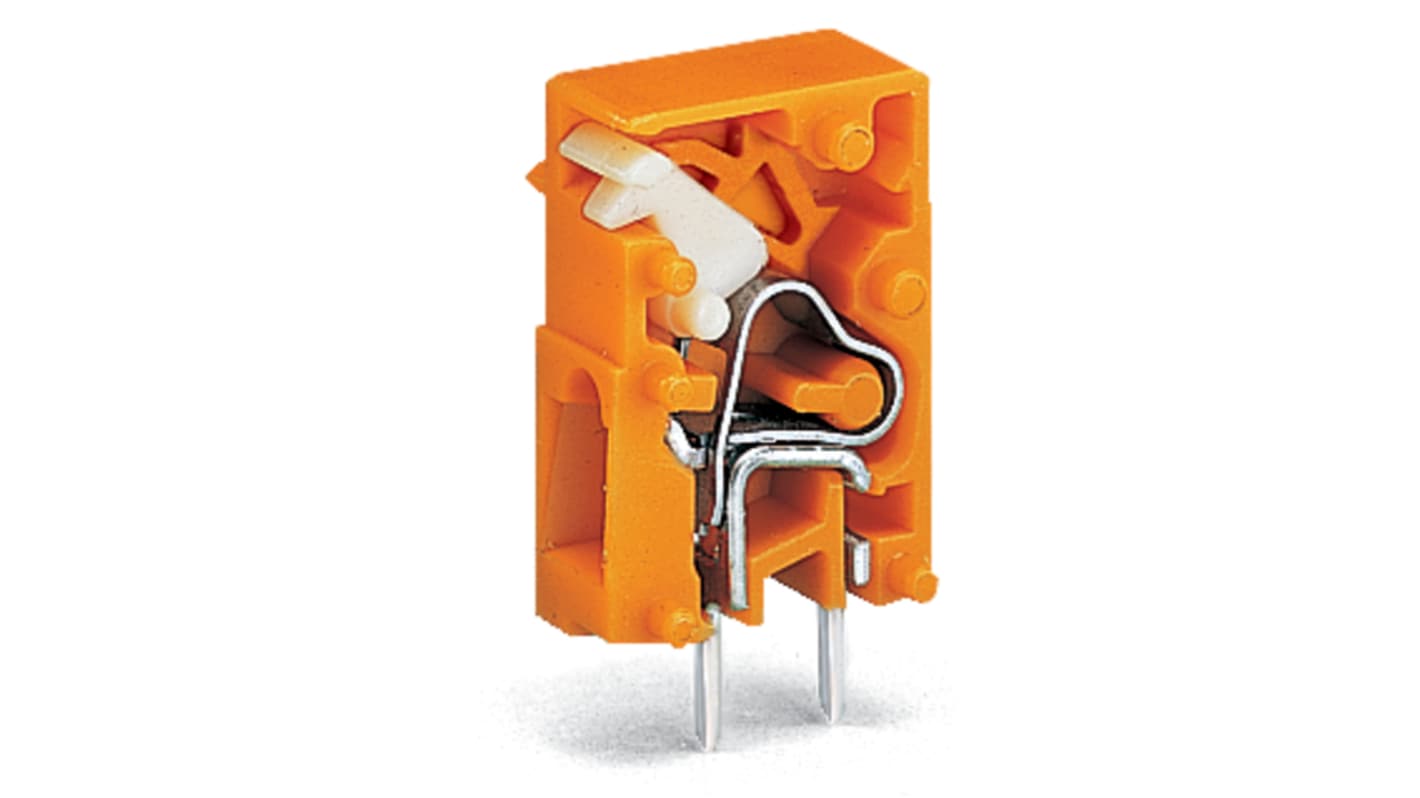

WAGO 741 Series PCB Connector, 1-Contact, 5.08 mm Pitch, Through Hole, 3 Row
- RS Stock No.:
- 222-616
- Mfr. Part No.:
- 741-914
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£66.66
(exc. VAT)
£79.99
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £66.66 | £0.667 |
*price indicative
- RS Stock No.:
- 222-616
- Mfr. Part No.:
- 741-914
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 5.08mm | |
| Current | 16A | |
| Number of Rows | 3 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 0° | |
| Wire Connection Method | Cage Clamp | |
| Colour | Orange | |
| Voltage | 25V | |
| Series | 741 | |
| Depth | 12.8mm | |
| Standards/Approvals | No | |
| Width | 5.08mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 5.08mm | ||
Current 16A | ||
Number of Rows 3 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 0° | ||
Wire Connection Method Cage Clamp | ||
Colour Orange | ||
Voltage 25V | ||
Series 741 | ||
Depth 12.8mm | ||
Standards/Approvals No | ||
Width 5.08mm | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block is designed to enhance wiring efficiency while ensuring reliability in demanding environments. With its innovative push button actuation, it simplifies connections and reduces installation time. Its compact design allows for pin spacing of 5 mm, making it ideal for space constrained applications. Constructed with high quality materials, this terminal block boasts excellent electrical performance, complying with strict industry standards. Its unique cage clamp technology ensures secure conductor connections, providing peace of mind for users.
Push button wiring simplifies the installation process
Cage clamp technology provides secure and reliable connections
Compatible with both solid and fine stranded conductors
Compact design optimises space on PCBs
Rated for high voltage and current ensures versatility
Integrated test slot allows for easy troubleshooting
