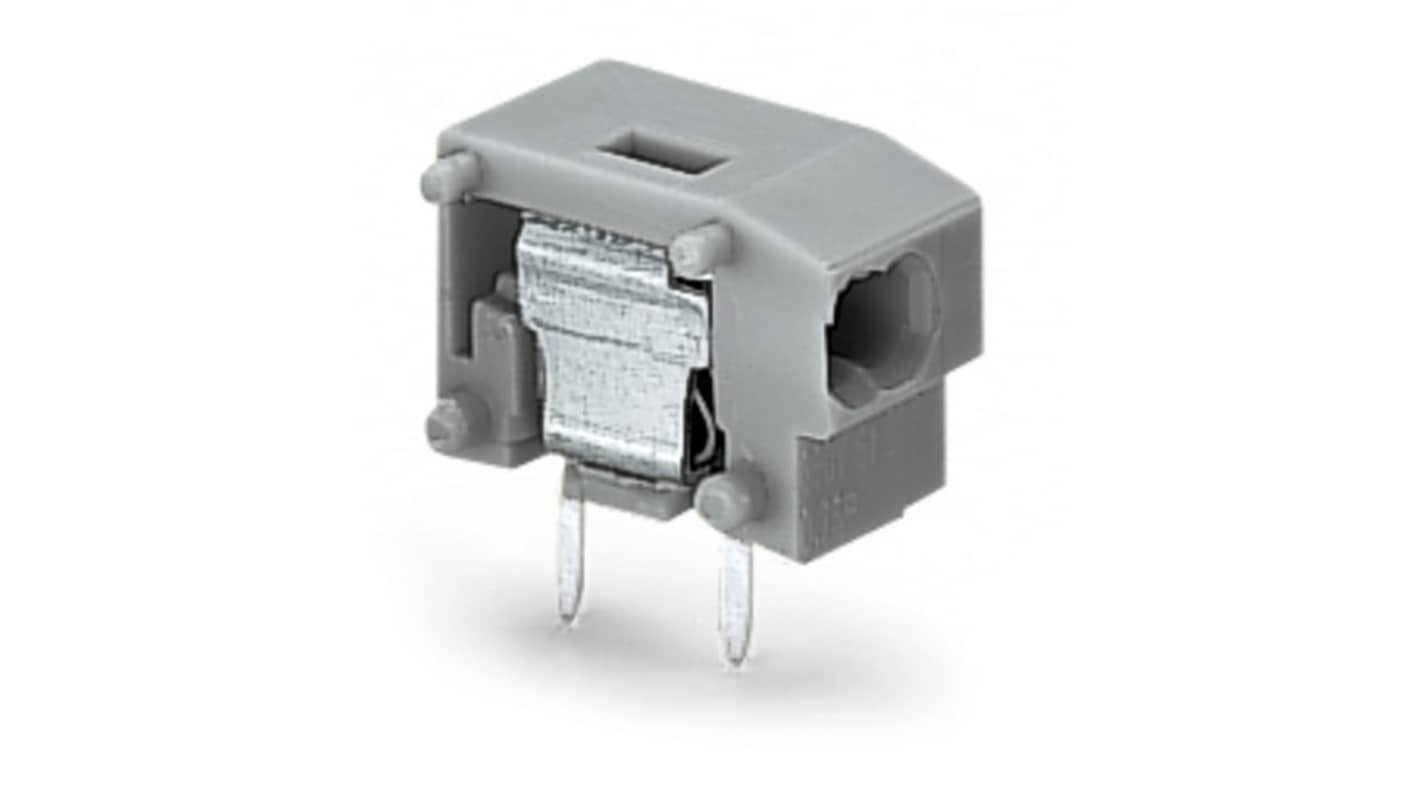

WAGO 235 Series PCB Terminal Block, 1-Contact, 7.62 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-498
- Mfr. Part No.:
- 235-724
- Brand:
- WAGO
Subtotal (1 box of 600 units)*
£157.56
(exc. VAT)
£189.07
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £157.56 | £0.263 |
*price indicative
- RS Stock No.:
- 221-498
- Mfr. Part No.:
- 235-724
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Terminal Block | |
| Pitch | 7.62mm | |
| Current | 10A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.25mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 0.75mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Orientation | 0° | |
| Wire Connection Method | Push Wire | |
| Colour | Blue | |
| Voltage | 1000V | |
| Series | 235 | |
| Width | 9mm | |
| Depth | 12.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Terminal Block | ||
Pitch 7.62mm | ||
Current 10A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.25mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 0.75mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 18AWG | ||
Orientation 0° | ||
Wire Connection Method Push Wire | ||
Colour Blue | ||
Voltage 1000V | ||
Series 235 | ||
Width 9mm | ||
Depth 12.5mm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Wago Stackable 2 Conductor PCB Terminal Block is engineered for versatility and reliability in a compact design. With its innovative PUSH WIRE technology, it simplifies both assembly and maintenance, making it ideal for a variety of applications. Designed for use across various industries, it delivers high mechanical stability through its double solder pins, ensuring robust connections for supply and distribution of signals.
Constructed from high quality Polyamide for enhanced durability and safety
Includes provisions for easy conductor removal allowing quick maintenance
Achieves compliance with multiple international safety standards for peace of mind
Available in multiple colours to suit various application needs
