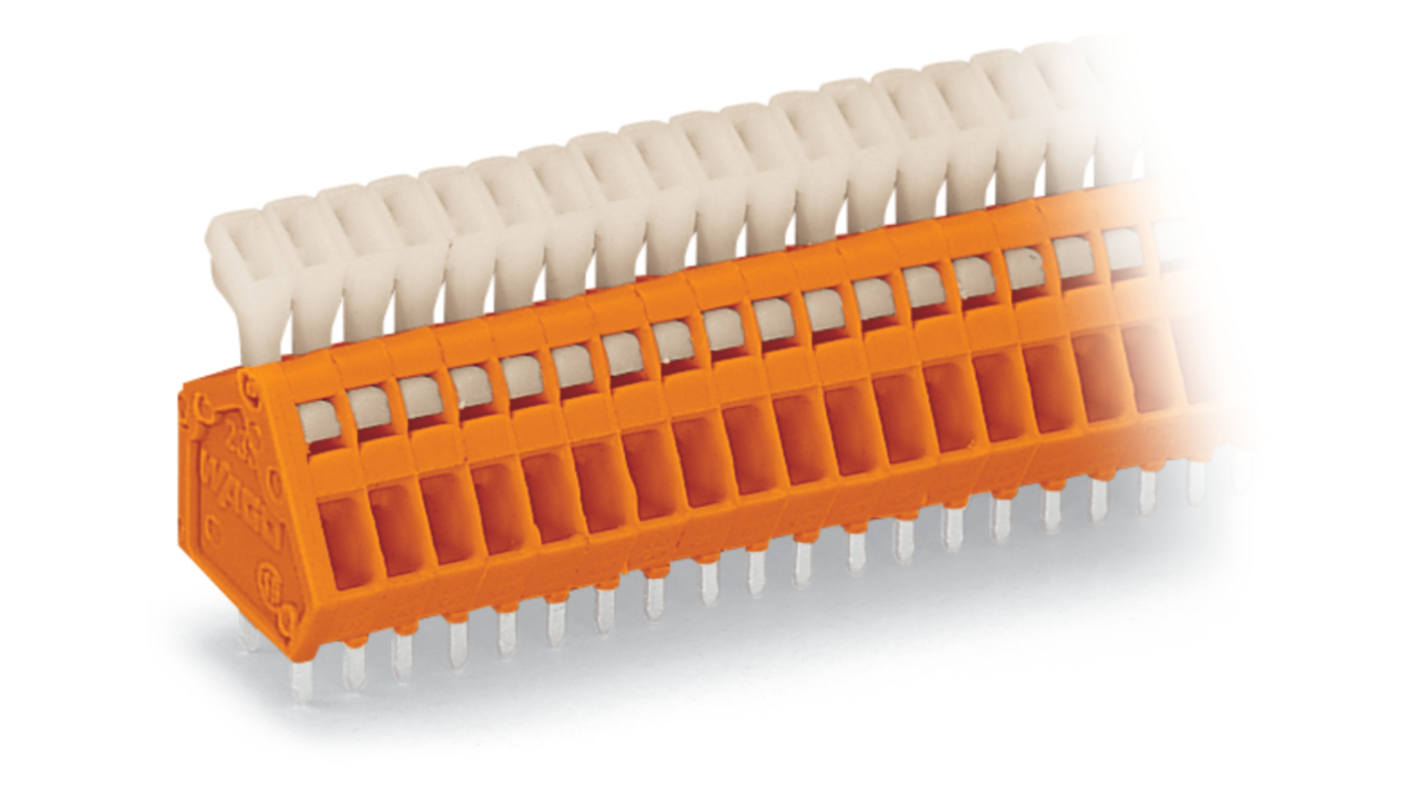

WAGO 233 Series PCB Terminal Block, 8-Contact, 2.54 mm Pitch, 1 Row, 233-508
- RS Stock No.:
- 221-439
- Mfr. Part No.:
- 233-508
- Brand:
- WAGO
Subtotal (1 box of 55 units)*
£182.76
(exc. VAT)
£219.31
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £182.76 | £3.323 |
*price indicative
- RS Stock No.:
- 221-439
- Mfr. Part No.:
- 233-508
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 8 | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 0.75mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 63V | |
| Series | 233 | |
| Width | 22.62mm | |
| Standards/Approvals | No | |
| Depth | 13.9mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 8 | ||
Pitch 2.54mm | ||
Current 6A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 0.75mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 18AWG | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 63V | ||
Series 233 | ||
Width 22.62mm | ||
Standards/Approvals No | ||
Depth 13.9mm | ||
- COO (Country of Origin):
- CH
The Wago PCB Terminal Block with push button functionality revolutionises connectivity with its innovative CAGE CLAMP design. This product is designed for optimal performance, featuring solder pins that ensure high mechanical stability while facilitating easy, tool free actuation. The thoughtfully engineered layout allows for seamless in the field wiring, making it an ideal solution for diverse applications.
Compatible with a range of conductor sizes for versatile applications
The compact design ensures efficient use of PCB space
Meets stringent safety standards for reliable performance
Compliant with RoHS regulations ensuring environmentally friendly use
Supported by extensive approval certifications for added reliability
