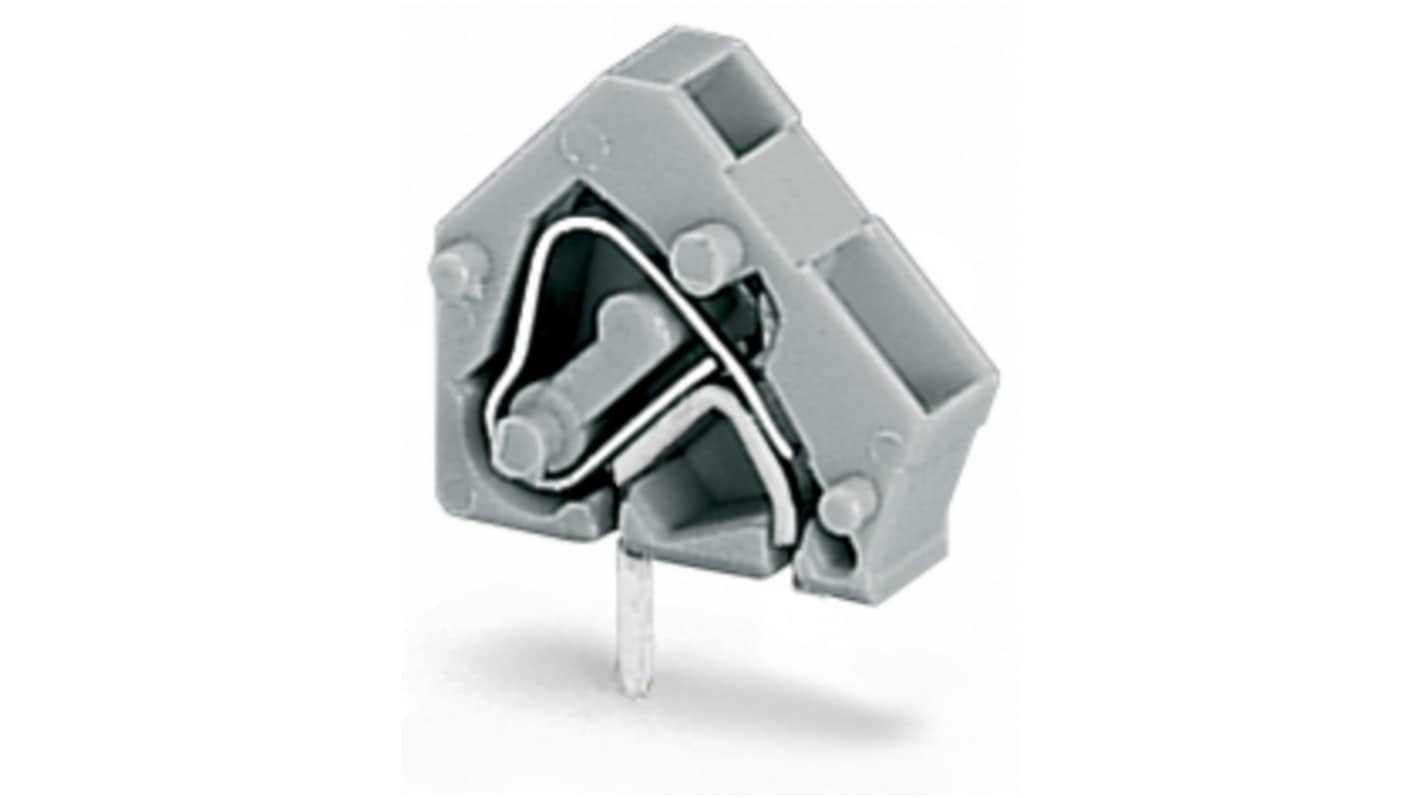

WAGO 236 Series PCB Terminal Block, 1-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-173
- Mfr. Part No.:
- 236-717
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£25.25
(exc. VAT)
£30.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £25.25 | £0.253 |
*price indicative
- RS Stock No.:
- 221-173
- Mfr. Part No.:
- 236-717
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Wire Connection Method | Cage Clamp | |
| Colour | Light Green | |
| Voltage | 25V | |
| Standards/Approvals | No | |
| Width | 7.2mm | |
| Series | 236 | |
| Depth | 14mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Wire Connection Method Cage Clamp | ||
Colour Light Green | ||
Voltage 25V | ||
Standards/Approvals No | ||
Width 7.2mm | ||
Series 236 | ||
Depth 14mm | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block with CAGE CLAMP connection embodies versatility and reliability in a compact design. Catering to a variety of applications, this light green terminal block provides an intuitive solution for connecting conductors effortlessly. With both parallel and perpendicular actuation options, it is designed to accommodate diverse wiring configurations, ensuring ease of use even in constrained spaces. The combination of durable materials, including polyamide and chrome nickel spring steel, guarantees longevity and safety in various operational environments.
Compatible with various end plates for customisation
Manufactured to meet multiple international standards for certified safety
Lightweight design enhances ease of handling and installation
Pre configured for simple assembly and disassembly processes
Utilises environmentally compliant materials that uphold sustainable practices
