WAGO 2604 Series PCB Connector, 1-Contact, 5 mm Pitch, Through Hole, 2 Row
- RS Stock No.:
- 220-849
- Mfr. Part No.:
- 2604-3101
- Brand:
- WAGO
Subtotal (1 box of 290 units)*
£216.75
(exc. VAT)
£260.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £216.75 | £0.747 |
*price indicative
- RS Stock No.:
- 220-849
- Mfr. Part No.:
- 2604-3101
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 5mm | |
| Number of Rows | 2 | |
| Current | 32A | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Voltage | 32V | |
| Standards/Approvals | No | |
| Width | 7.4mm | |
| Length | 7.4mm | |
| Series | 2604 | |
| Depth | 16.7mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 5mm | ||
Number of Rows 2 | ||
Current 32A | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Grey | ||
Voltage 32V | ||
Standards/Approvals No | ||
Width 7.4mm | ||
Length 7.4mm | ||
Series 2604 | ||
Depth 16.7mm | ||
- COO (Country of Origin):
- PL

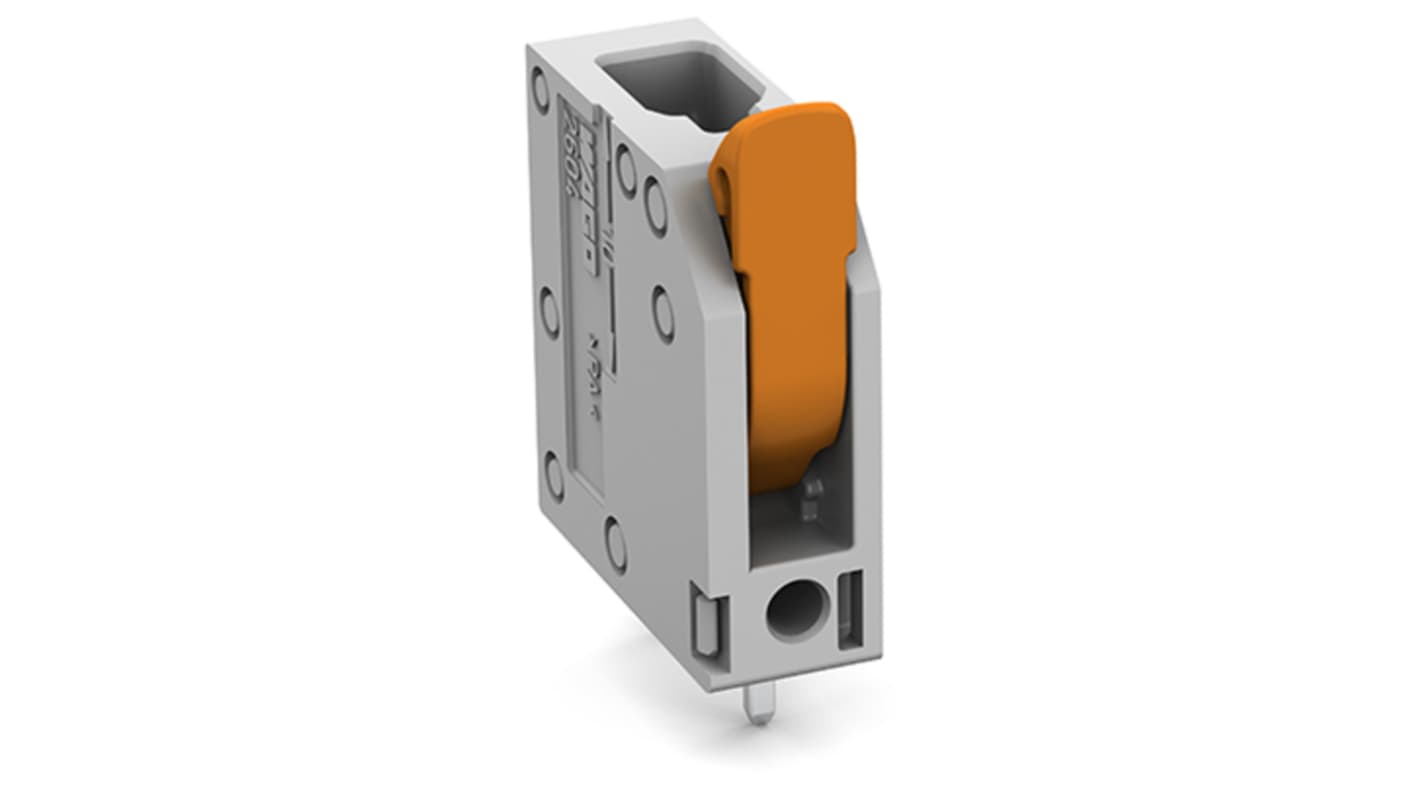

The Wago PCB terminal block is engineered to provide exceptional connectivity in a compact design, featuring innovative Push-in CAGE CLAMP technology. Designed for straightforward integration into your electronic applications, the product boasts a lever actuation that simplifies the connection process. Its robust construction ensures reliability across a range of environments, from standard installations to more demanding railway applications.
Conductors can be connected without complicated installation processes
A narrow profile supports high density PCB layouts
Meets rigorous international safety standards for reliable performance
Compact dimensions enable versatile application across various devices
